Cubix GPU-Xpander Rackmount 6 with 16 PCIe Channels and 2 Double-wide Slots
Estimated Delivery time is from 1 to 2 weeks.

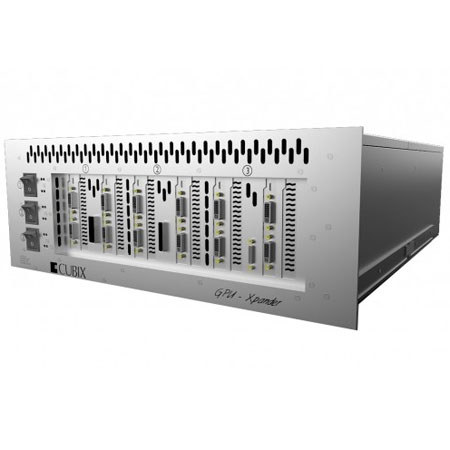

Cubix XPRM-X16-6-OSV GPU-Xpander Rackmount is a 19" rack-mountable PC appliance which provides multiple servers and workstations with between 2 - 16 full-length PCI Express x16 slots, plus multiple, large capacity power supplies and exhaust fans required for operating multiple, high-performance NVIDIA graphics cards or GPU cards.
By connecting Cubix's GPU-Xpander Rackmount to your current rackmount standalone or blade servers, you instantly transform your legacy PC systems into supercomputers for running GPU-accelerated products ranging from scientific research and CAE modeling/simulation software, to the latest high-performance digital content creation, non-linear editing and digital intermediate solutions - dramatically enhancing performance of these applications by as much as 50X-100X beyond the capabilities of today's multi-core CPU technology.
GPU-Xpander Rackmount provides an independent life support system for each server or blade computer, with its own power and cooling, dedicated to the GPUs (as well as other PCI Express-based I/O) themselves.
|Expansion Slots||PCI Express x16, x16 electrical|
|Number of slots||2|
|Form factor support||Double-wide or single-width, full-length, full-height|
|Connecting cables||External PCI Express x16, 136-pin cable
250 mating cycles maximum per connector
Length, standard: 2.00meters (78.74inches or 6.56feet)
Length, optional: 1.00meters (39.37inches or 3.28feet)
Length, optional: 3.00meters (118.11inches or 9.84feet)
|Host Adapter||Install in a PCIe x16 slot
PCIe Gen 2 slot, provides theoretical 80.0Gbps data transfer
PCIe Gen 1 slot, provides theoretical 40.0Gbps data transfer
|Front panel||4 status LEDs|
|System reset||On, system reset; off, normal operation|
|Link OK||On, cable connected; off, cable not connected|
|Power supply good||On, main power on, voltages in spec; off, power off or voltage out of spec|
|Power supply on||On, main power on; off, main power off|
|Rear panel||Power on/off switch and power input receptacle|
|AC power supply||One single-phase, auto-ranging, 100-240VAC, 15-7Amps, 50/60Hz; total output power is not to exceed 1200Watts|
|Operating environment||0deg. to 30deg. Celsius (32deg. to 86deg. Fahrenheit) temperature
5% to 80% non-condensing humidity
|Dimensions (H x W x D)||11.00" x 8.0" x 15.00" (27.94cm x 20.32cm x 38.10cm)|
|Weight||19.60 lbs (7.98kg)|
