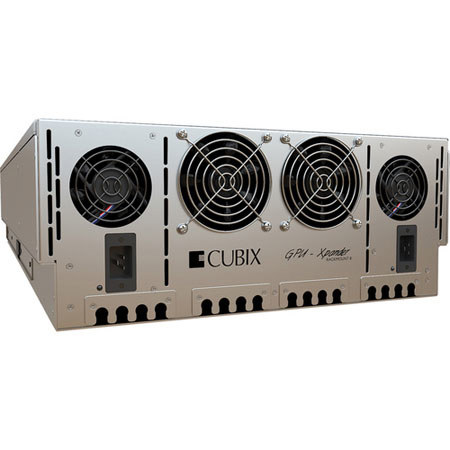

Cubix GPU-Xpander Rackmount 8 with 8 Double Wide Slots and 2x16 Connectors
The Cubix XPRM-X16-82-OSV GPU-Xpander Rack Mount 8 is an economical way to enhance the Input/Output (I/O) power of your rack mounted computers. GPU-Xpander Rack Mount 8 is a hardware-only solution that expands the I/O capability of a rack mount computer by adding slots, power and cooling. Each GPU-Xpander Rack Mount 8 can add 8 PCI Express (PCIe) slots to one to four of your rack mount computers. Add graphics processing units (GPUs) for graphical rendering or for mathematical high-performance computing (HPC) to a computer with GPU-Xpander Rack Mount 8.
Each PCIe slot in each of your rack mount computers can host GPUs within GPU-Xpander Rack Mount 8, which is available in a standard configuration of four pairs of slots and an optional configuration with two sets of 4 slots, shown in the image at the right. You need GPU-Xpander Rack Mount 8 if the hardware and software combination you intend to use runs in your rack mount computers but causes over-current or overheating problems. GPU-Xpander Rack Mount 8 is a hardware-only solution: no software required. It provides its own power supply and cooling; it requires no power from the host computer.
Simply plug the host adapter in your computer's PCIe slot, connect GPU-Xpander Rack Mount 8, install GPUs or other adapters, power up and install device drivers. GPU-Xpander Rack Mount 8 allows you to convert your rack mount tower or blade computer into a workstation-class machine with multiple adapters and controllers for thousands of dollars less per seat than buying a specialized, overpriced GPU-enabled computer. Support includes GPUs, audio and other multi-port IO adapters such as FireWire, USB 2.0 or Gbps Ethernet.
|Expansion slots||PCI Express Generation 2 x16|
|Number of slots (std)||2 slots in each of 8 GPU-Xpander units for a total of 8 slots|
|Form factor support||8 full-height, full-length, double-wide controllers or adapters|
|Connecting cable||External PCI Express cable|
|Cable type, standard||x8, 68-pin to a maximum of 8|
|Cable Length||1.00meters (39.37inches or 3.28feet)|
|Connector duty cycle||250 mating cycles maximum per connector|
|PCIe x8 host adapter||Standard, install in a PCIe x8 or x16 slot|
|PCIe Gen 1 slot||PCIe x16: 20.0Gbps
PCIe x8: 20Gbps
|PCIe Gen 2 slot||PCIe x16: 80Gbps
PCIe x8: 40Gbps
|AC power supply||Two single-phase, auto-ranging, 100-240VAC, 15-7Amps, 50/60Hz; total output power for each is not to exceed 1,200Watts|
|Operating environment||0Deg. to 30Deg. Celsius (32Deg. to 86Deg. Fahrenheit) temperature 5% to 80% non-condensing humidity|
|Dimensions (H x W x D)||7.00" x 19.00" x 25.50" (17.78cm x 48.26cm x 62.23cm)|
|Weight||70.00 lbs (31.75 kg)|
