Cubix 16 Channel GPU-Xpander Desktop Series II
Cubix

Cubix 16 Channel GPU-Xpander Desktop Series II, 4 Single Slots or 2 Dual Slots

SKU: CXXPDT16242 MFR: XPDT-X16-242-OSV
What's Included
What's Included With This Item:
  • Cubix 16 Channel GPU-Xpander Desktop Series II
  • Power Plug
  • PCIe x16 Host Adaptor
  • PCIe x16 Cable 3.28' (1 m)
  • Cubix Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,603.07
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Cubix XPDT-X16-242-OSV

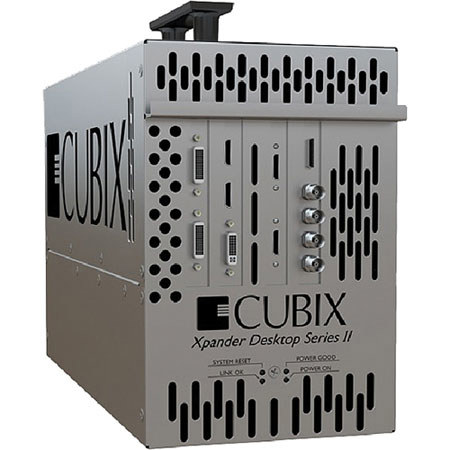

The Cubix 16 Channel GPU-Xpander Desktop Series II supports up to 4 single slot PCIe cards and connects to a computer using 16 cables and a Cubix-supplied host interface card. It supports 2 NVIDIA dual slot cards or other 3rd party I/O cards such as Blackmagic Design DeckLink HD Extreme 3D, RED Rocket, Fusion-IO (SSDs) and many others. With the NVIDIA and Autodesk features, you have the ability to simultaneously process both graphics intensive and computing intensive tasks. You can also run multiple Quadro and Tesla GPUs in one machine.

Cubix XPDT-X16-242-OSV Includes

  • Cubix 16 Channel GPU-Xpander Desktop Series II
  • Power Plug
  • PCIe x16 Host Adaptor
  • PCIe x16 Cable 3.28' (1 m)
  • Cubix Warranty

Cubix XPDT-X16-242-OSV Features

  • Host interface card
  • Required for connectivity to host PC or Mac Pro computer(s)
  • Number of host interface cards matches number of backplanes or "MIBs"
  • All versions feature power supplies with auto ranging voltage compatibility, large exhaust fans
  • 1 PCIe x16 slot gives you 4 additional slots
  • Externally powered
  • Quiet, temperature-controlled, variable speed exhaust fan
  • Supports up to 12 HD-SDI channels per workstation (nVIDIA Quadro DVP)
  • Supports PCIe Gen2's full 80 Gbps bandwidth, both at host and at MIB
  • Base unit of the Cubix GPU-Xpander product line
  • Supports up to 2 double wide nVIDIA graphics cards or supports up to 4 single width, full length industry standard PCIe I/O cards
  • Next-gen replacement for GPU-Xpander Desktop 2

Cubix XPDT-X16-242-OSV Specifications

Supported Graphics Cards 4 single slots or 2 dual slots
Host Interface 4 PCIe expansion slots / host interface card
Supported Workstations 1 Workstations supported / unit (maximum)
Channels 16 PCIe Gen2 channels / HIC
Expansion Slots 2 dual slots or 4 single slots PCI Express x16 (x8 or x16 electrical)
Graphics or IO controllers
nVIDIA Quadro SDI capture, output
nVIDIA Quadro FX 3800 / 4800 / 5800 / 4800 for Mac
Quadro 4000 / 5000 / 6000, Quadro 4000 for Mac
Tesla C2050, C2070, C2075
RED Rocket
USB 2.0 / 3.0 multi ports
10 GB Ethernet (10 GigE) network interface
Host Adaptor PCIe x16 connector standard, optional x8 for Desktop II
Front Panel 4 LEDs for system reset, link ok (cable present), power supply good and power supply on
Rear Panel Power input
Power Single phase, 50/60 Hz, auto ranging, 100-240 VAC, 5.5-3.0 A, 750 W
Dimensions (H x W x D) 11 x 6.125 x 15" (27.94 x15.56 x 38.10 cm)
Weight 17.6 lbs (7.98 kg)
