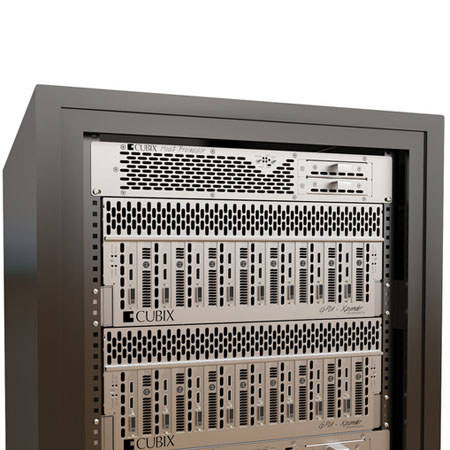

Cubix 16 Channel GPU-Xpander Rack Mount 8, 4x Compute Modules, 4x PCIe Slots

Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

About the Cubix XPRM-X16-844-OSV

The Cubix 16 Channel GPU-Xpander Rack Mount 8 is a Series II, 5U, external PCIe expansion chassis that can support 1-4 server connections with up to 16 graphics processing units. This enables massive parallel calculations independent from the server, thus enhancing system performance and flexibility. The GPU-Xpander Rack Mount 8 allows you to add up to 16.48 teraflops of computational power to your data center.

The GPU-Xpander Rack Mount 8 is specifically certified for use with the Cubix HostEngine, but you can also connect to virtually any host computer with the Cubix host interface controller (HIC). Additionally, as the GPU-Xpander Rack Mount 8 separates parallel processing from the server itself, you have more freedom to allocate server assets to other tasks.

Cubix XPRM-X16-844-OSV Includes

  • Cubix 16 Channel GPU-Xpander Rack Mount 8
  • Power Plug
  • PCIe x16 Host Adaptor
  • PCIe x16 Cable 6.56' (2 m)
  • Cubix Warranty

Cubix XPRM-X16-844-OSV Features

  • Crunch Numbers: You can turn your servers into computing powerhouses that can satisfy your quest for customizable speed by populating the GPU-Xpander Rack Mount 8 with 16 single-wide GPU cards
  • Install Almost any Adapter: The GPU-Xpander Rack Mount 8 is certified for use with the Cubix GPU-Blade server. It also supports almost any PCIe graphics controller or adapter
  • Auxiliary Power Connectors: The GPU-Xpander Rack Mount 8 offers a cost effective solution with more value and flexibility for supporting a variety of GPUs or other controllers or adapters
  • Easy to Own and Operate: The GPU-Xpander Rack Mount 8 PCIe Expansion Chassis is designed to concentrate tremendous computer power in a simple, scalable format that brings improved space, weight and cost-efficiency to your data center
  • GPU-Manager for Microsoft Windows: Cubix GPU-Manager is an application that provides management of graphics processing unit (GPU) clusters in the GPU-Xpander Rack Mount 8 enclosure. The GPU-Manager runs under Microsoft Windows but does not support PCIe devices that are not GPUs
  • Compact Package: The GPU-Xpander Rack Mount 8 Expansion Chassis provides you the flexibility as well as the power and speed you need

Cubix XPRM-X16-844-OSV Specifications

Expansion Slots 4x compute modules 4x PCIe Gen 2 slots each
Supports 1-4 separate Mac Pro workstations in machine room or data centers
External PCIe Connecting Cable x16, 136-pin standard
6.56' (2 m) standard length
250 mating cycles maximum per connector standard for x16 cable
Host Interface Controller PCIe x16 host adapter standard, install in a PCIe x16 slot
PCIe Gen 2 slot provides 80 Gbps theoretical data transfer rate
PCIe Gen 1 slot provides 40 Gbps theoretical data transfer rate
Front Panel Indicators and Switches 1 set of 4 status LEDs per GPU-Xpander unit inside a rack mount enclosure
System Reset: On, system reset; off, normal operation
Link OK: On, cable connected; off, cable not connected
Power Supply Good: On, power on, voltages in spec; off, power off, voltage out of spec
Power Supply On: On, main power on; off, main power off
Rear Panel Power Input Receptacles Receptacle 1, right controls GPU-Xpander units 1 and 2
Receptacle 2, left controls GPU-Xpander units 3 and 4
AC Power Supplies Two single-phase, auto-ranging, 100 - 240 VAC, 15 - 7 Amps, 50 / 60 Hz
Total output power for each is not to exceed 1200 W each
Operating Temperature 32 to 86deg.F (0 to 30deg.C)
Humidity 5 to 80% non-condensing
Dimensions (H x W x D) 7 x 19 x 24.5" (17.78 x 48.26 x 62.23 cm)
Weight 35 lbs (15.87 kg)
