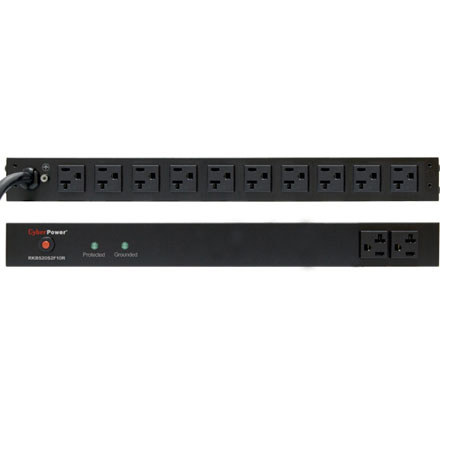

CyberPower 20A 12 Outlet (2 Front and 10 Rear) 1U Rack Mounted Rackbar Surge Suppressor

CyberPower
SKU: CYB20S2F10R MFR: RKBS20S2F10R
CyberPower : Picture 1 thumbnail CyberPower : Picture 2 thumbnail CyberPower : Picture 3 thumbnail

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

$112.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About CyberPower

The CyberPower 12-outlet (2 Front and 10 Rear) rack mounted Rackbar surge suppressor (RKBS20S2F10R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA 5-20P plug. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.

CyberPower Specifications

Rack Size
1U
Input Voltage
120V
Input Frequency
50Hz/60Hz
Maximum Input Current
20A
Input Plug Type
NEMA 5-20P
Input Plug Style
Straight
Input Cord Length
15'
Nominal Output Voltage
120V
Overload Protection
20A
Outlets - Total
12
Outlets - Front
2
Outlets - Rear
10
Outlet Type
NEMA 5-20R
Output LED Indicators
Power On(Green) Grounded (Green)
Surge Suppression
1,800 Joules
Protection Modes
N-H, N-G and H-G
Maximum Surge Current
90,000 Amps
Maximum Surge Voltage
6,000 Volts
Clamping Voltage
N-H 400V, N-G 500V, H-G 400V
Response Time
1 nanosecond
EMI/RFI Filtration
Yes
Attenuation
Up to 50dB
Style
Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported
1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers
Yes
Adjustable Mounting Brackets
2 sets(L-short/L-long)
External Site Ground Pin
Yes
Material of Construction
Metal
Operating Temperature
32 Deg.F to 95 Deg.F / 0 Deg.C to 35 Deg.C
Operating Humidity
0% - 95% non-condensing
Maximum Operating Elevation
10,000 ft / 3,000 m
Storage Temperature
5 Deg.F to 113Deg.F / -15Deg.C to 45 Deg.C
Maximum Storage Elevation
50,000 ft / 15,000 m
Certifications
UL1363 UL1449 certified by ETL(USA), CSA C22.2
Compliant
ROHS Compliant
Dimensions (W x H x D)
1.75 (1U) x 17.5 x 2.25" / 4.44 x 44.45 x 5.71 cm
Weight
4.75 lbs / 2.15 kg
