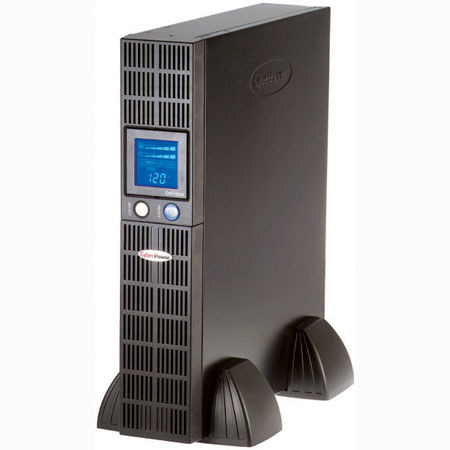

CyberPower OR2200LCDRM2U Smart App Intelligent LCD 2000VA UPS, 8 Outlets, 2U Rack Mount

SKU: CYB2200LCDRM MFR: OR2200LCDRM2U
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$391.13
Qty:

Add to Wishlist

About the CyberPower OR2200LCDRM2U

The CyberPower OR2200LCDRM2U Smart App Intelligent UPS is designed to protect office servers, corporate and departmental networks and network-based appliances. The Intelligent Crystal-Blue LCD diagnostic panel gives administrators immediate, real-time information of the UPS's vitals. LCD diagnostics include AVR Status, Estimated Runtime, Battery Capacity, Load Level, Input & Output Voltage Level, Output Frequency, On-Battery, Overload, Fault and Silent Mode.

The OR2200LCDRM2U houses four (4) 9.0Ah batteries, 8 fulltime battery/surge outlets (NEMA 5-20R) and dual serial ports and has microprocessor-based, fully digital controlled circuitry. Full Automatic Voltage Regulation (AVR) protection with both Boost and Buck ensures that your sensitive electronic equipment receives only clean, consistent, regulated power, without switching to battery-mode. An optional SNMP / HTTP Remote Management adapter (RMCARD100) supports remote management and control of the OR2200LCDRM2U through a standard web browser.

It also is equipped with a RJ11/45 port for modem/network surge protection and a RG-6 port for coax/cable/DSS. Its innovative design allows it to be either freestanding, or rack-mounted (2U). PowerPanel Business Edition software (included) automatically saves and closes open files and shutdowns the PC in an intelligent and orderly manner.

CyberPower OR2200LCDRM2U Includes

  • CyberPower OR2200LCDRM2U Smart App Intelligent LCD 2000VA UPS
  • 2 x Rack Ears
  • 2 x Stands/Legs
  • User Manual
  • Power Management Software
  • Warranty Card
  • Serial Cable
  • Phone Cable
  • USB Cable
  • CyberPower 3 Years Limited Warranty

CyberPower OR2200LCDRM2U Features

  • Intelligent LCD Diagnostic Display: The LCD displays 11 different diagnostics: AVR Status, Estimated Runtime, Battery Capacity, Load Level, Input & Output Voltage Level, Output Frequency, On-Battery, Overload, Fault, Silent Mode and more
  • Automatic Voltage Regulation (AVR)- AVR takes irregular AC power and converts it into a consistent sine wave so sensitive electronic equipment can achieve its optimal performance. This "Boost/Buck" topology will both increase low voltages and decrease high voltages, without switching to battery-mode
  • GreenPower UPS: GreenPower UPS technology significantly reduces UPS energy costs by bypassing the AVR transformer when incoming AC power is clean. This not only dramatically reduces utility consumption, but also reduces heat dissipation and system noise
  • Microprocessor-based Digital Control: Digital routing is maintained through a network of integrated circuitry and discrete values used for internal system processing, which significantly increases efficiency and responsiveness
  • EMI/RFI: Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or "humming" that occurs over telephone lines or stereo electronics
  • USB Connectivity: An HID-compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X
  • Metal Housing: Rigid metal construction allows for placement in areas with a demanding environment
  • Audible Alarms: Audible tones identify when the unit is running off battery power, unit overloads and low battery
  • Resettable Circuit Breaker: Convenient unit reset switch in case of an overload
  • Windows 7 compatible: The Power Management software has been fully tested and is compatible with Windows 200x, Server, XP, Vista and Windows 7

CyberPower OR2200LCDRM2U Specifications

UPS Topology Line-Interactive (AVR)
Energy Saving Yes - GreenPower UPS Bypass Technology
Input Voltage 90V AC - 140V AC
Input Frequency 47Hz - 63Hz
Input Plug Type NEMA 5-20P
Input Plug Style Straight
Input Cord Length 10 feet
Output 2000 VA / 1320 Watts
Automatic Voltage Regulation Yes
On Battery Voltage 120V AC +/- 10%
On Battery Frequency 60Hz +/- 1%
On Battery Waveform Simulated sine wave
Overload Protection Internal circuitry limiting / circuit breaker
Outlet Type NEMA 5-20R
Outlets - Battery & Surge Protected 8
Transfer Time 4ms
Battery Runtime at Half Load (min) 13
Battery Runtime at Full Load (min) 5
Battery Type Sealed lead acid
Battery Size 12V/9AH
Battery User Replaceable Yes
Battery Typical Recharge Time 8 Hours
Replacement Battery BB Battery - BP9-12
Battery Quantity 4
Surge Suppression 1,840 Joules
Maximum Surge Current 13,000 Amps
Phone / Ethernet RJ11 / RJ45 1-In, 1-Out (Combo)
Coax Protection RG6 1-In, 1-Out
Multifunction LCD Diagnostic Display Toggle Status Display includes: Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode
HID Compliant USB Port Yes
Management Cable USB Cable, Serial Cable
Audible Alarms On battery, low battery, overload
Software PowerPanel Business Edition
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD100
Form Factor Rack/Tower
Operating Temperature 32 deg. F to 95 deg. F / 0 deg. C to 35 deg. C
Operating Humidity 0% - 95% non-condensing
Certifications UL1778, cUL 107.1, FCC DOC Class B
ROHS ROHS Compliant
Rack Size 2U
Dimensions (W x H x D) 17.25" x 3.5" x 15.75" / 43.82 x 8.89 x 40.01 cm
Weight 57 lbs / 25.85 kg
