CyberPower

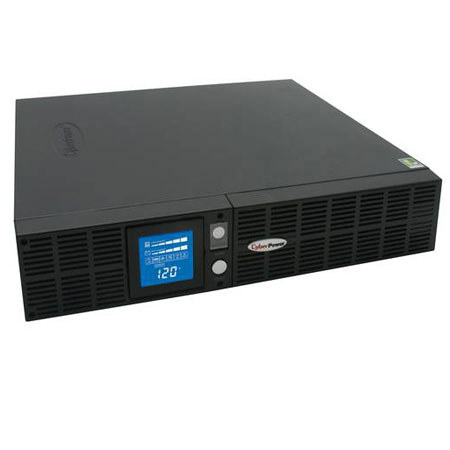

CyberPower PFC Sinewave OR2200PFCRT2Ua 2200VA / 1320W 2U Rack/Tower Pure Sine Wave UPS

SKU: CYBOR2200PFC MFR: OR2200PFCRT2UA
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$436.99 Was
- $4.00 Price Drop

Our Price

$432.99
Qty:

Add to Wishlist

About the CyberPower OR2200PFCRT2Ua

The CyberPower OR2200PFCRT2Ua PFC Sinewave UPS System with pure sine wave output and multifunction LCD safeguards networking hardware, networked-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR qualified with patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

CyberPower's OR2200PFCRT2Ua, with pure sine wave, solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 5.0). With PC manufacturers adopting high-efficiency Active PFC power supplies-your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.

The OR2200PFCRT2Ua unit has a capacity of 2200VA/1320 Watts, eight (8) NEMA 5-20R receptacles and four (4) maintenance-free, user-replaceable 12V/9Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and one (1) DB9 serial port. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.

CyberPower OR2200PFCRT2Ua Features

  • Pure Sine Wave - When operating on battery, the PFC Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity
  • Microprocessor-Based Digital Control - Digital routing is maintained through a network of integrated circuitry and discrete values that are used for internal system processing, which significantly increases efficiency and responsiveness
  • R/T Configuration - The unit can be installed in either a Tower or Rack Mount (2U) configuration
  • AVR - Automatic Voltage Regulation increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment
  • Reduce Energy Cost & Energy Loss - This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
  • EMI/RFI Filters - Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
  • Dual PC Support - The unit has two (2) serial communication ports to connect two PCs or servers, giving the user full control and the ability to prioritize their operation
  • Multifunction Rotatable LCD - UPS battery status and power conditions are easily viewed on this white LCD panel when the UPS is rack mounted or standing as a tower
  • Audible Alarms - Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low
  • Resettable Circuit Breaker - Convenient unit reset switch in case of an overload
  • Metal Housing - Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments

CyberPower OR2200PFCRT2Ua Specifications

UPS Topology Line-Interactive
Energy Saving Yes - GreenPower UPS Bypass Technology
ENERGY STAR Qualified Yes
Input Voltage 90Vac - 139Vac
Input Adjustable Voltage Range 86Vac - 142Vac
Input Automatic Voltage Regulation 14% (line mode)
Input Frequency 47Hz - 63Hz
Input Plug Type NEMA L5-30P
Input Plug Style Straight
Input Cord Length 10'
Output VA 2,200
Output Watts 1,320
Output Automatic Voltage Regulation Yes
On Battery Waveform Sine Wave
On Battery Voltage 120Vac +/- 5%
On Battery Frequency 50/60Hz +/- 1%
Overload Protection Internal circuitry limiting / circuit breaker
Outlets - Battery & Surge Protected 8
Output Transfer Time 4ms
Runtime at Half Load (min) 20
Runtime at Full Load (min) 8
Battery Type Sealed lead-acid
Battery Size 12V/9AH
User Replaceable Yes
Hot-Swappable Yes
Typical Recharge Time 8 Hours
Replacement Battery BB Battery - HR9-12 or Yuasa Battery NPW45-12FR
Battery Quantity 4
Surge Suppression 2,060 Joules
Phone / Ethernet RJ11 / RJ45 1-In, 1-Out (Combo)
Coax Protection RG6 1-In, 1-Out
HID Compliant USB Port Yes
Serial Port Yes
Emergency Power Off (EPO) Port Yes
Management Cable USB Cable, Serial Cable (2)
LED Indicators Power on, wiring fault
Audible Alarms On battery, low battery, overload
Software PowerPanel Business Edition
Rack Size 2U
Form Factor Rack/Tower
Operating Temperature 32 deg.F to 95 deg.F / 0 deg.C to 35 deg.C
Operating Humidity 0% - 90% non-condensing
Dimensions (WxHxD) 17x3.5x15.3" / 43.18x8.89x38.86 cm
Weight 60 lbs / 27.21 kg
