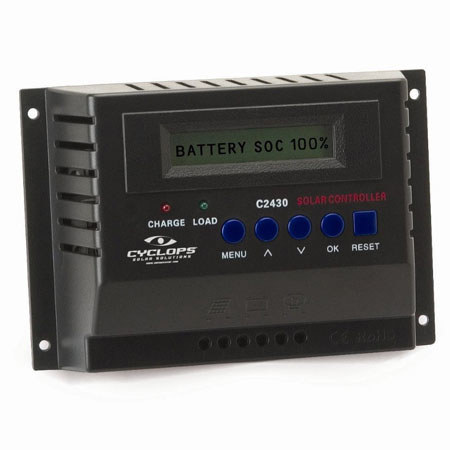

The Cyclops Solar Solutions 30 amp Solar Charge Controller regulates and protects 12/24 V batteries from overcharging, short circuiting, discharging and low voltage. This solar charger offers maintenance-free protection for your solar panel and batteries and is small, compact and easy to mount. It handles up to 30 amp or 400 W of array current and has LED lights that indicate the charging status: Green = Charged, Red = Low Voltage Charging, Orange = Normal Charge.
The LCD screen indicates system temperature, charging/discharging current, battery capacity and voltage of load. This controller is equipped with a blocking diode to prevent reverse polarity of batteries and solar panels. You are able to set your own parameters of load off voltage and load on voltage and it can also be used with gel-cell and lead-acid 12/24 V batteries. It is recommended for use with solar panels that are 12 W and larger.
|Rated Voltage||12V/24V Automatic voltage recognition|
|Max Solar panel Input voltage||12V system = 20V / 24V system=; 40V|
|Max charging/Load current||30A|
|Full charge cut||13.7V/27.4V Default value, can be reset|
|Low voltage cut||10.5V/21V Default value, can be reset|
|No load loss||=20mA|
|Max wire diameter||6 mm2|
|Length =1m Charge loop drop||< 0.25V|
|Length =1m Discharge loop drop||< 0.05V|
|Ambient temperature||-25deg.C - 55deg.C|
|Dimension||164 x 110 x 45 mm / 6.45 x 4.33 x 1.77 inches|
|Weight||500 g / 17.63 oz|
