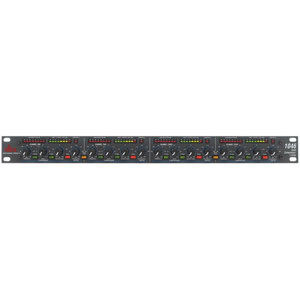

DBX 1046 Quad Compressor Limiter

DBX
SKU: DBX1046 MFR: 1046
DBX : Picture 1 thumbnail DBX : Picture 2 thumbnail

List Price: $662.44

20% Off

Our Price

$529.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About DBX

The dbx 1046 Quad Compressor Limiter is designed to provide the audio professional with four channels of compression for a variety of applications. Incorporating dbx designs and the latest available manufacturing techniques, the unit provides sonic quality with the classic dbx sound.

The 1046 provides four channels of smooth OverEasy or hard knee compression, that can be used on individual tracks of a multitrack recorder, or in virtually any applications that requires separate channels to be individually interfaced and used for entirely independent purposes. Additionally the newly developed PeakStopPlus is ideal for protecting a system from the oppressive peaks that can take out valuable drivers in a sound reinforcement rig.

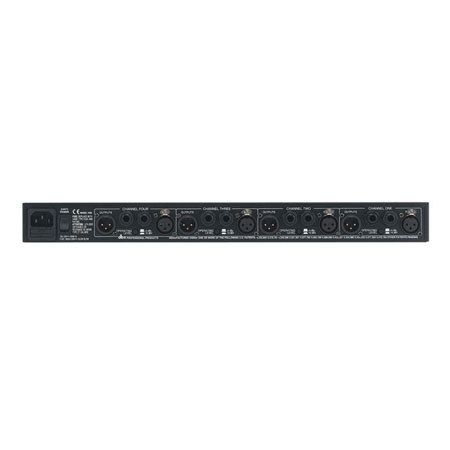

Each channel of the 1046 has a compressor threshold control, a switch to select the character of the compression circuit, ratio control and a gain make-up control. This is followed by the PeakStopPlus control, which sets the level to which the output signal is reduced whenever it exceeds this level. The four channels can also be linked to provide a pair of stereo units and each channel features balanced gold plated XLR and 1/4" inputs and outputs and individually switchable +4dBu or -10dBV operating level to interface each channel with varying devices.

DBX Features

  • Four independent channels of operation, stereo linkable in two pairs
  • PeakStopPlus limiting control for setting maximum allowable level regardless of compressor settings
  • Independent Threshold and ratio controls
  • Switchable OverEasy or Hard Knee compression
  • Classic dbx compression
  • Differentially balanced gold-plated XLR and 1/4" inputs and outputs
  • True RMS level detection
  • Precision metering of input level, output level and gain reduction
  • Dual True stereo or quad mono operation
  • Switchable +4dBu or -10dBV operation per channel

DBX Specifications

Input: Type
Electronically balanced/unbalanced, RF filtered
Input: Connectors
XLR and 1/4" TRS (Pin 2 and tip hot)
Input: Impedance
Balanced > 40 kOhm, unbalanced >20 kOhm
Input: Max Input Level
> +22 dBu balanced or unbalanced
Input: CMRR
Typically >50 dB at 1 kHz
Output: Type
Servo-balanced/unbalanced, RF filtered
Output: Connectors
XLR and 1/4" TRS (Pin 2 and tip hot)
Output: Impedance
Balanced 30 Ohm, unbalanced 15 Ohm
Output: Max Output Level
> +22 dBm balanced, > +20 dBm unbalanced
System Performance: Bandwidth
>20 Hz to 20 kHz, +0/-0.5 dB
System Performance: Frequency Response
>0.35 Hz to 90kHz, +0/-3 dB
System Performance: Noise
< -96 dBu, unweighted, 22 kHz measurement bandwidth
System Performance: Dynamic Range
> 118 dB, unweighted
System Performance: THD+Noise
>0.008% typical at +4 dBu, 1 kHz unity gain
0.08% typical at +20 dBu, 1 kHz, unity gain
< 0.1% any amount of compression up to 40 dB, 1 kHz
System Performance: IMD
< 0.1% SMPTE
System Performance: Crosstalk
< -80 dB 20Hz to 20 kHz
System Performance: Stereo Coupling
True RMS Power Summing
Compressor: Threshold Range
-40 dBu to +20 dBu
Compressor: Ratio
1:1 to infinity:1
Compressor: Threshold Characteristic
Selectable OverEasy or hard knee
Compressor:Attack/Release Characteristic
AutoDynamic
Compressor: Attack Time
Program-dependent
Compressor: Release Time
Program-dependent
Compressor: Output Gain
-20 to +20 dB
Limiter Type
PeakStopPlus two-stage limiter
Limiter: Threshold Range
0 dBu to +24 dBu (off)
Limiter: Ratio
infinity
Limiter: Stage 1
PeakStop brickwall limiter
Limiter: Attack Time
Zero
Limiter: Release Time
Zero
Limiter: Stage 2
Predictive intelligent program limiter
Switches: OverEasy
Activates the OverEasy compression function
Switches: I/O Meter
Switches between monitoring input and output levels on the Input/Output Level meter
Switches: Bypass
Activates the direct input-to-output hard-wire bypass.
Operating Level: Rear panel
Switches the nominal operating level between -10 dBV and +4 dBu simultaneously for both input and output levels
Indicator: Gain Reduction Meter
8 segment LED bar graph at 1, 3, 6, 10, 15, 20, 25 and 30 dB
Indicator: Input/Output Meter
8-segment LED bar graph at -24, -18, -12, -6, 0, +6, +12 and +18 dBu
Indicator: PeakStop
1 LED to indicate PeakStop limiting
Output Transformer
Jensen JT-123-dbx or JT- 11-dbx, BCI RE- 123-dbx or RE-11-dbx
Operating Voltage
Switchable:100-120 VAC 50-60 Hz or 200-240 VAC 50/60 Hz
Power Consumption
20 Watts
Fuse
100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T
Mains Connection
IEC receptacle
Dimensions (H x W xD)
1.75 x19 x9"(4.4cmx48.3cmx20.1cm)
Weight
5.2 lbs. (2.4 kg)
Mfr #
1046
SKU
DBX1046
