DBX 1074 QuadGate Four Channel Noise Gate

SKU: DBX1074 MFR: 1074

Our Price

$529.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $662.44

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Four independent channels of gating
  • Independent key filtering
  • Independent Threshold and Release controls
  • True RMS level detection
  • Stereo Coupling mode
  • Switchable +4dBu or -10dBv operation per channel

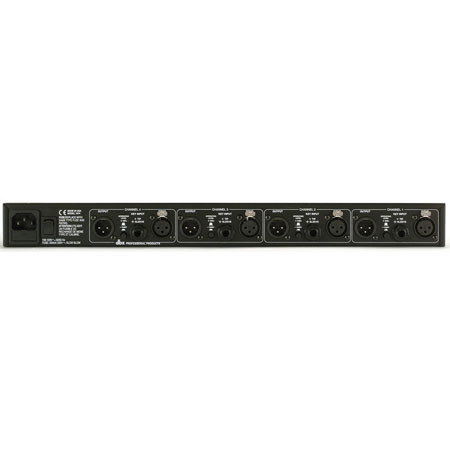

DBX : Picture 1 regular $529.95

About DBX

The dbx 1074 offers four channels of gating with threshold, depth and release controls on each channel and is housed in a single space, rack-mount chassis. The unit is based on the dbx V2 VCA and offers XLR inputs and outputs, 1/4" side-chain input and switchable operating levels to interface each individual channel with any other device.

In addition to an external key input per channel, the 1074 also has an internal filter that can be independently activated and controlled on a per-channel basis. The filter not only allows for cleaning up tracks, but provides frequency selective control on each gate to open exactly when required.

Quad gating applications include gating dry and percussive sounds such as snare drum and kick drum, gating sounds that have longer decay times such as cymbals and pianos, gating hum or buzz from live instruments or recorded tracks, eliminating headphone leakage into microphones and gating instrument microphones to eliminate amplifier bleed.

DBX Features

  • Four independent channels of gating
  • Independent key filtering
  • Independent Threshold and Release controls
  • Differentially balanced gold-plated XLR and 1/4" inputs and outputs
  • True RMS level detection
  • Stereo Coupling mode
  • Switchable +4dBu or -10dBv operation per channel

DBX Specifications

Input: Type
Electronically balanced/unbalanced, RF filtered
Input: Connectors
XLR (Pin 2 and tip hot)
Input: Impedance
Balanced > 50 kOhm, unbalanced >25 kOhm
Input: Maximum Input Level
> +22 dBu balanced or unbalanced
Input: CMRR
40dB: Typically >55 dB at 1 kHz
Input: Key Input
Electronically balanced/unbalanced, RF filtered Balanced 50kOhm, unbalanced > 25 kOhm
Output: Type
Servo-balanced/unbalanced, RF filtered
Output: Connectors
XLR (Pin 2 hot)
Output: Impedance
Balanced 60 Ohm, unbalanced 30 Ohm
Output: Max Output Level
> +22 dBm balanced, > +20 dBm unbalanced
System Performance: Bandwidth
20 Hz to 20 kHz, +0/-0.5 dB
System Performance: Frequency Response
0.35 Hz to 200 kHz, +0/-3 dB
System Performance: Noise
< -96 dBu, unweighted, 22 kHz measurement bandwidth
System Performance: Dynamic range
> 115 dB, unweighted
System Performance: THD + Noise
0.008% typical at +4 dBu, 1 kHz, unity gain,
0.08% typical at +20 dBu, 1 kHz, unity gain,
< 0.1% any amount of compression up to 40 dB, 1 kHz
System Performance: Crosstalk
< -80dB, 20 Hz to 20 kHz
System Performance: Stereo Coupling
True RMS Power Summing
Operating Voltage
100-120 VAC 50-60 Hz or 200-240 VAC 50/60 Hz
Power Consumption
30 Watts
Fuse
100-120 VAC: 300 mA Slow Blow 200-240 VAC 160 mA Type T
Mains Connection
IEC receptacle
Dimensions (H x W xD)
1.7" x19" x9"(4.4cmx48.3cmx20.1cm)
Weight
6.9 lbs./3.129 kg
Mfr #
1074
SKU
DBX1074
