dbx 160A Compressor/Limiter
Your card will only be charged once item ships.
What's Included With This Item:
- dbx 160A Compressor/Limiter
- AC Power Cable
- dbx 2 Years Limited Warranty
The dbx 160A belongs to the dbx 160 family of compressor/limiters. The same classic sound, easy set-up and no compromise metering is now married to an improved signal path and stronger chassis design. The result is industry standard compressor/limiter which is digital-ready and road tough.
Featuring switch-selectable OverEasy and Hard Knee compression curves along with extremely wide-ranging threshold, ratio and output controls, the dbx 160A is up to any task. True RMS level detection provides the most natural-sounding dynamics processing available, from subtle compression to "brick wall" peak limiting. Choose low ratios and OverEasy compression to transparently smooth out fluctuating vocal and instrumental levels or use the 160A's Hard Knee compression and high ratios (up to and beyond:1 and over 60dB gain reduction) for bombproof protection against overload distortion in digital recording, P.A. systems and broadcast signals.
The 160A is fully compatible with +4/-10dB and balanced/ unbalanced systems and its electronically balanced output stage is an outstanding line driver for long cable runs (an output transformer is optional). The 19-segment, switchable input/ output LED metering can be easily calibrated to any operating level. 12-segment gain reduction LEDs provide precise analysis at a glance.
The dbx 160A's unique "INFINITY +" inverse-compression mode actually decreases the audio output level below unity gain when the input exceeds threshold, a real life saver for correcting overbearing vocal choruses and controlling runaway house mix levels. A detector input can be used with an equalizer for de-essing sibilant vocals and selectively smoothing out boomy notes on acoustic guitar and bass. And two 160As can be stereo-coupled to process an entire mix or instruments mic'd in stereo, without shifting the left/right image. Its musical sound, easy operation and unequaled versatility made the original dbx 160 a world standard.
The 160A follows that tradition, while meeting the challenges of a digital world.ent in the mix, or overall characteristics of 4 independent signals or control the gain leveling on a couple of stereo pairs, the dbx 160A is for you.

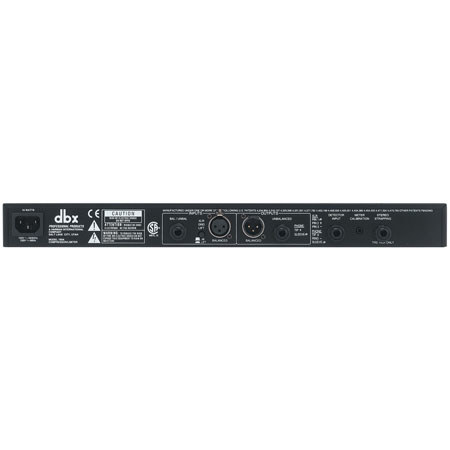

|Input: Connectors||1/4" TRS and XLR, Floating Balanced; XLR: Pin 2 hot Phone: Tip Hot|
|Input: Max Level||+24dBu, Balanced or Unbalanced (Absolute)
+28dBu, Balanced or Unbalanced
(Balanced): +24dBm; <0.3% THD
(Unbalanced): +20dBm; <0.3% THD
|Input: CMRR||>45dB (any Frequency)|
|Detector Input||Connector: 14" TRS phone, Floating Balanced|
|Noise||<-90dBu, Unweighted (20Hz - 20kHz)|
|Frequency Response||20Hz -20kHz, +0, -0.5dB; +0, -3dB 0.5Hz and 90kHz|
|THD||<0.2%, Typical, any amount of compression up to 40dB @ 1kHz|
|Output: Connectors||XLR, floating balanced; pin 2 hot
1/4" TRS phone, Unbalanced
|Output: Impedance||20 ohm
|Threshold Range||-40dBu to +20dBu|
|Threshold Characteristic||OverEasy or hard knee|
|Compression Ratio||Variable 1:1 to:1 thru to -1:1; >60dB maximum compression|
|Attack Time||Program dependent; typically 15ms for 10dB, 5ms for 20dB, 3ms for 30dB|
|Release Time||Program Dependent; Typically 8ms for 1dB, 80ms for 10dB, 400ms for 50dB; 125dB/sec rate|
|Gain Adjustment Range||Variable from -20dB to +20dB|
|Stereo Coupling||True RMS Power summing|
|Summing||1/4" TRS phone jack|
|Power Cord||IEC-type connector|
|Operating Voltage||DO: 90-130VAC, 50/60Hz; EU: 200-250VAC, 50/60Hz|
|Dimensions (H x W x D)||1.75" x 19" x 6.5" (4.45cm x 48.2cm x 16.51cm)|
|Weight||4.452 lbs / 1.99 kg|
