DBX

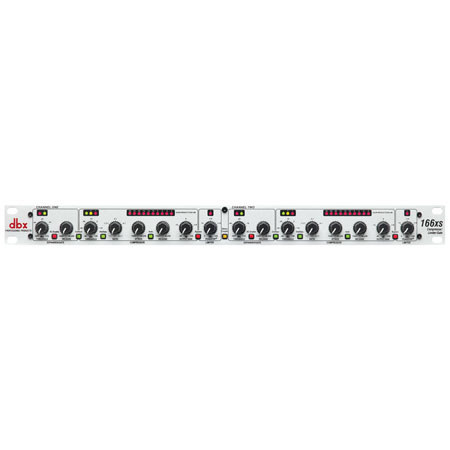

DBX 166xs Compressor/Limiter/Gate

SKU: DBX166XS MFR: 166XS
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$339.95 List Price

Our Price

$239.95 $10 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the DBX 166xs Sound Processing

The dbx 166xs is a dual channel compressor/gate/limiter that when added to a live sound rig or studio gives you more dynamic control to help create a more polished, professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix - adding greater clarity and making them stand out from the surrounding instruments. To protect your amps and speakers, the PeakStop limiter provides an absolute ceiling for peak excursions or large transients that could damage your equipment.

The 166xs is the latest in a long line of the world's most successful compressors from the inventors of the technology. Its patented Overeasy compression technology provides smooth and musical performance while the AutoDynamic attack and release controls, found only on dbx compressors, puts great sound within easy reach. The 166xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4" TRS inputs and outputs. It cuts no corners on visual feedback with gain reduction metering and easy-to-read backlit switches.

DBX 166xs Sound Processing Includes

  • dbx 166xs Compressor/Limiter/Gate
  • AC Power Cable
  • dbx Warranty

DBX 166xs Sound Processing Features

  • Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
  • New gate timing algorithms ensure the smoothest release characteristics
  • Program-adaptive expander/gates
  • Great sounding dynamics control for any type of program material
  • Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
  • Stereo or dual-mono operation
  • Balanced inputs and outputs on 1/4" TRS and XLR connectors
  • Side Chain insert
  • Classic dbx "Auto" mode

DBX 166xs Sound Processing Specifications

Input: Connectors 1/4" TRS, female XLR (pin 2 hot)
Input: Type Electronically balanced/unbalanced, RF filtered
Input: Impedance >50k ohm balanced, >25k ohm unbalanced
Max Input Level >+24dBu, Balanced or Unbalanced
Output: Connectors 1/4" TRS, female XLR (pin 2 hot)
Output: Type Electronically balanced/unbalanced, RF filtered
Output: Impedance 120 ohm balanced, >60 ohm unbalanced
Max Output Level >+21dBu balanced/unbalanced into 2k ohm or greater+18dBm balanced/unbalanced (into 600 ohm)
Sidechain Insert: Connector 1/4" TRS Phone, Normalled: Ring = Output (send); Tip = Input (return)
Sidechain Insert: Impedance Tip = >10k ohm (Input), Ring = 2k ohm (Output)
Sidechain Insert: Max Level >+20dBu (tip/input)+20dBu (ring/output)
Compressor: Threshold Range -40dBu to +20dBu
Compressor: Threshold Characteristic Selectable OverEasy or hard knee
Compressor: Ratio Variable; 1:1 to Infinity:1; 60dB Maximum Compression
Compressor: Attack Time Variable program-dependent; 3ms to 340ms for 15dB gain reduction
Compressor: Release Time Variable program-dependent; 200dB/Sec to 3dB/Sec
Compressor: Manual Release Time Variable program-dependent; 200dB/Sec to 3dB/Sec
Expander/Gate: Threshold Range OFF to +15dBu
Expander/Gate: Expansion Ratio 10:1
Expander/Gate: Maximum Depth >60dB
Expander/Gate: Attack Time <500 microsec (from Maximum Depth)
Expander/Gate: Release Time Adjustable, 30ms to 3sec (to 30dB attenuation)
Peakstop Limiter: Threshold Range 0dBu to +20dBu
Frequency Response 20Hz - 20kHz; +0/-0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain
Noise <-90dBu, 22Hz to 22kHz, no weighting, unity gain
THD + N Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz
SMPTE IMD Typically <0.08% @ +10dBu (15dB Gain reduction)
Dynamic Range >115 dB, unweighted
Interchannel Crosstalk <-80dB, 20Hz to 20kHz
CMRR >40dB, typically >55dB at 1kHz
Stereo Coupling True RMS Power Summing
Power Consumption 15 Watts Maximum
Operating Voltage 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz
Operating Temperature 0 Deg.C to 45 Deg.C (32 Deg.F to 113 Deg.F)
Dimensions (H x D x W) 1.75" x 6.75" x 19" (4.45 cm x 17.15 cm x 48.26 cm )
Weight 5.05 lb (2.29 kg)
