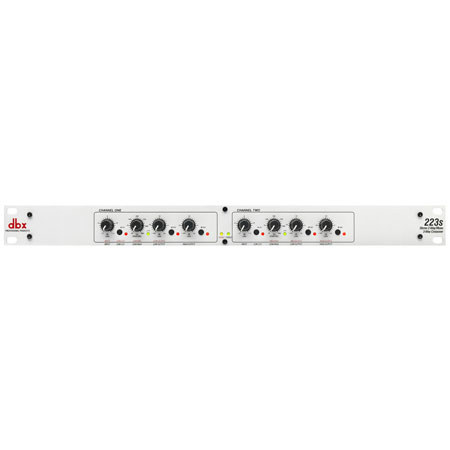

DBX 223s Stereo 2-Way/Mono 3-Way Crossover

SKU: DBX223S MFR: 223S

Our Price

$159.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $199.94

Availability: In Stock & Ready to Ship

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Stereo 2-way, mono 3-way crossover
  • 24dB per octave Linkwitz-Riley filters
  • Low frequency summed (subwoofer) output
  • Range switch on both channels (x10)
  • 40Hz high-pass (low-cut) filter on both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • Stereo/Mono status LEDs indicate the selected mode
DBX : Picture 1 regular $159.95

About DBX

The dbx 223s is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality 1/4" TRS inputs and outputs.

With the dbx 223s Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 223s uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 223s leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

DBX Features

  • Stereo 2-way, mono 3-way crossover
  • Mode switch for stereo 2-way or mono 3-way operation
  • 24dB per octave Linkwitz-Riley filters
  • Low frequency summed (subwoofer) output
  • Range switch on both channels (x10)
  • 40Hz high-pass (low-cut) filter on both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • Stereo/Mono status LEDs indicate the selected mode
  • 1/4" TRS differentially balanced ins and outs
  • CSA NRTL/C approved and CE compliant

DBX Specifications

Input: Connectors
1/4" TRS
Input: Type
Electronically balanced/unbalanced, RF filtered
Input: Impedance
Balanced >50k ohm, unbalanced >25k ohm
Max Input Level
>+22dBu balanced or unbalanced
Output: Connectors
1/4" TRS
Output: Type
Impedance-balanced/unbalanced, RF filtered
Output: Impedance
Balanced 200 ohm, unbalanced 100 ohm
Max Output Level
>+21dBu balanced/unbalanced into 2k ohms or greater
Crossover Frequencies: Stereo Mode
Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Frequencies: Mono Mode
Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Crossover Frequencies: Filter type
Linkwitz-Riley, 24 dB/octave, state-variable
Functional Frequencies: Front Panel
Low Cut: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
Functional Frequencies: Phase Invert
Inverts the phase at the output, one switch per output
Functional Frequencies: Rear Panel
x10: Multiplies the crossover frequency range by 10, one switch per channel
Mode: Selects stereo/mono and 2/3-way operation
LF sum: Selects normal (stereo) or mono-summed low frequency operation
Indicators: Stereo Operation
Green LED
Indicators: Mono Operation
Yellow LED
Indicators: Low Cut
Red LED per channel
Indicators: x10
Green LED per channel
Indicators: Phase Invert
Red LED per output (3 per channel)
System Performance: Bandwidth
20Hz to 20kHz, +0/-0.5dB
System Performance: Frequency Response
< 3Hz to > 90kHz, +0/-3 dB
System Performance: Dynamic Range
>106dB, unweighted, any output
System Performance: THD + Noise
<0.004% at +4dBu, 1kHz
<0.04% at +20dBu, 1 kHz
System: Interchannel Crosstalk
<-80dB, 20Hz to 20kHz
System Performance: CMRR
>40dB, typically >55dB at 1kHz
System Performance: Signal-to-Noise
Ref: +4dBu, 22kHz measurement bandwidth
System Performance: Stereo Mode
>94dB (Low Output)91dB (High Output)
System Performance: Mono Mode
>94dB (Low Output)93dB (Mid Output)91dB (High Output)
Operating Voltage
100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60HZ
Power consumption
15W
Operating Temperature
32 Deg.F to 113 Deg.F (0 Deg.C to 45 Deg.C)
Dimensions (H x D x W)
1.75" x 6.9" x 19" / 4.5 x 17.5 x 48.26 cm
Weight
3.7 lbs. (1.7 kg)
Mfr #
223S
SKU
DBX223S
