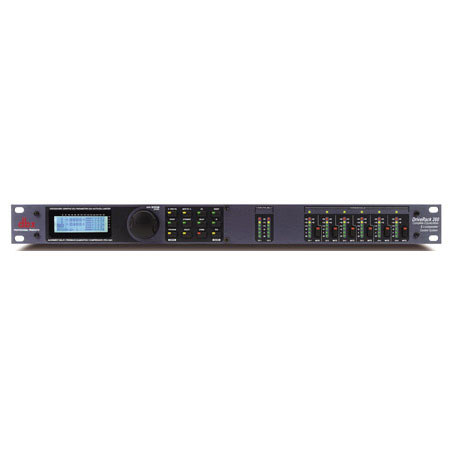

The dbx DriveRack 260 is a processor designed for complete system control of equalization, dynamics and routing possibilities in live or contractor sound applications. Its powerful processing includes both a linkable 28-band graphic and 9-band parametric EQ, while system dynamics are controlled by the built-in compressor. Further component protection is provided by dbx's PeakStopPlus limiters, which helps to protect against too much power and sudden transient spikes.
Before users adjust the EQ, they may want to utilize the internal Pink Noise Generator and Real Time Analyzer to get familiar with the room acoustics. In addition, an easy to assign, flexible alignment time delay and handy 15V phantom powered microphone input is also provided for further room management and control.
The goal of a high-quality control processor is to help "dial in" a room and contribute to the overall system performance without directly interfering with audio integrity. Custom templates are built-in for specific amplifier and speaker combinations with user setups easily adjusted using the Wizard setup system and complete DriveWare GUI control.
An indispensible tool for maximizing audio quality in a number of environments, the DriveRack 260 is derived from an already proven series of processors and continues the tradition of providing flexible system control using simple, intuitive interfaces.
|Inputs: Number of Inputs||(2) Line inputs. (1) RTA Mic input|
|Inputs: Connectors||(2) Female XLR line inputs. XLR RTA Mic input|
|Inputs: Type||Electronically balanced/RF filtered|
|Inputs: Impedance||>40k ohm|
|Maximum Input Level||+30dBu with input jumpers in +30 position|
|Inputs: CMRR||>45 dB|
|Inputs: RTA Mic Phantom Voltage||+15 VDC|
|Inputs: RTA Mic ETN||<-110 dBu, 22 Hz - 22 kHz, 150 ohm|
|Analog Outputs: Number of Outputs||6|
|Analog Outputs: Connectors||Male XLR|
|Analog Outputs: Type||Electronically balanced, RF filtered|
|Analog Outputs: Impedance||120ohm|
|Maximum Output Level||+22dBu|
|A/D Performance: Type||dbx Type IV Conversion System|
|A/D Performance: Dynamic Range line||>114 dB A-weighted, >112 dB unweighted|
|A/D Performance: Type IV dynamic range||>119 dB, A-weighted, 22kHz BW
117 dB, A-weighted, 22kHz BW
|A/D Performance: Sample Rate||48kHz|
|D/A Performance: Dynamic Range||112 dB A-unweighted, 110 dB unweighted|
|System Performance: Dynamic Range||110 dB unweighted, >107 dB weighted|
|System Performance: THD + Noise||0.002% typical at +4 dBu, 1 kHz, 0 dB input gain|
|System Performance: Frequency Response||20 Hz - 20 kHz, +/-0.5 dB|
|System: Interchannel Crosstalk||>110 dB, 120 dB typical|
|System: Crosstalk input-output||>100 dB|
