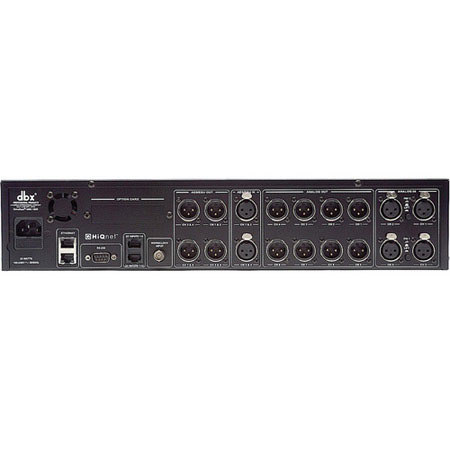

DBX DriveRack 4800TIO Complete Equalization & Loudspeaker Management System with Input & Output Transformers

SKU: DBX4800TIO MFR: 4800TIO
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$8,999.95 List Price

Our Price

$7,899.95
Free Shipping
Qty:
Add to Wishlist

About this item

The dbx DriveRack 4800TIO is a highly configurable signal processing system, for using in touring and large installation applications. With a very powerful DSP engine, multiple analog and digital inputs and outputs and comprehensive insert processing functions, the unit is able to provide every processing function needed "between a mixer and the power amplifiers." This unit features Jensen JT-11 input transformers and Jensen JT-123-dbx output transformers.

Each input features a 31-band graphic EQ, followed by a 9-band parametric equalizer. Two slots are provided for "dropping-in" a range of processors, which are followed by variable time delay circuits. Each input can have the processors linked with adjacent channels, which in turn can access any of the outputs. The output blocks start with variable crossover selections and are followed by a parametric EQ, two insert slots and variable time delays.

The front-panel QVGA display and multiple control surfaces, allow for easy editing of the unit. One knob per function and extensive metering provide an intuitive working flow, while the internal processing provides real-time monitoring of parameter changes with very low latency and excellent sonic performance. An Advanced Feedback Suppression Wizard helps to tame feedback with little sonic degradation of the source signal.

For easier programming, the DriveRack 4800TIO comes with System Architect Control software for Windows XP. All the front-panel controls are mirrored in the software which, in addition, provides networking configuration set-up. From signal routing, EQ and band-pass filters, to classic dbx dynamics and feedback suppression, all the processing needed for tour sound or installation is available within the unit, along with sonic excellence.

What's Included With This Item

  • dbx DriveRack 4800TIO Complete Equalization & Loudspeaker Management System
  • AC Power Cable
  • Ethernet Cable
  • Control Software CD-ROM
  • dbx 5 Years Limited Warranty

Key Features

  • Comprehensive PA and installation signal processor with flexible routing and insert capabilities per channel
  • Four analog and AES/EBU digital inputs
  • Eight analog and AES/EBU digital outputs
  • Features Jensen JT-11 input transformers and Jensen JT-123-dbx output transformers
  • 31-band graphic and 9-band parametric EQ on every input
  • 6-band parametric EQ on every output
  • Selectable DSP inserts on all inputs and outputs including classic dbx compression, limiting and advanced feedback suppression, among others
  • Full band-pass filter, crossover and routing configurations with Bessel, Butterworth and Linkwitz-Riley filters
  • Configurations can be saved in up to fifty preset locations
  • 48kHz and 96kHz operation
  • Color QVGA display
  • System Architect Control software for Windows XP for individual and multiple unit set-ups and networking

Technical Specs

Frequency Response 20Hz to 20kHz, +/-0.25dB
<10Hz to 50kHz, +0/-3dB @ 96kHz
Dynamic Range 110dB unweighted
113dB A-weighted
Input Connections 4 x XLR (analog)
2 x XLR AES/EBU (digital)
1 x BNC Wordclock
1 x XLR RTA Microphone
Output Connections 8 x XLR (analog)
4 x XLR AES/EBU (digital)
Input Impedance >50k ohm
Output Impedance 30 ohm
Maximum Input Level Software selectable for: +28, +26, +24, +22, +20, +18, +16 and +14dBu
Maximum Output Level Software selectable for: +24, +22, +20, +12, +8 and +4dBu
Sample Rate 48 and 96kHz
RTA Mic Phantom Voltage +48V
Crosstalk (Main Outputs) <-85dB @ 1kHz, 0dB input gain
THD & Noise 0.004% typical at +4dBu, 1kHz, 0dB input gain
Dimensions (W x D x H) 19 x 12.15 x 3.5" (483 x 309 x 89 mm)
Weight 14 lbs (6.35 kg)
