DBX

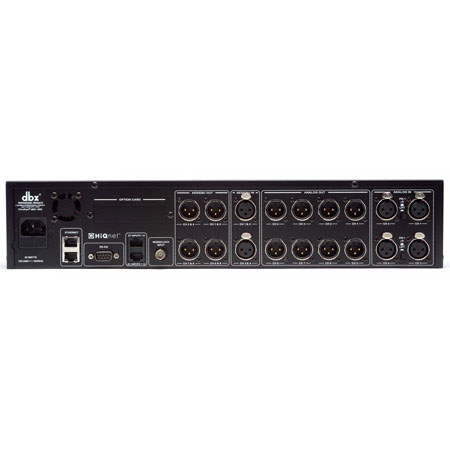

DBX DriveRack 4820TO Complete Equalization and Loudspeaker Management System with Jensen Output Transformers Control Software

SKU: DBX4820TO MFR: 4820TO
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,499.95 List Price

Our Price

$5,399.95
Free Expedited Shipping
Qty:
Add to Wishlist

Protect your investment

About this item

The dbx DriveRack 4820TO is a highly configurable signal processing system that is used in touring and large installation applications. The unit provides all of the DSP functionality of the 4800 with a tamper-proof front panel for secure installation use. With the very powerful DSP engine, multiple analog and digital inputs and outputs and comprehensive insert processing functions, the unit is able to provide every processing function needed "between a mixer and the power amplifiers." This unit features Jensen JT-123-dbx output transformers.

Each input features a 31-band graphic EQ, followed by a 9-band parametric equalizer. Two slots are provided for "dropping-in" a range of processors, which are followed by variable time delay circuits. Each input can have the processors linked with adjacent channels, which in turn can access any of the outputs. The output blocks start with variable crossover selections and are followed by a parametric EQ, two insert slots and variable time delays. An Advanced Feedback Suppression Wizard helps tame feedback with little sonic degradation of the source signal.

Since the unit has no front-panel control, the DriveRack 4820TO comes with System Architect Control software for Windows XP to provide programming duties. All the front-panel controls of the DriveRack 4800 are mirrored in the software, which in addition, provides networking configuration set-up. From signal routing, EQ and band-pass filters, to classic dbx dynamics and feedback suppression, all the processing needed for tour sound or installation is available within the unit along with sonic excellence.

What's Included With This Item

  • dbx DriveRack 4820TO Complete Equalization and Loudspeaker Management System
  • AC Power Cable
  • Null Modem Cable
  • Ethernet Cable
  • Control Software CD-ROM
  • dbx Warranty

Key Features

  • Comprehensive PA and installation signal processor with flexible routing and insert capabilities per channel
  • Offers all the DSP functionality of the 4800 with a tamper-proof front panel for secure installation use
  • Four analog and AES/EBU digital inputs
  • Eight analog and AES/EBU digital outputs
  • Features Jensen JT-123-dbx output transformers
  • 31-band graphic and 9-band parametric EQ on every input
  • 6-band parametric EQ on every output
  • Selectable DSP inserts on all inputs and outputs including classic dbx compression, limiting and advanced feedback suppression, among others
  • Full band-pass filter, crossover and routing configurations with Bessel, Butterworth and Linkwitz-Riley filters
  • Configurations can be saved in up to fifty preset locations
  • 48kHz and 96kHz operation
  • System Architect Control software for Windows XP for individual and multiple unit set-ups and networking

Technical Specs

Frequency Response 20Hz to 20kHz, +/-0.25dB
<10Hz to 50kHz, +0/-3dB @ 96kHz
Dynamic Range 110dB unweighted
113dB A-weighted
Input Connections 4 x XLR (analog)
2 x XLR AES/EBU (digital)
1 x BNC Wordclock
1 x XLR RTA Microphone
Output Connections 8 x XLR (analog)
4 x XLR AES/EBU (digital)
Input Impedance >50kOhm
Output Impedance 30Ohm
Maximum Input Level Software selectable for: +28, +26, +24, +22, +20, +18, +16 and +14dBu
Maximum Output Level Software selectable for: +24, +22, +20, +12, +8 and +4dBu
Sample Rate 48 and 96kHz
RTA Mic Phantom Voltage +48V
Crosstalk (Main Outputs) <-85dB @ 1kHz, 0dB input gain
THD & Noise 0.004% typical at +4dBu, 1kHz, 0dB input gain
Dimensions (W x D x H) 19 x 12.15 x 3.5" (483 x 309 x 89mm)
Weight 14 lbs (6.4 lbs)
