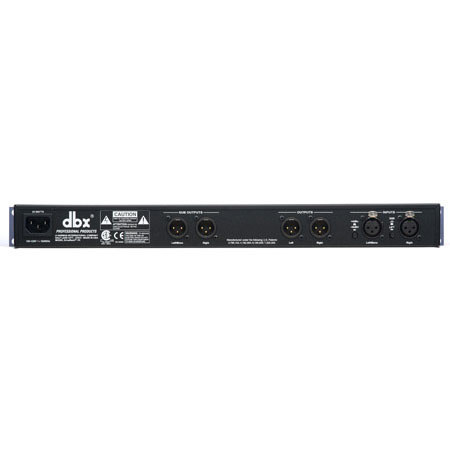

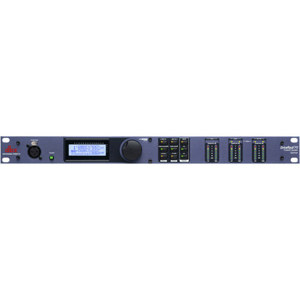

DBX DriveRack PX Powered Speaker Optimizer

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$599.95 List Price

Our Price

$399.95 $16 per week
Free Expedited Shipping
Add to Wishlist

Protect your investment

About this item

The DriveRack PX from dbx is a powered-speaker optimizer containing everything needed to get the most out of a stereo powered speaker system. It provides an effective way to manage all aspects of powered loudspeaker management for public address system applications. With its large compliment of digital processors, the unit could be the only device needed between a mixer and powered speakers.

The processor contains a Real Time Analyzer (RTA) and comes with a dbx M2 measurement microphone. These allow the user to easily optimize a system through the use of the DriveRack PX Wizards for quick and accurate venue setups. For example, the Auto-EQ Wizard automatically adjusts the response of the system by producing pink noise and adjusting the Graphic EQ until the RTA matches a selected response.

Easy to set-up, a patented Advanced Feedback Suppression (AFS) system helps tame nasty feedback and allows for operation at higher sound levels. A sub-harmonic synthesizer extends bass response for enhanced bottom end, while classic dbx compression and PeakPlus limiting keeps levels consistent.

What's Included With This Item

  • dbx DriveRack PX Powered Speaker Optimizer
  • AC Power Cable
  • dbx 2 Years Warranty

Key Features

  • Stereo feedback elimination with twelve feedback notch filters
  • Stereo twenty-eight band graphic EQ
  • Classic dbx compressor
  • 120A sub-harmonic synthesizer
  • Stereo multi-band parametric EQ
  • Stereo PeakPlus limiters
  • Pink noise generator
  • Auto-EQ with twenty-eight band RTA (Real Time Analyser)
  • JBL and other popular powered speakers included in Setup Wizard
  • JBL preset speaker combinations
  • dbx M2 measurement microphone and zippered pouch included
  • Front panel RTA microphone XLR input with phantom power
  • Twenty-five user and twenty-five factory programs
  • 24-bit ADC and DAC with >110dB dynamic range
  • dbx Type IV conversion system
  • Full graphic LCD display

Technical Specs

Number of Inputs 2 (Stereo) Line inputs
1 RTA Mic input Connectors 2 Female XLR line inputs
1 XLR RTA Mic input Type Electronically balanced, RF filtered
Analog Inputs Impedance >40kOhm
Maximum Input Line Level +20dBu
Input CMRR >45dB
Phantom Voltage +15DVC
RTA Mic EIN >-110dBu, 22Hz -22kHz, 150Ohm
Number of Outputs 2 (Stereo) Line outputs
2 Sub outputs (mono or stereo)
Analog Output Connectors Male XLR Line Outputs
2 Male XLR Sub outputs Type Electronically balanced, RF filtered
Analog Output Impedance 120Ohm
Max Output Level +20dBu
A/D Performance Type dbx Type IV Conversion System
A/D Performance: Dynamic Range >110dB A-weighted, 107dB unweighted
A/D Performance: Type IV dynamic range 123dB with transient material, A-weighted, 22kHz BW
121dB with transient material, unweighted, 22kHz BW,
115dB typical with program material, A-weighted, 22kHz BW
A/D Performance: Sample Rate 48kHz
D/A Performance: Dynamic Range 112dB A-weighted, 110dB unweighted
System Performance: Dynamic Range 110dB A-unweighted107dB unweighted
System Performance: THD+N 0.002% typical at +4dBu, 1kHz, 0dB input gain
System Performance: Frequency Response 20Hz -20kHz, +/-0.5dB
System Performance: Crosstalk <-110dB, 120dB typical
System Performance: Crosstalk I/P to O/P <-100dB
