DBX

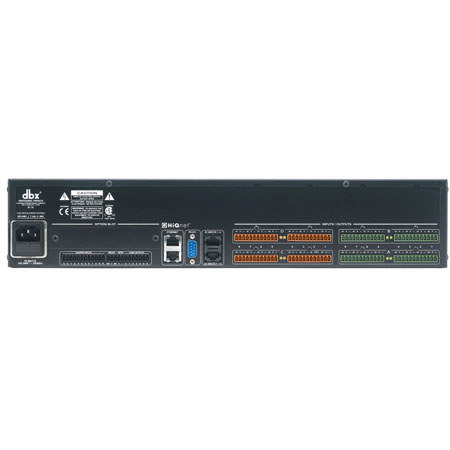

DBX SC 32 32 I/O Digital Matrix Processor, 4 x I/O Cards Chassis Accommodates, 2U Rack Mountable

SKU: DBXSC32 MFR: SC 32
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,656.00 List Price

Our Price

$3,654.95
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The dbx SC 32 Digital Matrix Processor is the new flagship product for Digital Matrix Processing. Wizard driven configuration using HiQnet System Architect makes unprecedented DSP power, incredible routing flexibility and a rich palette of processing tools accessible with the minimum of training. The SC 32 represents the professional choice of foundation on which to build even the most demanding integrated system.

The SC 32 has a total analog I/O count of 32, configurable in banks of eight. The chassis supports up to four analog input and analog output cards facilitating five different fully loaded configurations. Analog input cards accommodate a wide range of sources with mic/line switching and phantom power per input. A High Speed Option slot provides facility for adding forthcoming high bandwidth audio transport I/O cards. All of these features are housed in a sleek 2U rack chassis.

With dedicated DSP for common processing functions and insert positions for specialized processing, the SC 32 offers many processing functions including Advanced Feedback Suppression (AFS), Ambient Noise Compensation (ANC), priority ducking, parametric equalization (PEQ), delay and dynamics. The SC 32 has a diverse range of control options including HiQnet System Architect custom control panels, Ethernet, serial, contact closure, the popular ZC wall controllers and even automatically scheduled events. With so many methods of control, an SC system can truly be tailored to suit the needs and technical expertise of even the scrutinizing contractor.

Key Features

  • 32 channels of analog I/O configurable in banks of 8
  • 8 Mic/Line inputs and Phantom Power per channel on Analog Input Cards
  • High Speed Option Slot
  • Ethernet / Serial Control
  • Control Inputs and Logic Outputs
  • Pre-configured Architecture
  • Selectable DSP inserts on inputs and outputs including Advanced Feedback Suppression (AFS), Automatic Gain Compensation (AGC), Compression, De-Essing and Notch Parametric Equalization
  • Complete routing flexibility
  • Comprehensive configuration, control and monitoring from HiQnet System Architect
  • Wizard Configuration
  • Events Scheduler
  • Optional Media Engine for media playback
  • ZC wall panel control

Technical Specs

Analog Inputs: Number of Inputs (8) per Input Card
Analog Inputs: Connectors Phoenix/Combicon
Analog Inputs: Mic/Line Inputs Nominal Gain 0 dB, electronically switchable up to +48 dB, in 6 dB steps
Analog Inputs: Type Electronically balanced, RF filtered
Analog Inputs: Impedance 3.5 k ohm
Analog Inputs: Maximum Input Level +22dBu
Analog Inputs: CMRR >40 dB typical, >55 dB at 1 kHz
Analog Inputs: Phantom Power +48 VDC, selectable per input
Analog Outputs: Number of Outputs (8) per Output Card
Analog Outputs: Connectors Phoenix/Combicon
Analog Outputs: Type Electronically balanced, RF filtered
Analog Outputs: Impedance 44 ohm
Analog Outputs: Max Output Level +20dBu
System Performance: Dynamic Range 107 dB unweighted, 110 dB A-weighted
System Performance: Internal Processing 32 bit floating point
System Performance: THD + Noise 0.004% typical at +4 dBu, 1 kHz, 0 dB input gain
System Performance: Frequency Response 20 Hz- 20 kHz, +/-0.50 dB
System Performance: Sample Rate 48 kHz
Control Ports: Control Voltage Input 8 Inputs and 6 Outputs
0 to 4.5v
Control Ports: Control Line Impedance 4.7 k ohm to +5V (2-wire mode), >1M ohm (3-wire mode)
0 or +5V unloaded
Control Ports: Logic Output Voltage 0 or +5V unloaded
Control Ports: Logic Output Impedance 440 ohm
Control Ports: Logic Output Current 10mA source, 60mA sink
Watchdog Output: Output Current Phoenix/Combicon for failsafe control Opto-isolated
14mA maximum
Watchdog Output: Withstanding voltage 80V maximum (off)
Watchdog Output: Series Impedance 220 ohm (isolated)
I/P Signal Processing: EQ Type 9 Band Parametric
I/P Signal Processing: Gate Downward Expander
I/P Signal Processing: Insert Two selectable Input Processing blocks per input
I/P Signal Processing: Type Wire, Advanced Feedback Suppression, Automatic Gain Control, Compressor
De-Esser, Sub-Harmonic Synthesizer
I/P Signal Processing: Ducker Eight level priority ducker
O/P Signal Processing: Routing/Mixing 32x1 mixer on every output zone
O/P Signal Processing: Insert Processing One selectable Output Processing block per output.
O/P Signal Processing: Type Gain, Automatic Gain Control, Ambient Noise Compensation, Auto-Warmth
O/P Signal Processing: Bandpass Configurations: 1x1, 1x2, 1x3, 1x4, 2x2, 2x4, 2x6 and 2x8
O/P Signal Processing: Types Bessel 6, 12, 18 and 24 dB/Octave
Butterworth 6, 12, 18 and 24 dB/Octave
Linkwitz-Riley 12 and 24 dB/Octave
O/P Signal Processing: EQ Type 6 Band Parametric
O/P Signal Processing: Limiter dbx PeakStopPlus
Control Ethernet, RS-232, Optional dbx ZC Wall Panels
Power Requirements 100V to 240V 50/60Hz, 120 Watts
Withstanding voltage 80V maximum (off)
Dimensions 1.75" x 19" x 15" / 4.45 x 48.26 x 38.1 cm
