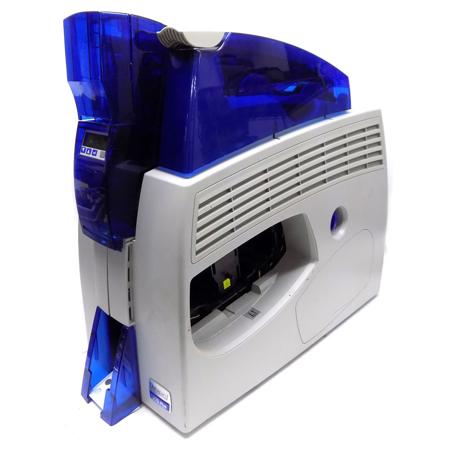

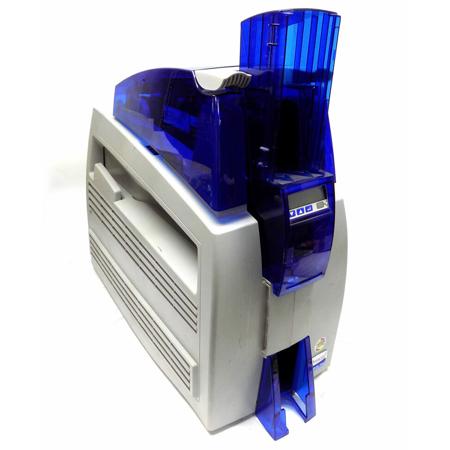

Datacard SP75 Plus Security ID Card Printer with IAT Magstripe, Single-Sided Laminator & Ethernet Interface

See all Datacard items
SKU: DCSP75IATM MFR: 573590002
Datacard SP75 Plus Security ID Card Printer with IAT Magstripe, Single-Sided Laminator & Ethernet Interface

About Datacard SP75

The Datacard SP75 Plus printer with IAT Magstripe can be configured with one standard laminator. It can apply Datacard DuraGard virtual edge-to-edge laminates that cover 95% of the card to increase security and durability. With single laminator, you can apply any combination of security laminates or protective topcoats in a single pass, or apply different laminates to each. This printer makes it easy to print a variety of secure IDs. You can also take advantage of vivid, full-color output or single-color printing.

Datacard SP75 Features

  • Ultraviolet fluorescent printing: Strengthen card security with variable text ultraviolet (UV) fluorescent printing. Fluorescent text can be seen only under UV light, which makes it easy to validate the authenticity of the card and severely hinders any attempt at forgery
  • USB and Ethernet connectivity: Plug this printer into a computer and start issuing cards in minutes with your choice of USB or 10/100 Base-T Ethernet connectivity, both of which come standard
  • Quick-change supplies: The SP75 Plus printer makes it fast and easy to print many different kinds of secure IDs with quick-change, error-free ribbon loading, as well as laminate and topcoat cartridges that can be replaced in seconds

Datacard SP75 Specifications

Print resolution
300 dots per inch, 256 shades
Magnetic stripe encoding
ISO: IAT
Dual high and low coercivity
Tracks 1, 2 and 3
Electrical requirements
Dual voltage auto-sensing: 100/120V, 50/60 Hz
220/240V, 50/60 Hz
Plastic cards accepted
ISO ID-1/CR-80 size cards: 3.370 in. x 2.125 in (85.6mm x 53.98mm)
PVC with glossy laminate surface Other core materials with PVC overlaminates are optional
Card thickness accepted (±10%)
Print only: 0.02 to 0.05 in(0.51mm to 1.27mm)
Print and laminate: 0.03 to 0.05 in(0.76mm to 1.27mm)
Operating environment
60deg.F to 95deg.F (15deg.C to 35deg.C)
20% to 80% non-condensing humidity
Storage conditions
5deg.F to 140deg.F (-15deg.C to 60deg.C)
10% to 90% humidity
Operating system support
Microsoft Windows Vista
Windows XP, Windows 2003 Server and Windows 2008 Server supported on printer driver version 4.0
Windows 2000 supported by printer driver version 2.0
Datacard Open Platform printer driver for non-Windows platforms
Agency approvals
UL, cUL, FCC, CE, CCC, Ctick, RoHS
Dimensions (L x W x H)
23.1 x 99.2 x 18.82 to 23.52"(58.67 x 251.96 x 47.80 to 59.74 cm)
Weight
27 lbs (12.24 kg)
