Dell 1610HD DLP Projector, 3500 ANSI Lumens, WXGA 1280x800 Native Resolution, 2100:1 Contrast Ratio, 16:10 Aspect Ratio, 1.2m-10m Projection Distance

Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $54.95
  • New Leaf 5 Year Extended Warranty + $86.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $134.95
Top Rated Gear

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

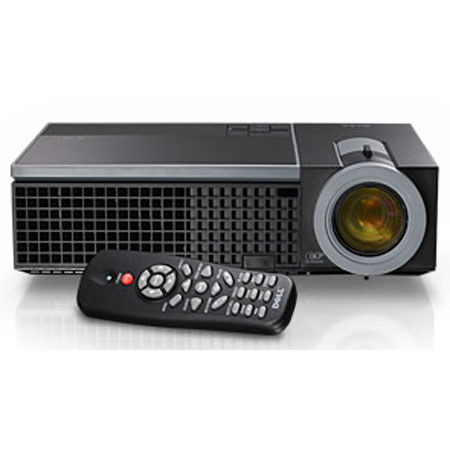

About Dell 1610HD

From class rooms to boardrooms, the Dell 1610HD DLP Projector delivers brilliant value that you can literally see. This projector offers advanced features and network manageability at a price that respects your budget. From built-in wired networking to flexible setup and maintenance, the Dell 1610HD Projector puts control in the hands of presenters and administrators alike. The Dell 1610HD Projector offers thoughtful design features and comprehensive support options that make it easy to enjoy a low total cost of ownership.

Dell 1610HD Features

  • Stunning Resolution: WXGA (1280x800) native resolution for up to 30% more pixels than XGA (1024x768)
  • Wired Networking: RJ45 connector for network manageability, including power management, updating firmware, checking status, receiving e-mail alerts and more
  • Brightness Redefined: Up to 3,500 ANSI lumens (max)
  • Exceptional Brightness & Contrast: 3,500 ANSI lumens (max) brightness and high 2100:1 typical (full on/full off) contrast ratio help to ensure that your presentations retain their impact in a wide variety of rooms and ambient-light conditions
  • Riveting Resolution: 2000 WXGA (1280x800) native resolution with native 16:10 aspect ratio offers superb image quality with up to 30 percent more pixels than XGA (1024x768)1 and high-definition viewing at 720p
  • Dazzling Colors: Equipped with DLP and BrilliantColor technology, the 1610HD Value Series Projector will amaze audiences with deep, dazzling colors and sharp image quality
  • Big-Picture View A diagonal 362-inch maximum projection size at 32.81 feet (10m) (projector-to-screen distance) helps to ensure that all your ideas play on a grand stage
  • Remote Management: Using RJ45 connectivity, administrators can remotely control power (on/off), perform maintenance, update firmware and set up e-mail alerts
  • Flexible Connectivity: The 1610HD Value Series Projector offers multiple connectivity options to enhance multimedia presentations, including a USB port, a HDMI connector, a microphone port and dual VGA connections that enable seamless transitions between presenters
  • Closed-Captioning: Built-in closed-captioning2 capability allows users with hearing disabilities to read the audio portion of select video and TV programs as on-screen text
  • Versatile Setup: Desktop and ceiling mount (front and rear projection) options offer enhanced versatility during projector setup
  • Power-Saving Design: The EuP-compliant 1610HD consumes less than 1 watt of electricity in standby mode
  • Built-In Security: Password protection and a security-cable slot (security cable sold separately) help guard against mischief and thwart any unauthorized access to the projector
  • Long Lamp Life: Enjoy added cost savings with a long lamp life of up to 3000 hours (Typical-Mode) and up to 4000 hours (Eco Mode)

Dell 1610HD Specifications

3500 ANSI Lumens (Max.)
Contrast Ratio
2100:1 Typical (Full On / Full Off)
WXGA (1280 x 800)
85% Typical (Japan Standard - JBMA)
Projection Lens
F-Stop: F/2.4-2.66
Image Size
92.20 - 919.48 cm (36.3" - 362") (diagonal)
Projection Distance
1.2m - 10m
Set Up
3D - Enabled
Lamp Life Cycle
Up to 3000-hour Typical
Up to 4000-hour Eco-Mode
Lamp Type
Philips E20.9 225W
Keystone Correction
Vertical: +40deg. / -35deg.
Audio and Speakers
Multimedia Audio:8W Speaker
Power: AC power input socket
Computer Input: 2 x D-sub for analog/RGB component, HDTV input signals
Computer Output: 1 x 15-pin D-sub
Video Input: 1 x composite video RCA and 1 x S-video
USB Input: 1 x USB slave for remote support and firmware upgrade
Audio input: 1 x phone jack (Diameter 3.5mm) and 1 x pair of RCA connector; 1 x microphone input
HDMI Input: 1 x HDMI 1.3 (HDCP compliant)
RS232: 1 x mini-DIN RS232 for wired remote projector control from PC
Video Compatibility
S-Video/Composite Video: NTSC [J, M, 4.43, supports Closed Captioning (CC1-CC4)], PAL (B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, K1, L)
Component Video (via VGA) & HDMI (HDCP Compliant) - 480i/p, 576i/p, 720p, 1080i/p PC (VGA, HDMI): Refer to 3.10 Computer Compatibility Modes
Universal AC 100-240 50-60Hz with PFC input
Power Consumption
Normal mode: 287W +/-10% @110Vac(Network On); 275W +/-10% @220Vac(Network On)
Eco mode: 219W +/-10% @110Vac(Network On); 212W +/-10% @220Vac(Network On)
Power saving mode: less than 15W (Network On, fan speed at minimum)
Standby mode: less than 1W (Network Off & VGA_OUT off)
Operating Temperature
5deg.C - 35deg.C (41deg.F - 95deg.F)
Humidity: 80% (maximum)
Storage Temperature
0deg.C - 60deg.C (32deg.F - 140deg.F)
Humidity: 90% (maximum)
Dimensions (W x D x H)
11.68x7.96x3.46 ± 0.04" / 296.67x202.18x87.88 ± 1.02mm
5.2 lbs / 2.36 kg

Dell 1610HD Reviews

Reviewed by 2 customers


Easy setup


from campbellsville  -  Casual User

We replaced our projector that had been struck by lightning. This one went up seamlessly and is working great. Easy to operate. Great qaulity




from TUSTIN,CA  -  Power User



Questions & Answers Powered by TurnTo®

Questions about this item:

Stacy W  Does this come with a bulb too?
ROBERT B  no, that would really be a deal! For it's class this is a great projector!
andy s  How good is the 3D on this item?I`m looking for a good 3D projector.
Andrew R  Unfortunately, the manufacturer does not indicate that this unit is 3D capable.
