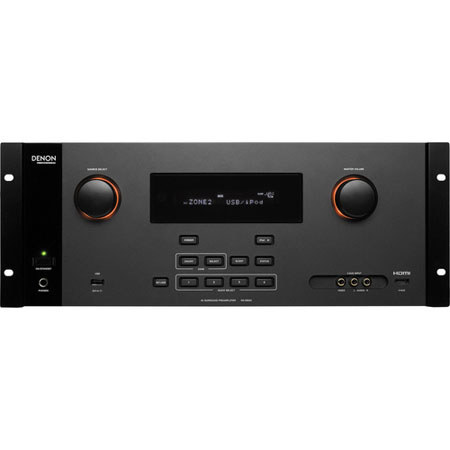

The Denon DN-500AV surround-sound pre-amplifier replaces the hugely successful Denon Professional DNA7100 as the brand's high quality 7.1 surround sound and zoning pre-amplifier. As well as up to the minute audio and video specification, the new DN-500AV also has a raft of features including network and USB inputs for audio streaming and a convenient HDMI input on the front for portable video equipment input.
Mounted in a 19" rack mount as standard, the unit features composite/(S), component and 6 HDMI 1.4a inputs routed to a single HDMI output and 8 XLR audio outputs for routing to power amplifiers or an active monitor system. As well as the video sources, audio files can be played back from the USB input or from a network drive via Ethernet. Processing audio using Dolby Pro Logic IIZ, Dolby True HD and DTS HD Master Audio ensures all major surround sound formats are accommodated and the option of up-scaling ensures that the composite and HDMI sources are output with the best possible visual quality. Remote control can take place via the RS232 port, over IP or using the included IR remote control.
The convenience of the inputs, quality of the output, ease of use and Denon Professional reliability make this the perfect tool for all high quality installations requiring high quality surround sound decoding, from boardrooms, preview theatres and lecture theatres through to recording and mixing studio and luxury yachts.
|Frequency response||10Hz - 100kHz (+1--3dB) (DIRECT mode)|
|Signal-to-noise Ratio||100 dB (IHF-A weighted, DIRECT mode)|
|Total Harmonic Distortion||0.01%|
|Analog input: Balanced XLR Type||XLR (1:GND, 2:Hot, 3:Cold)|
|Analog input: Sensitivity / impedance||400mV / 4.3 kOhms (0dB) (at +4dBu)|
|Unbalanced RCA Type||RCA terminal|
|Unbalanced RCA: Sensitivity / impedance||200mV / 47 kOhms (0dB)|
|Analog Output Level: Balanced XLR Type||XLR (1:GND, 2:Hot, 3:Cold)|
|Analog Output Level: Balanced XLR Level||318mV rms typ. (0dB) (at +4dBu)
80mV rms typ. (0dB) (at -10dBV)
|Input / output level and impedance||1Vp-p / 75 Ohms|
|Standard video: Frequency response||5Hz - 10MHz (0--3dB)|
|Power requirement||AC120V, 60 Hz (U.S.A. and Canada models)
AC230V, 50/60 Hz (EU, U.K. and Asia/Pacific models)
|Power consumption||35 W|
