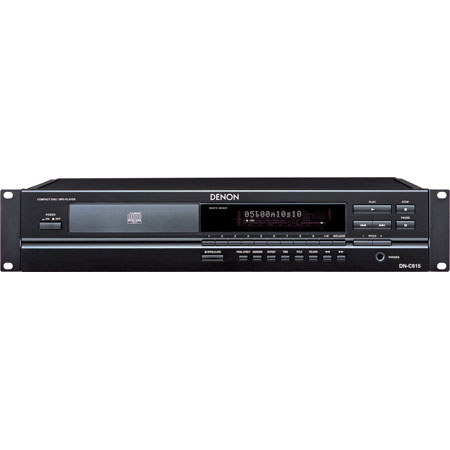

The DN-C615 is a professional CD player housed in a single 2RU rack-mount chassis that offers CD-R/RW playback compatibility as well as MP3 decoding. A user adjustable menu is provided to allow custom tailoring the unit to a particular application. Designed for use in a wide range of applications such as schools, restaurants, aerobic studios and backup systems, the unit provides solid performance.
Other functions of the DN-C615 include the ability to vary pitch by up to ±12% of playback speed along with a single/continuous playback mode. CD text is supported. Shock memory prevents skipping, while instant start and Auto Cue to music insures there are no blank spots at the beginning of the track to be played. Direct track access is provided through an 11-key keypad.
A digital SPDIF port is located on the back panel of the DN-C615 for direct connection to a digital system. Digital servo adjustment has been automated so that the optimum setting is always obtained for the type of CD being played, compensating for any changes occurring in the pickup over years of use. Firmware upgrades will be available via CD-ROM.
|Compatible Discs||Red Book CD and CD-R/RW|
|Supported Bit/Sample Rates||16-bit/44.1kHz|
|D to A Converters||8x oversampling digital filter|
|Frequency Response||20Hz to 20kHz|
|Signal-to-Noise Ratio||107dB A-weighted|
|Total Harmonic Distortion (THD)||0.007% or less|
|Output Connectors||2 x RCA phono unbalanced analog
1 x RCA S/PDIF coaxial digital
|Specialties||Synchro Recording to the DN-780R via RCA In/Out
Cascade connectors for use with multiple DN-C615 units
|Remote Control||Optional (RC-620 wired remote control)|
|Dimensions (H x W x D)||3 1/2" x 19" x 11" (88.9 x 482.6 x 279.4mm)|
