Denecke SB-T Time Code Generator / Reader and Tri-Level Sync Box

SKU: DESBT MFR: SB-T

Our Price

$997.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Special Order Item Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Cross jam regardless of incoming frame rates
  • Optional 5 pin Lemo socket instead of 4 pin Hirose
  • Low and Dead Battery warning

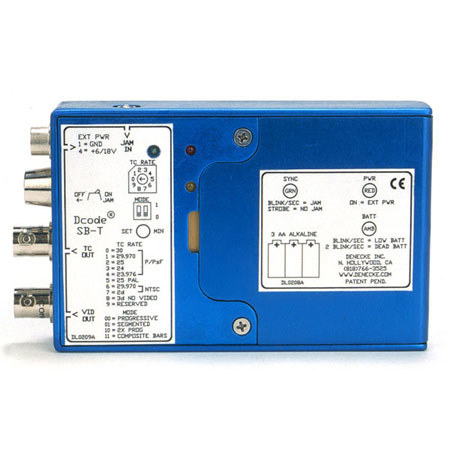

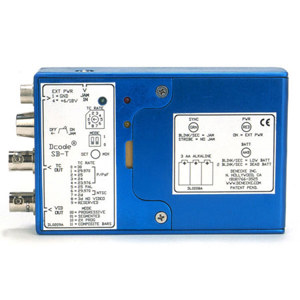

Denecke SB-T: Picture 1 regular $997.50

About Denecke SB-T

The Deneke Dcode SB-T reads, generates and jams Time Code to all the standard frame rates including 23.976 for High Definition Video. The outputs include Time Code and Video Sync in PAL and NTSC, as well as Trilevel for HD shoots. The Temperature Compensated Crystal Oscillator (TCXO) ensures low drift. High stability and ease of use makes it a welcome addition to any Hi Def or Standard Def shoot.

Denecke SB-T Features

  • Generates Trilevel Sync in all 1920 X 1080 & 1280 X 720 formats, composite PAL and NTSC, as well as all standard Time Code rates
  • Jam from an external source or set it internally and use as a stand alone generator
  • Run on 3 AA batteries or power externally through a 4 pin Hirose plug and use the AA batteries as a backup when the camera is powered down
  • Continuously jams to new code so there is no need to power down the unit to re-jam
  • Cross jam regardless of incoming frame rates
  • Optional 5 pin Lemo socket instead of 4 pin Hirose
  • Low and Dead Battery warning

Denecke SB-T Specifications

Input
TC Input, -15dB at 4.7K, on a mini Phone Jack
Output
TC Output, on a BNC connector
Sync, PAL, NTSC or Trilevel, on a BNC connector
Television System
NTSC @ 3.58 MHz
PAL @ 4.43 MHz
1920 x 1080p1280 x 720p
Control
Rotary Switch:
Time Code Type HD, NTSC, PAL
Black Burst or Color Bars NTSC or PAL
Drop Frame or Non Drop
Dip Switch:
Trilevel Sync, Progressive or Interlaced
Trilevel Sync @ Twice Video Rate
Color Bars instead or Blackburst
Power Supply
5.7 to 16 VDC
3 AA Batteries
External Power
Dimensions
4.475 x 2.9 x 1.05" / 11.4 x 7.4 x 2.7cm
Weight
0.75 lbs / 340 grams
Mfr #
SB-T
SKU
DESBT
