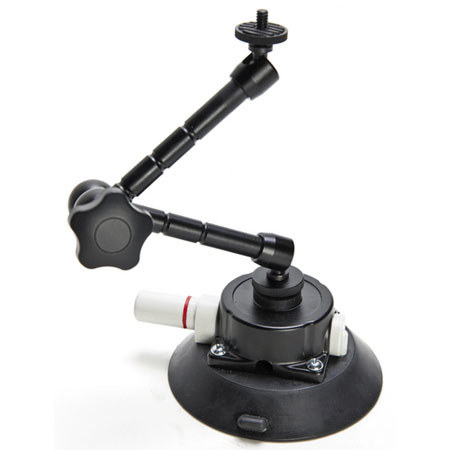

The Digital Juice Gear Suction Mount Series Articulating Arm is a sturdy, portable, jointed accessory arm that can be used to mount small displays, lights, microphones or other accessories on any flat, non-porous surface using an integrated suction cup mount. It is a perfect tool for rigging portable lights in hard to reach areas for car shoots, tight office environments or other awkward locations, without the need for bulky light stands.
The articulating arm consists of two equal length pivoting arms on a central joint. At the top end of the unit is another pivoting joint with a 1/4-20 screw mount for use in attaching any compatible accessory such as small monitors or portable LED lights. Each joint in the arm can be adjusted independently and then all 3 joints can be simultaneously locked down using the single central locking knob.
At the bottom end, the arm is permanently affixed to a 4.75" suction cup mount, ideal for use on non-porous smooth surfaces such as windows, walls or a car dashboard when shooting on location in tight spots. Attaching the suction cup mount to a smooth surface is very easy. Just place the suction cup where you need it and then pump the white pin until the red line on it is no longer visible. The unit will be firmly attached and ready to receive any compatible accessory.
|Mounting Compatibility||1/4" (0.635cm)-20 Screw Mount|
|Maximum Load Capacity||Up to 5 lbs / 2.26kg|
|Dimensions||10" / 25.4cm articulating arm permanently mounted to a 4.75"/12.06cm diameter suction cup mount; 12" x 5.5" / 30.48cm x 13.97cm (with arm fully extended)|
|Weight||1 lbs / 0.45kg|
