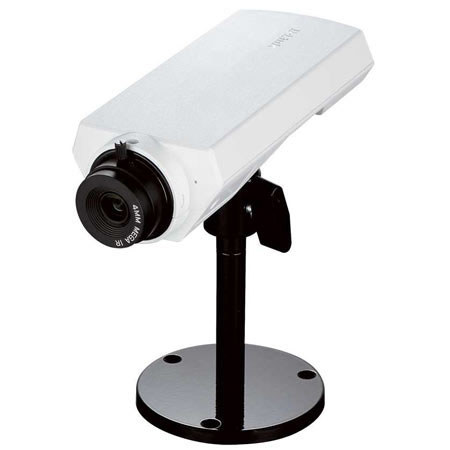

The D-Link DCS-3010 HD POE Fixed Network Camera supports simultaneous streaming of H.264, MPEG-4 and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3010 supports multicast H.264 and MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.
The DCS-3010 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3010 has a built-in microphone as well as external audio input and output, making it useful for remote two-way communication.
The DCS-3010 is a self-sufficient surveillance solution, capable of recording snapshots and videos to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.
The included D-Link D-ViewCam is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules and use motion detection to directly record important events to a hard drive. D-ViewCam also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.
ONVIF is an open industry forum for the development of a global standard for the interface of IP based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-3010 is ONVIF compliant and therefore interoperable with other manufacturer's products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.
|Camera Type||Network camera|
|Color or B&W||Color|
|Digital Video Format||H.264, MJPEG, MPEG-4|
|Image Recording Format||JPEG|
|Max Focal Length||4mm|
|Optical Sensor Size||1/4"|
|Optical Sensor Size (metric)||6.4 mm ( 1/4" )|
|Optical Sensor Type||CMOS|
|Humidity Range Operating||20 - 80% (non-condensing)|
|Max Operating Temperature||104 deg.F|
|Min Operating Temperature||32 deg.F|
|Compliant Standards||C-Tick, FCC|
|Angular Field of View (H, max, degree)||56.9|
|Angular Field of View (V, max, degree)||35.9|
|Audio Support Features||Built-in microphone, Two-way audio capability|
|Auto Iris Control||DC|
|Camera Mechanical Design||Fixed|
|Equipment Category||CCTV cameras|
|Lens Iris||Auto iris|
|Max Digital Video Resolution||1280 x 800|
|Network Interface||Ethernet 10Base-T/100Base-TX|
|Network Protocols||3GPP/ISMA, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QOS, RTCP, RTP, RTSP, Samba, SMTP, SNMP 1, SNMP 2c, SNMP 3, TCP/IP, UDP/IP, UPnP|
|Flash Memory||32 MB|
|Low Voltage Power||DC 12 V / PoE|
|Rated Current||0.5 A|
|Dimensions (DxHxW)||5.8x1.5x2.4" (14.73x3.81x6.09cm)|
