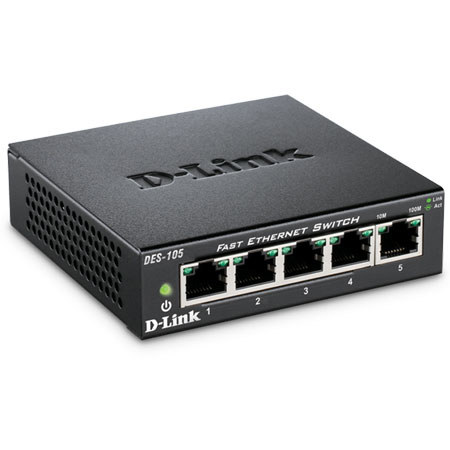

D-Link DES-105 5-Port 10/100 Fast Ethernet Switch

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist In Stock

About the D-Link DES-105

The D-Link DES-105 5-Port 10/100 Fast Ethernet Switch provides five Fast Ethernet auto-sensing ports for connecting multiple computer devices to your network. Once you've connected the switch to your network via one Fast Ethernet port, you will have four other ports for connecting printers, scanners, storage, backup devices and more. Support for Quality of Service (QoS) means the switch will prioritize network traffic that is sensitive to lags, such as video streaming or VoIP calls. The switch is unmanaged and plug-and-play, so you need not install software first to use it or configure settings for it later. Plus, the diagnostic LEDs on the front panel let you know if there are any connection issues, helping you troubleshoot problems as they arise.

D-Link DES-105 Features

  • Connect All of Your Devices with Fast Ethernet Speed: Expand your wired home network with the D-Link 5-Port Gigabit Desktop Switch (DES-105). By connecting the DES-105 to your router, you can add up to four more computers to your home network with Fast Ethernet connectivity
  • Robust Design: The DES-105 are designed with durability and performance in mind. Their sturdy metal housing ensures the product can withstand extreme temperatures and can be placed in typical industrial environments such as factories, construction and mining
  • Effortless High Speed Networking: Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity
  • Plug and Play Installation: The D-Link 5-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free
  • Conserves Energy: The DES-105 5-port Gigabit Switch helps you conserve energy automatically through several methods

D-Link DES-105 Specifications

Switching Fabric 1.0 Gbps
Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol CSMA/CD
Data Transfer Rates Ethernet:
10 Mbps (half duplex)
20 Mbps (half duplex)Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (half duplex)
Power On (Standby):
DC input: 0.5 watts
AC input: 1.0 watts
DC input: 2.01 watts
AC input: 3.10 watts
Network Cables 10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators Per port: Link/Activity
Transmission Method Store-and-forward
MAC Address Table 2K
MAC Address Learning Automatic update
Packet Filtering/Forwarding Rates Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer 384 KBytes per device
Jumbo Frames 2047 Bytes
QoS 2 Queues, strict mode
DC Input External 5 V/1 A Level "V" Power Adapter
Heat Dissipation Power On (Standby) AC input: 3.41 BTU/h
Maximum DC input: 6.854 BTU/h
MTBF 495,709 hours
Operating Temperature 32deg. to 122deg.F (0deg. to 50deg.C)
Storage Temperature 14deg. to 158deg.F (-10deg. to 70deg.C)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
Certifications FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
Dimensions 3.9x3.8x1.1" / 9.90x9.65x2.79cm
Weight 9.35 oz / 265 g
