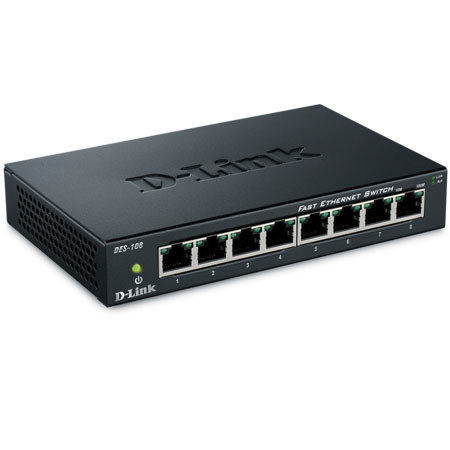

D-Link DES-108 8-Port 10/100 Fast Ethernet Switch, Speed Up To 200Mbps

D-Link
D-Link DES-108: Picture 1 thumbnail D-Link DES-108: Picture 2 thumbnail

Our Price

$34.59
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About D-Link DES-108

The D-Link DES-108 8-Port 10/100 Fast Ethernet Switch provides eight Fast Ethernet auto-sensing ports for connecting multiple computer devices to your network. Once you've connected the switch to your network via one Fast Ethernet port, you will have seven other ports for connecting printers, scanners, storage, backup devices and more. Support for Quality of Service (QoS) means the switch will prioritize network traffic that is sensitive to lags, such as video streaming or VoIP calls. The switch is unmanaged and plug-and-play, so you need not install software first to use it or configure settings for it later. Plus, the diagnostic LEDs on the front panel let you know if there are any connection issues, helping you troubleshoot problems as they arise.

D-Link DES-108 Features

  • 8 10/100 Fast Ethernet ports
  • Plug-n-Play installation
  • D-Link Green Eco-Friendly Power Design
  • Store-and-forward switching scheme
  • Support for IEEE 802.3az Energy-Efficient Ethernet (EEE) means the switch will detect when a connected computer is shut down or when there is no Ethernet traffic. At this point, the switch will automatically power down the idle port, saving a substantial amount of power
  • With 802.1P QoS Support, the switch prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls
  • High reliability with rugged metal case
  • Inexpensive Fast Ethernet solution for SOHO, small and medium businesses
  • Auto MDI/MDIX Crossover for all ports. This function allows each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports Jumbo Frames
  • RoHS compliant

D-Link DES-108 Specifications

Switching Fabric
1.6 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1pQoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Fast Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Topology
Star
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port: Link/Activity
Per device: Power
Transmission Method
Store-and-forward
MAC Address Table
1K
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
768 KBytes per device
Jumbo Frames
1536 Bytes
QoS
2 Queues, WRR mode
DC Input
External 5V/1 A Level "V" Power Adapter
Power Consumption
Power On (Standby):
DC input: 0.55 watts
AC input: 1.0 watts
Maximum:
DC input: 2.8 watts
AC input: 4.5 watts
Heat Dissipation
Power On (Standby) AC input: 3.41 BTU/h
Maximum DC input: 9.548 BTU/h
MTBF
511,323 hours
Operating Temperature
32 to122 deg.F (0 to50 deg.C)
Storage Temperature
14 to158 deg.F (-10 to70 deg.C)
Operating Humidity
10% to 90% RH non -condensing
Storage Humidity
5% to 90%RH non -condensing
Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
Dimensions
6.3x4.0x1.1" / 16.00x10.16x2.79cm
Weight
14.53 oz / 411.91 g
