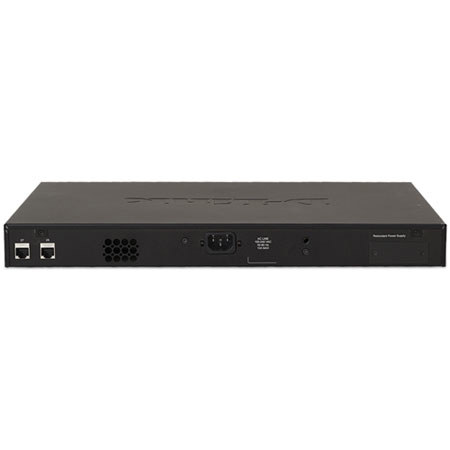

D-Link DES-3528 xStack Managed 28 Port Fast Ethernet L2+ Switch
Your card will only be charged once item ships.
The D-Link DES-3528 xStack is a high-performance, managed, stackable Layer 2 switch that provides an ideal solution for workgroups and edge deployments of a network. The D-Link Single IP Management (SIM) allows administrators to cluster up a virtual stack of up to 32 DES-3528 dispersed switches with fewer distance limitations through a single IP address. The clustering environment spans buildings, making it perfect for businesses that require multiple building deployments. The DES-3528 also supports physical stacking of up to 8 units in a stack, so that the entire stack can act as a single logical unit with up to 4 Gbps of stacking backplane. The xStack switch also provides comprehensive security for edge access such as Access Control List, DHCP server screening and DoS attack prevention.
The DES-3528 provides a non-blocking switching solution for 10/100 Fast Ethernet connections. The DES-3528 supports 24 10/100 Mbps ports, with 4 gigabit 10/100/1000BASE-T ports. Two of these gigabit copper ports are disabled when the two 1000BASE-X SFP are used, also known as dual personality or combo ports. The DES-3528 has a non-blocking bandwidth of 12.8 Gbps; the xStack switch has a redundant power option for mission critical applications.
For edge network security, the DES-3528 supports DHCP server screening, client filtering and IP-MAC-Port Binding to prevent security breaches such as rogue DHCP server, man-in-the-middle attacks and IP spoofing. For clients with XP SP3, Vista, or servers with Microsoft's Server 2008, DES-3528 works in conjunction with Microsoft's Network Access Protection (NAP) as part of an ecosystem that enforces compliance with network health policies. The xStack switch will grant network host access only if it complies with IT security policies such as up-to-date anti-virus signatures and operating system patches. This prevents a virus-infested client or server from gaining access and further contamination.
The xStack switch also supports loopback detection, which detects a loop in the network even though the end device causing the loop is without spanning tree. When the switch detects a loop is in the connected node, the DES-3528 shuts down the port with the loop so that the entire system will continue to function normally. This feature can also be VLAN based.
The DES-3528 incorporates advanced mechanisms to detect an attack against the switch's central processing unit and to take corrective action on the attacking interface. When a Denial of Service attack is waged against the xStack switch, the D-Link Safeguard Engine detects the threat and prevents overload of the central processor thus insuring network integrity and helping to maintain open network bandwidth channels.
In addition, the DES-3528 supports 802.1x authentication, which securely allow users to log onto your network. When used in conjunction with a RADIUS server, 802.1x requires each user workstation attached to the xStack switches to provide a username and password before gaining access to the network. Web-based authentication option is available for those clients who may not have the 802.1x supplicant, while MAC-based authentication can make the authentication process automatically, authenticated by the 802.1x server based on the client's MAC address. Other security features include access control list, which an administrator can restrict the access of a network through a variety of means including MAC address, IP, UDP/TCP and even VLAN ID.
The xStack DES-3528 provides D-Link Single IP Management Technology (SIM), allowing a set of switches to be managed by a single IP, regardless of geographical locations. Traffic running among units in this virtual stack is through the full-duplex Gigabit interfaces and your usual network wires, doing away with the costly and cumbersome stacking cables. Without any stacking cable, cable distance barrier and physical stacking limitations, your stack can comprise units that are located anywhere on the network, minimizing the impact of any single point of failure.
Furthermore, multiple xStack switches can be configured, monitored and maintained from any workstation running a web browser through one unique IP address. The stack is managed as a single object, with all units identified by a single IP address. With Tree View, you can obtain and overview of the members of the stack and a network topology showing the locations of the units and their link information. This provides simple yet powerful web-based management without expensive SNMP network management software. You can add up to 32 switches per stack not limited to any specific D-Link models. With embedded SIM, you can expand your Ethernet stack to include L3 core Gigabit and chassis based switches to accommodate your network growth.
|Device Interface||24 10/100BASE-TX Auto-Negotiating, Auto-MDI/MDIX Ports
2 Dual-Usage 10/100/1000BASE-T Stacking Ports
2 Combo 10/100/1000BASE-T Ports/SFP Slots
RS-232 Console Port
|MAC Address Table||16K|
|64-Byte System Packet Forwarding Rate||9.5 Mpps (Maximum)|
|Number of VLANs Per Device||Maximum 4,096 Static VLAN Groups
Maximum 255 Dynamic VLAN Groups
|Quality of Service (QoS)||8 Independent Hardware Queues (802.1p/Diffserv/ToS)|
|Stackability||Virtual Stacking with D-Link Single IP Management (SIM) Up to 32 Devices per Virtual Stack|
|MLD v1/v2||256 Groups Supported, MLD Snooping Fast Leave|
|Access Control Lists||Up to 768 Access Rules, Time-based ACL, CPU Interface Filtering|
|Jumbo Frame Support||Up to 9,216K Bytes|
|IGMP Snooping||Supports 256 Groups, IGMP Fast Leave, Host-based IGMP Fast Leave|
|Flow Control||802.3x Flow Control, HOL Blocking Prevention|
|Port Mirroring||Supports one-to-one or many-to-one, Flow-based mirroring|
|Link Aggregation||Supports up to eight 8-port Groups|
|D-Link Safeguard Engine||Protects CPU from Broadcast/Multicast/Unicast Flooding|
|Web-based Graphic User Interface (GUI)||Compatible with Internet Explorer, Netscape, Mozilla, Firefox, Opera, Safari browsers|
|RJ-45||10BASE-T, 100BASE-TX, 1000BASE-T|
|SFP Expansion Slots||Media Support Dependent On GBIC Transceiver|
|Diagnostic LEDs||Per Device: Power, Console, RPS
Per Gigabit Port: Link/Activity, 10/100Mbps or 1000Mbps Speed
Per Ethernet Port: Link/Activity, 10Mbps or 100Mbps Speed
|Network Management: In & Out of Band||Web-Based GUI, Single IP Management v1.6, Command Line Interface (CLI), Telnet Server, Zmodem, SNMP v1/v2c/v3, SNMP Traps, System Log, RMON v1, Support 1,2,3,9 Groups, RMON v2, Support ProbeConfigGroup, BootP/DHCP Client, DHCP Auto-configuration, DHCP Relay, DHCP Relay Option82, Dual Image, Dual Configuration, CPU Monitoring, NTP/SNTP|
|Network Management: IEEE||802.1q VLAN Tagging, 802.1v VLAN Protocol, GVRP, 802.1ab Double VLAN (Port-based Q-in-Q, Selective Q-in-Q), VLAN Translation, MAC-based VLAN, Asymmetric VLAN, ISM-VLAN, 802.1p Quality of Service, 802.1D Spanning Tree Protocol (IEEE802.1D-2004 Edition), 802.1w Rapid Spanning Tree Protocol (IEEE802.1D-2004 Edition), 802.1s Multiple Spanning Tree Protocol (IEEE802.1Q-2005 Edition), 802.3x Flow Control, 802.3ad Link Aggregation|
|Network Management: IETF||RFC 1112/2236/3376 IGMP v1/v2/v3, RFC 1157 SNMP, RFC 2021 RMON v2, RFC 3810 MLD, RFC1213 MIB-II, RFC1493 Bridge MIB, RFC1907 SNMPv2 MIB, RFC1757/2819 RMON MIB, RFC1643/2358/2665 Ether-like MIB, RFC2674 802.1p MIB, RFC2233/2863 IF MIB, RFC2618 RADIUS Authentication Client MIB, RFC2620 RADIUS Accounting Client MIB, RFC2925 Ping & TRACEROUTE MIB, Private MIB|
|Emissions||FCC, C-Tick, VCCI Class A|
|Internal Power Supply||AC to DC|
|Power Input||100 to 240VAC, 1.5A, 50 to 60Hz|
|Maximum Power Output||12VDC, 5A|
|Maximum Power Consumption||20.5 watts|
|Redundant Power Supply||Connector for Optional External DPS-200|
|Safety Compliance||CSA International and CB Report|
|Operating Temperature||32deg. to 113deg.F (0deg. to 45deg.C)|
|Storage Temperature||'-40deg. to 158deg.F (-40deg. to 70deg.C)|
|Humidity||5% - 95% Relative, Non-condensing|
|Dimensions (W x D x H)||17.4in x 8.3in x 1.7in (441mm x 210mm x 44mm)|
|Weight||5.5 lbs (2.5 kg)|
