D-Link

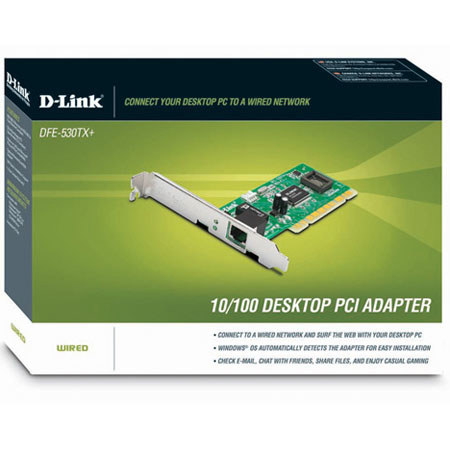

D-Link Express EtherNetwork Fast Ethernet PCI Network Adapter

SKU: DLDFE530TXP MFR: DFE530TXP
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$12.05
Qty:
Add to Wishlist

About this item

The D-Link 10/100 Fast Ethernet Desktop PCI Adapter (DFE-530TX+) delivers reliable wired network connectivity for your desktop PC. Access an available high-speed Internet connection through your wired network using this Fast Ethernet Desktop PCI Adapter and surf the web, check e-mail, share documents, music and photos.

This Fast Ethernet Desktop PCI Adapter includes advanced features such as Wake-on-LAN and IEEE 802.3x support. Computers and operating systems that support Advanced Configuration and Power Interface (ACPI) can remotely wake your PC from anywhere on the network with the Wake-on-LAN feature. With support for 802.3x flow control, data is received and transmitted smoothly to and from the network. This Fast Ethernet Desktop PCI Adapter is automatically detected by the Windows OS during installation, simplifying the setup process. It supports IEEE 802.3 and 802.3u, ensuring compatibility with 10BASE-T and 100BASE-TX networks.

This Fast Ethernet Desktop PCI Adapter utilizes auto-negotiation to automatically adjust to the highest supported transfer rate (up to 200Mbps in full duplex mode). The D-Link 10/100 Fast Ethernet Desktop PCI Adapter (DFE-530TX+) is a simple, cost-effective solution for desktop computers, making it the ideal choice for wired home networking applications.

What's Included With This Item

  • D-Link Express Ethernetwork Fast Ethernet PCI Network Adapter
  • Wake-on-LAN Cable
  • Standard & Low Profile Mounting Brackets
  • Quick Installation Guide
  • CD-ROM with: Installation Wizard
  • Product Documentation
  • D-Link 1 Year Warranty

Key Features

  • PCI Local Bus Master 2.1/2.2 Support
  • Plug-and-Play Installation
  • Supports PCI 2.1/2.2 ACPI Power Management Wake-On-LAN
  • Compliant to PC 99 Standard (Magic Packet, LinkChg and Microsoft wake-up frame)
  • Independent 2Kb receive and transmit FIFOs
  • Connect to a Network and Surf the Web with Your Desktop PC
  • Windows Automatically Detects the Adapter for Easy Installation
  • Up and Running in Minutes

Technical Specs

Standards IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
ANSI/IEEE 802.3 Nway Auto-Negotiation
IEEE 802.3x Full Duplex Flow Control Support
Network Data Transfer Rate Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Protocol CSMA/CD
Network Media Ethernet: UTP Cat3, 4, 5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
Fast Ethernet: UTP Cat5, EIA/TIA-568 100-ohm screened twisted-pair (STP)
Led Link
Activity
Certifications FCC
Operating Temperature 14°F to 131°F (-10°C to 55°C)
Operating Humidity 90% Maximum (Non-condensing)
Minimum System Requirements Computer with: Windows Vista, Windows XP SP2, Windows 2000 SP4, or Mac OS X (v10.2/v10.3)
CD-ROM Drive
20MB Hard Disk Space
32-Bit PCI Slot
Dimensions (WxDxH) 4.9" x 4.8" x 0.5"
Weight 0.3 lbs
