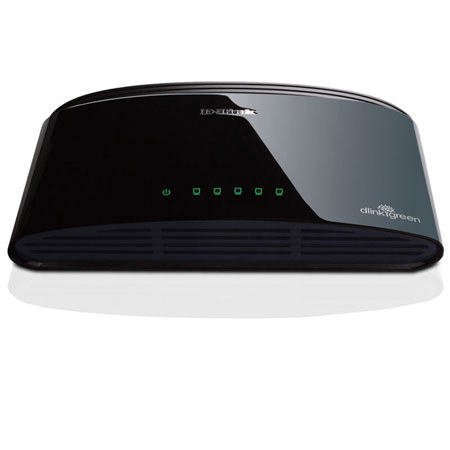

D-Link DGS-1005G 5-Port Gigabit Desktop Switch

SKU: DLDGS1005G MFR: DGS-1005G
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$31.99
Qty:
Add to Wishlist

About the D-Link DGS-1005G

The D-Link DGS-1005G 5-Port Gigabit Desktop Switch is part of a new series of 'green' devices using D-Link Green technology. Created with the small or home office user in mind, this switch saves energy while reducing heat output, providing you a longer product life without sacrificing operational performance or functionality. Combined with an efficient power adapter that is EnergyStar level V qualified, minimized the use of harmful substances (RoHS compliant) in the device and enclosed in recyclable packaging make this switch truly environmentally friendly.

The DGS-1005G 5-port Gigabit Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link activity, allowing the switch to save energy by cutting power usage for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths and adjusts power usage accordingly, helping you save energy without effecting networking performance.

The 5-port Gigabit Switch was designed with the environment in mind. It is compliant with energy Star level V, as well as with the strict CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

D-Link DGS-1005G Includes

  • D-Link DGS-1005G 5-Port Gigabit Desktop Switch
  • Power Adapter
  • Rubber Feet
  • Wall Mount Kit
  • D-Link Lifetime Limited Warranty

D-Link DGS-1005G Features

  • Built-in D-Link Green Technology
  • Inexpensive Gigabit solution for Home/SOHO
  • 5 10/100/1000 Mbps Gigabit ports
  • 10 Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports 9,000 Byte Jumbo Frames
  • Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
  • Supports Cable Diagnostics Function
  • RoHS compliant
  • Plug-and-play installation

D-Link DGS-1005G Specifications

Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
Protocol CSMA/CD
Data Transfer Rates Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)
Topology Star
Network Cables 10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators Per port: Link/Activity/Speed
Per device: Power
Transmission Method Store-and-forward
MAC Address Table 4K entries per device
MAC Address Learning Automatic update
Packet Filtering/Forwarding Rates Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 128 KBytes per device
DC Input External 5V/1.2A Power Adapter
MTBF 861,516 hours
Power Consumption Power On (Standby):
DC input: 0.4 watts
AC input: 1.1 watts
Maximum:
DC input: 3.2 watts
AC input: 4.5 watts
Heat Dissipation Power On (Standby):
AC input: 3.751 BTU/h
Maximum:
AC input: 15.345 BTU/h
Operating Temperature 32 to 104 deg.F (0 to 40 deg.C)
Storage Temperature 14 to 158 deg.F (-10 to 70 deg.C)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
Certifications FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
Dimensions (WxDxH) 5.7x4.0x1.3" / 14.47x10.16x3.30cm
