D-Link

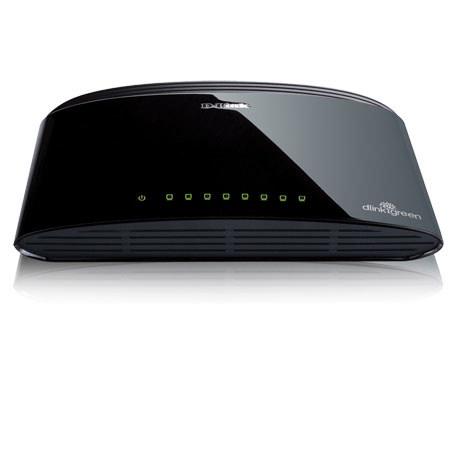

D-Link DGS-1008G 8-Port Gigabit Desktop Switch, 16Gbps Switching Fabric

SKU: DLDGS1008G MFR: DGS-1008G
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$45.99
Qty:

Add to Wishlist In Stock

About the D-Link DGS-1008G

The DGS-1008G 8-port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link activity, allowing the switch to save energy by cutting power usage for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths and adjust power usage accordingly, helping you save energy without effecting networking performance.

The 8-port Gigabit Switch is designed with the environment in mind. It is compliant with energy Star level V, as well as with the strict CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

D-Link DGS-1008G Includes

  • D-Link DGS-1008G 8-Port Gigabit Desktop Switch
  • Power Adapter
  • Rubber Feet
  • Wall Mount Kit
  • D-Link Warranty

D-Link DGS-1008G Features

  • Think Green: Partnered with an efficient power adapter that is EnergyStar Level V qualified, the DGS-1008G minimizes use of harmful substances (RoHS compliant) within and is enclosed in recyclable packaging, making this switch truly environmentally friendly
  • Built-in D-Link Green Technology
  • Inexpensive Gigabit solution for Home/SOHO
  • 8 10/100/1000 Mbps Gigabit ports
  • 16 Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports 9,000 Byte Jumbo Frames
  • Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
  • Supports Cable Diagnostics Function
  • RoHS compliant
  • Plug-and-play installation

D-Link DGS-1008G Specifications

Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 Nway auto-negotiation
IEEE 802.3x Flow control
IEEE 802.1p QoS
Protocol CSMA/CD
Data Transfer Rate Ethernet: 10Mb/s (half duplex)
20Mb/s (full duplex)
Fast Ethernet: 100Mb/s (half duplex)
200Mb/s (full duplex)
Gigabit Ethernet: 2000Mb/s (full duplex)
Topology Star
Interface Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
Network Cable Type 10BASE-T: UTP CAT 3/4/5/5e (100m / 328' maximum)
EIA/TIA-586 100-ohm STP (100m / 328' maximum)
100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100m / 328' maximum)
EIA/TIA-568 100-ohm STP (100m / 328' maximum)
LED Indicators Per port: Link/Activity/Speed
Per device: Power
Transmission Store-and-forward method
MAC Address Table Size 4K entries per device, automatic update learning system
Packet Filtering/Forwarding Rates Ethernet: 14880 pps per port
Fast Ethernet: 148800 pps per port
Gigabit Ethernet: 1488000 pps per port
RAM Buffer 128KB per device
DC Input External 5VAC / 1.2A power adapter
Power Consumption Power on (Standby): DC Input: 0.4W
AC Input: 1.1W
Maximum: DC Input: 3.2W
AC Input: 4.5W
Heat Dispersion Power on (Standby): AC input 3.751 BTU/h
Maximum: AC input 15.345 BTU/h
MTBF 1150498 hours
Operating Temperature Range 32-104deg.F (0-40deg.C)
Storage Temperature Range 14-158deg.F (-10-70deg.C)
Operating Humidity Range 10-90% RH Non-Condensing
Storage Humidity Range 5-90% RH Non-Condensing
Minimum System Requirements Devices Supporting 802.3 Ethernet, 802.3u fast Ethernet, or 802.3ab Gigabit Ethernet
CAT5 Ethernet Cable
Network Interface Card for each computer
CD-ROM Drive to view Product Documentation
Certifications FCC class B
ICES-003 class B
CE class B
C-Tick class B
VCCI class B
cUL
CB
Dimensions 6.5x4.5x1.4" (165.1x114.3x35.56mm)
