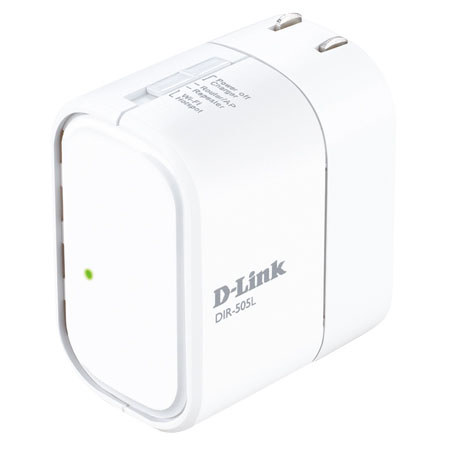

D-Link DIR-505 SharePort Mobile Companion

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Shipping
Add to Wishlist

About the D-Link DIR-505

The D-Link DIR-505 SharePort Mobile Companion is an effective Internet connection solution when on the go. Take advantage of any one of three wireless modes including Wi-Fi HotSpot Mode, Router/AP Mode and Repeater Mode to share a wired Internet connection with other users. Enhanced security features including WPA/WPA2 (Wi-Fi Protected Access) and WPS to ensure network security.

The advanced features found within the SharePort Mobile Companion include the SharePort Mobile app for iOS, Quick Router Setup app for iOS, VPN pass through, Guest Zone Support, UPnP Support, Web File Access Support and Wi-Fi WMM Quality of Service. You can also take advantage of Advanced Firewall Features including Network Address Translation, Stateful Packet Inspection, MAC Address Filtering and DMZ Support.

D-Link DIR-505 Features

  • Stream Content to a Variety of Devices: Stream your media files whether at home or on the go. Connect your iPhone, iPad, or Android device with the free SharePort Mobile app. The app uses icons for easy navigation
  • Turn Any Internet Connection into a Wi-Fi Hotspot: Set up a wireless connection with the SharePort Mobile Companion when on the go. Utilize the SharePort as a travel router or access point for instant strong wireless bandwidth where a wired network connection already exists
  • SharePort Mobile Companion offers flexible operation modes: Router/AP, Wi-Fi HotSpot, Repeater
  • Wirelessly Expand Your iPad and Phone Storage: The SharePort Mobile Companion adds portable, wireless storage to your iPhone, iPad and Android devices, giving you more capacity for your favorite media. Just plug in a USB drive to instantly access and share your movies, music and photos
  • Easy Setup: Setting up a wireless connection is quick and easy with D-Link's One-Touch AP Configuration and Wi-Fi Protected Setup (WPS). If you want to create a new network with your SharePort Mobile Companion, you can use the free Quick Router Setup Mobile (QRS) app for your iPhone or iPad
  • Portable iPhone or Android Charger: Keep your iPhone or Android device charged with the SharePort Mobile Companion travel charger option

D-Link DIR-505 Specifications

Standards IEEE 802.11
IEEE 802.11g
IEEE 802.3
IEEE 802.3u
Wireless Modes Wi-Fi Hotspot Mode
Router/AP Mode
Repeater Mode
(USB sharing capability disabled)
Wireless Frequency Range 2.4 GHz to 2.4835 GHz
Antennas Internal Antenna
Security Wi-Fi Protected Access (WPA/WPA2)
Power Input/Output Input: 100-240V, 50/60Hz
Output: 5V, 1.2A
Guest Zone Support Yes
UPnP Support Yes
Web File Access Support Yes
Wi-Fi WMM Quality of Service Yes
Firewall Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
MAC Address Filtering
DMZ Support
Device Management Web UI
Diagnostic LEDs Power/WPS
Operating Temperature 32 to 104 deg.F (0 to 40 deg.C)
Operating Humidity 0% to 90% non-condensing
Certifications CE
Wi-Fi Certified
Dimensions 2.77x2.60x1.69" / 7.03x6.60x4.29cm
Weight 0.23 lbs / 0.10 kg
