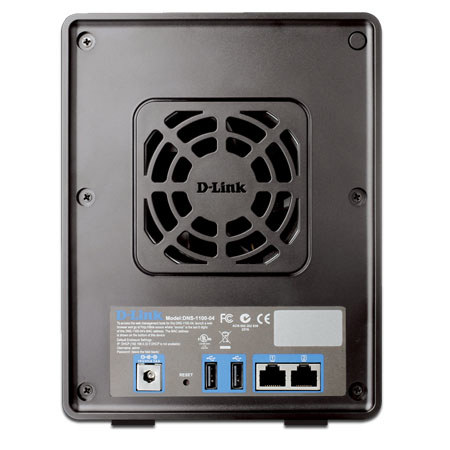

D-Link ShareCenter Pro 1100 4-Bay NAS / iSCSI Unified Network Storage, 12TB Max Storage Capacity, 512MB RAM

SKU: DLDNS1104 MFR: DNS-1100-04
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The D-Link ShareCenter Pro 1100 4-Bay NAS / iSCSI Unified Network Storage is ideal for small businesses looking to back up and share files over a network or provision additional storage capacity for a dedicated host machine. With concurrent NAS and iSCSI support, the DNS-1100-04 provides a multitude of advanced options for storage consolidation, document sharing, data backup, managing and securing important files.

Key Features

  • File Sharing: The DNS-1100-04 integrates a NAS file server which takes full advantage of the accelerated performance provided by iSCSI. Files can be shared across the network or over the Internet via FTP or an intuitive web file manager, to users with the appropriate credentials
  • NAS: Small Businesses will appreciate the DNS-1100-04 NAS file server which takes advantage of the accelerated performance of the dual-core CPU. Providing upto 7200 MIPS of computing power and 512MB of cache memory, the DNS-1100-04 is able to provide the storage throughput required for your business
  • A Variety of Backup Options: The DNS-1100-04 offers several backup options which allow administrators and users to control how, when and where their data is stored
  • iSCSI for IP Networks: iSCSI offers exceptionally fast access performance thanks to block-level data transfer. iSCSI targets appear as a local drive on a client PC
  • Advanced Security: Account management features include the ability to manage users/groups and Read/Write permissions. Create users, groups and iSCSI targets with password authentication. Additionally, VLAN tag support combined with AES encryption keeps files secure
  • Share Printers and USB Storage: USB connectivity provides the option to establish a printer server, monitor a UPS, or connect USB devices such as hard drives and flash storage
  • RAID for Efficiency and Redundancy: The DNS-1100-04 features 4 Serial ATA disk drive bays supporting RAID levels 0, 1, 10, 5 or JBOD configurations. IT administrators can quickly deploy a network storage solution using inexpensive SATA disk drives and can add more drives depending on storage needs
  • Green Features Save Energy: The DNS-1100-04 Sharecenter Pro 1100 is part of D-Link Green, D-Link's programme for providing eco-friendly alternatives without compromising performance

Technical Specs

Networking IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
Jumbo Frames
Supported Hard Drive Type Four Hot-Swappable 3.5-inch SATA drives - Supports up to 12TB with 3TB drives
Ports 2 x 10/100/1000 Gigabit Ethernet Ports
2 x USB 2.0 Ports for UPS, printer and external storage
Processor Dual Core CPU
Display 128 x 32 OLED display screen
Drive Management Multiple Hard Drive Configurations: RAID 0/1/5/6/JBOD/Standard Mode
SMART Disk Diagnostics
Device Management Easy Search Utility
Real-Time Clock (RTC) support
E-Mail Alerts
Power Management
RAID Migration
Online Capacity Expansion
USB hard disk
User/folder quota management
O/S Support Windows
Browser Support Internet Explorer 7 or higher
Firefox 3.5 or higher
Google Chrome
File Sharing Max. User Account: 4096 (Samba) / 10000 (ADS)
Max. Groups: 512 (Samba) / 10000 (ADS)
Max. Shared Folders: 1000
Max. Concurrent Connections: 256
Snapshots Up to 10 snapshot jobs and 20 snapshots per job
Multi-language Support Samba: Unicode
FTP Client: Unicode, Croatian, Cyrillic (Kyrgyz Republic), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovenian, Spanish, Swedish, Traditional Chinese, Turkish
Power Supply External power adapter
With PFC (power factor correction) function
220 watts
Input Voltage 100-240 VAC (auto-switching)
Input Frequency 50-60 Hz
Power Consumption Normal mode: 55 Watts
Sleep mode: 25.2 Watts
Operating Temperature 41deg. to 95deg.F (5deg. to 35deg.C)
Operating Humidity 5% to 90% non-condensing
Certifications FCC, CE
Dimensions 8.07x6.38x10.13" / 20.49x16.20x25.73cm
Weight 6.61 lbs (3 kg)
