Da-Lite Single Motor Low Voltage Control System
Estimated Delivery time is from 1 to 2 weeks.
What's Included With This Item:

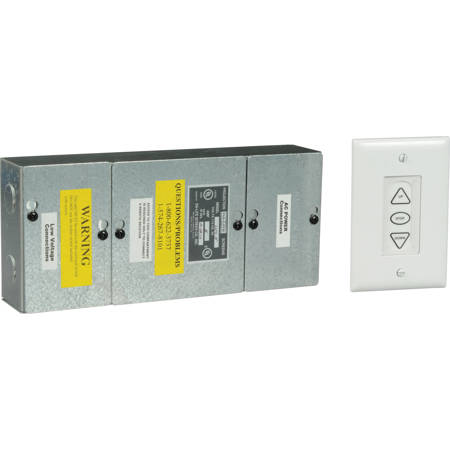

- control module and 3-button wall switch with box and cover plate
Controls all Da-Lite single motor electric screens. Three button system with separate "up", "down", or "stop" commands. Includes control module and 3-button wall switch with box and cover plate. Can be used alone with 3-button wall switch. White switch also available upon request. Required for wireless radio frequency or infrared remotes.
To operate Da-Lite Electrol series projection screens from one or more locations, a control system is required. The Da-Lite 3-button Single Motor Low Voltage Control System was designed specifically for that purpose. It features ease of installation and operates at the touch of a button from a switch or transmitter. With the Da-Lite LVC System, the screen can be controlled in four different ways:
• Low Voltage Switch Control
• Radio Frequency Remote Control
• Infrared Remote Control
• Auxiliary Control
The LVC consists of a printed circuit board with the microcomputer, relays and a transformer. The control components are housed in a metal electrical box. It is possible to control the screen from any number of 3-button switches, or computer controls. An infrared remote and a radio frequency remote can be added as control options. The low voltage 3-button switch utilizes 12 volts DC to control the motorized screen. The LVC is designed to UL, CSA and National Electrical Code standards. The overall housing size is: 4" x 6" x 2 1/2".
The Switch Control, complete with a painted cover plate, may be flush mounted on any wall in a standard single gang electrical box. The 3-button Switch Control allows you to move the screen, up or down and stop it any position when you momentarily press either the UP, DOWN or STOP buttons as instructed. The screen may be operated without regard to the status of the other switches.
