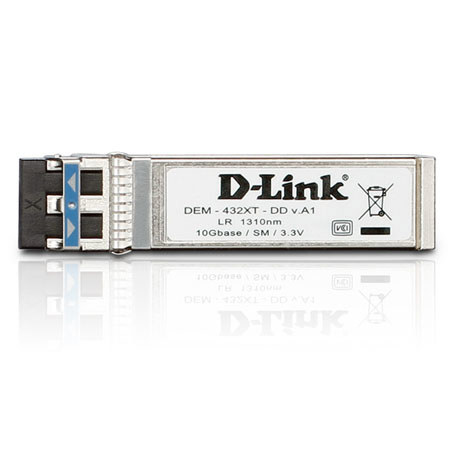

D-Link 10GBASE-LR 10Gbps SFP+ Transceiver with Digital Diagnostics Monitoring (DDM)

D-Link
SKU: DLM432XT MFR: DEM-432XT-DD
D-Link : Picture 1 thumbnail D-Link : Picture 2 thumbnail

Our Price

$908.29
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About D-Link

The D-Link 10GBASE-LR 10Gbps SFP+ Transceiver is hot-swappable SFP+ transceiver that plugs into SFP+ slots on switches and support 10G Ethernet. It offers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets and service provider transport applications. The transceiver use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2 and 10G XFP; ensuring lower costs, lower power disruption and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port and vice versa, for the port to receive data from the network cable.

The transceiver support 10G Ethernet, which results in very fast data transmissions of up to 10Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs. The transceiver is hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network. The 10G SFP+ Module features DDM, real-time monitoring of critical parameters, including transmitted and received power, temperature and voltage. This allows for convenient monitoring of the module's fiber connection and early detection of problems.

D-Link Specifications

Standard Compliance
IEEE-802.3ae
10GBASE-LR
Form Factor Type
SFP+
Fibre Channel FC-PI Standard
1200-SM-LL-L
Fiber Media Support
Single-Mode
Distance Capacity
10 km
Hot Pluggable
Yes
MSA Compliant
Yes
RoHS Compliant
Yes
MAC Address Update
Yes
DDM (Digital Diagnostics Monitoring)
Yes
Speed
Yes
Connector
Duplex LC Connector
Single/Bi-Directional
Single Direction
Wavelength
1310nm
Output Optical Power (TX Optical Power)
Max.: 0.5 dBm
Min.: -8.2 dBm
Input Optical Power (RX Optical Power)
Max.: 0.5 dBm
Min.: -12.6 dBm
Sensitivity
-12.6 dBm
Cable Type
Single-mode 9/125 um fiber
Power
3.3 V
Maximum Input Current
285 mA
Minimum Power Budget
4.4 dB
Maximum Power Budget
17.6 dB
Heat Generated
3.4 kJ/h
MTBF (Hours)
3,390,000
Operating Temperature
-5 to 70 deg.C
Storage Temperature
-40 to 85 deg.C
Operating Humidity
0 to 85%
Storage Humidity
0 to 85%
Certifications
FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI
Emission (EMI) And Safety
CE, FCC, VCCI
CSA, TUV, CDRH
Dimensions(WxDxH)
0.58x2.22x0.47" / 1.47x5.63x1.19cm
Weight
0.05lbs / 0.02kg
