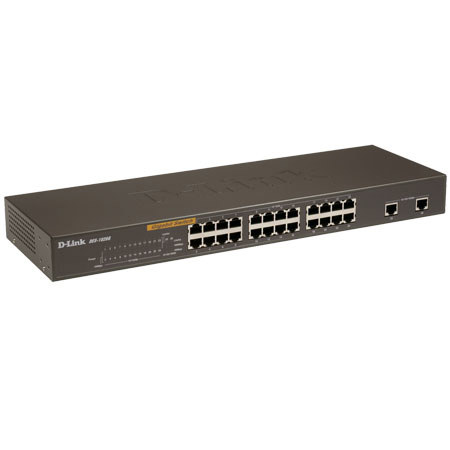

D-Link DES-1026G 24-Port Rack-Mountable Gigabit Ethernet Layer 2 Switch

D-Link
SKU: DLS1026G MFR: DES-1026G
D-Link DES-1026G: Picture 1 thumbnail D-Link DES-1026G: Picture 2 thumbnail D-Link DES-1026G: Picture 3 thumbnail

Our Price

$123.11
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About D-Link DES-1026G

The D-Link 24-Port Rack-Mountable Gigabit Ethernet Layer 2 Switch is a networking tool that's an affordable and efficient solution for your small office network. This switch features twenty-four 100 Megabit (10 / 100) Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network--as well as two speedy Gigabit (10 / 100 / 1000) Ethernet ports. Notably, this switch supports up to four Quality of Service (QoS) queues according to IEEE 802.1p specifications, an 8.8 Gbps Switching Capacity and Non-Blocking Wire-Speed Architecture.

D-Link DES-1026G Features

  • Ease of Use: The DES-1026G is a true Plug-and-Play device with features such as Auto Speed Sensing, allowing it to automatically sense whether a network device is running at 10Mbps or 100Mbps then automatically adjusting itself for optimal performance
  • Superior Performance: The DES-1026G features a non-blocking wire-speed architecture with an 8.8Gbps switching capacity for maximum data throughput. With wire-speed filtering and Store-and-Forward switching, it also maximizes network performance while minimizing the propagation of bad network packets
  • Quality of Service: The DES-1026G supports 802.1p Quality of Service. QoS assists in the prompt delivery of time sensitive data such as voice, video and gaming traffic. When frames enter the switch with 802.1p priority tags, they are automatically placed in one of four built-in hardware queues
  • Exceptional Value: In addition to being backed by a 5-year warranty, this easy-to-use 10/100BASE-TX switch will enhance and compliment any existing network infrastructure and deliver the performance that IT managers and other SMB network administrators demand

D-Link DES-1026G Specifications

Interface
(24) Port 10/100Mbps plus (2) Port 10/100/1000Mbps
MAC Address Table Size
8,000
Switch Fabric
8.8Gbps Capacity
Transmission method
Store-and-Forward
Diagnostic LEDs
Per unit: Power
Per port: Link/Activity, 100Mbps (Ports 1-24)
Link/Activity, 1000Mbps (Ports 25-26)
QoS
802.1p (4 Queues)
RJ-45
10BASE-T, 100BASE-TX & 1000BASE-T
Universal UTP Cable Recognition for Straight-through or Crossover Cables
Network Protocols IEEE
802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet, 802.3x Flow Control, 802.1p QoS
Emissions
CE Mark Class A, FCC Class A, VCCI-A, ICES-003 Class A
Heat Dissipation
33.44 BTU/hr
Safety
cUL, RoHS Compliant
Power Supply
100 - 300VAC 50/60Hz, Internal Universal Power Supply
Power Consumption
9.8 Watts
Operating Temperature
32deg. to 104deg.F (0deg. to 40deg.C)
Storage Temperature
14deg. to 158deg.F (-10deg. to 70deg.C)
Operating Humidity
10% - 90% RH, Non-condensing
Storage Humidity
5% - 95% RH, Non-condensing
Dimensions (WxDxH)
7.9x17.5x1.8" / 200x444.5x45.72mm
Weight
5.8lbs / 2.63kg
