D-Link

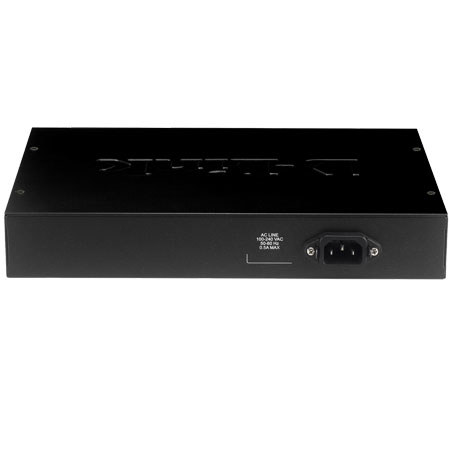

D-Link DGS-3200-10 Managed 8-Port Gigabit L2 Switch with 2 1000BASE-T/SFP Combo Ports

SKU: DLS320010 MFR: DGS-3200-10
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$271.42
Qty:

Add to Wishlist

About the D-Link DGS-3200-10

The D-Link DGS-3200-10 Managed Gigabit Switch offers a new generation of intelligence and defense with high-performance, flexibility and robust security. This switch secures your network from viruses using its ACL, IMPB (IP-MAC-Port Binding) and Safeguard Engine functions. The DGS-3200-10 is a compact switch built with a fan-less technology to emit less heat and noise than standard switches. With its 11" footprint, the DGS-3200-10 is ideal for any office environment with limited space.

D-Link DGS-3200-10 Features

  • Comprehensive Security: The DGS-3200-10 offers a complete list of endpoint security features, bringing confidence and assurance to your network. It executes firm network security and comes with user-based identity control by implementing host-based 802.1x authentication/authorization
  • IPV6 & IPV4 Technology: The DGS-3200-10 provides current IPv4 networks with a simple migration path to IPv6 and protects your investment for future network upgrades when greater security and larger addressing are required
  • Reliance/Performance Enhancement: To enhance network resilience, the DGS-3200-10 provides Spanning Tree protocols including 802.1D, 802.1w and 802.1s for redundant bridge paths. Link Aggregation provides aggregated bandwidth between switches or servers to increase redundancy for higher availability
  • Traffic Control: Network administrators can define throughput levels for each port to allocate its essential bandwidth. Broadcast storm control and flow-based bandwidth control can reduce the level of damage from virus attacks or P2P applications to the network
  • Single IP Management: To simplify and speed up your management tasks, multiple switches can be configured, monitored and maintained from any workstation running a web browser through one, unique IP address. Virtual stack is managed as a single object, having all units maintained by one IP address

D-Link DGS-3200-10 Specifications

Device Interfaces 8 10/100/1000BASE-T Gigabit Ports, 2 Combo 10/100/1000BASE-T/SFP Ports, RS-232 DB-9 Console Port
Diagnostic LEDs Per Device: Power, Console; Per 10/100/1000BASE-T
Port: Link/Activity/Speed
Per SFP Slot: Link/Activity/Speed
MAC Address Table 8K
Switch Capacity 20Gbps
Max. Packet Forwarding Rate 14.88Mpps
Switching Method Store and Forward
Packet Buffer 128Kbytes
Flow Control 802.3x Standard in Full Duplex Mode
Back Pressure in Half Duplex Mode
MTBF 726,077 Hours
Virtual Stacking Supports D-Link Single IP Management
Jumbo Frames Up to 10,240 Bytes
IGMP Snooping IGMP v1/v2/v3 Snooping
Support 256 groups
Host-based IGMP Snooping Fast Leave
Data Driven Multicast
MLD Snooping MLD v1/v2 Snooping
Support 256 groups
Spanning Tree Protocol 802.1D- 2004 Edition STP
802.1w RSTP
802.1s MSTP
BPDU Filtering
Root Restriction
802.3ad Link Aggregation Max. 5 groups per device/8 ports per group
Port Mirroring One-to-One
Many-to-one
Flow-based Mirroring
VLAN Maximum 4K Static VLAN Groups
IEEE Standards 802.1Q Tagged VLAN, 802.1v Protocol-based VLAN
GVRP Maximum 255 Dynamic VLAN Groups
QoS: CoS 802.1p Class of Service
QoS: Queues 8 Queues
QoS: Queue Handling Strict
Weighted Round Robin (WRR)
QoS: Bandwidth Control Port-based (Ingress/Egress, min. granularity 512Kbps)
Flow-based (Ingress, min. granularity 64Kbps)
QoS: CoS based on Switch Port
802.1p Priority Queues
VLAN ID
MAC Address
IPv4/IPv6 Address
DSCP
TCP/UDP Port Number
Protocol Type
IPv6 Traffic Class
IPv6 Flow Labe
User-Defined Packet Content
Access Rules Up to 200 Access Rules
ACL based on 802.1p Priority
VLAN ID
MAC Address
IPv4/IPv6 Address
DSCP
Protocol Type
TCP/UDP Port Number
IPv6 Traffic Class
IPv6 Flow Label
User-defined Packet Content
ACL Time-based ACL
CPU Interface Filtering Yes
Security: SSH Version 2
Security: SSL Version 1/2/3
Security: Port Up to 64 MAC Addresses per Port
Security: Traffic Control Broadcast/Multicast/Unicast
Security: Traffic Segmentation Yes
Security: IP-MAC-Port Binding Support 512 address binding entries per device
Support ARP/ACL Mode
Security: D-Link Safeguard Engine Yes
Security: Microsoft NAP Supports IPv4/IPv6
AAA: 802.1X Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
AAA: Web-based Access Control (WAC) Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
AAA: MAC-based Access Control (MAC) Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
AAA: Guest VLAN Yes
AAA: RADIUS Authentication/Accounting
AAA: TACACS+ Authentication
Management Web-based GUI (Supports IPv4/IPv6)
Command Line Interface (CLI)
Telnet (Supports IPv4/IPv6)
TFTP Client (Supports IPv4/IPv6)
XModem
ZModem
SNMP v1/v2c/v3 (Supports IPv4/IPv6)
SNMP Trap
System Log
RMON v1
Supports 1,2,3,9 groups
RMON v2
Supports ProbeConfig group
BootP/DHCP Client
DHCP Auto-Configuration
DHCP Relay
DHCP Relay Option 82
Dual Image
Dual Configuration
CPU Monitoring
SNTP
ICMPv6
IPv6 Neighbor Discovery
D-Link Green Power Saving Mode
Link Down Status
Cable Length Detection
Compliant with RoHS 6
OAM Cable Diagnostics
MIB/IETF Standard 1 RFC1213 MIB-II, RFC1493 Bridge MIB, RFC1907 SNMPv2 MIB, RFC1757, 2819 RMON MIB, RFC2021, RMONv2 MIB, RFC1643, 2358, 2665 Ether-like MIB, RFC2674 802.1p MIB, RFC2233, 2863 IF MIB, RFC2618 RADIUS Authentication Client MIB, RFC2925 Ping & Traceroute MIB, D-Link Private MIB,
MIB/IETF Standard 2 RFC768 UDP, RFC783 TFTP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC854 Telnet, RFC951, 1542 BootP, RFC2068 HTTP, RFC2138 RADIUS, RFC2139, 2866 RADIUS Accounting, RFC2620 RADIUS Accounting Client MIB, RFC1492 TACACS, RFC1157 SNMPv1, RFC1901, 1908 SNMPv2c, RFC2570, 2575 SNMPv3
AC Input Power 100-240 VAC, 50-60 Hz
Ventilation Fanless
Power Consumption 20.9 Watts (Maximum)
Safety UL, CB Report
Noise Level OdB (fanless)
EMI FCC Class A, CE, VCCI Class A, C-Tick
Operating Temperature 32deg.F to 104deg.F (0deg.C to 40deg.C)
Storage Temperature -40deg.F to 158deg.F (-40deg.C to 70deg.C)
Humidity 5% - 95% Non-condensing
Dimensions (WxDxH) 11.02x7.09x1.73" / 280x180.08x43.94mm
