D-Link

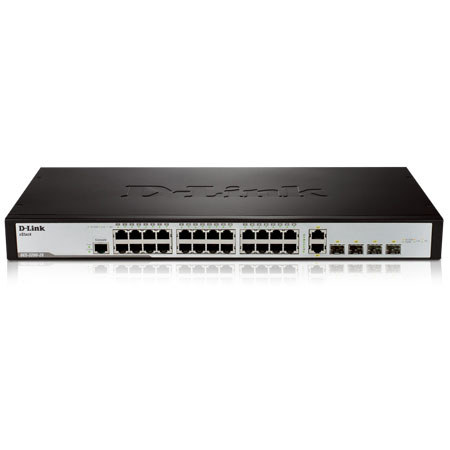

D-Link 24-Port Fast Ethernet Managed L2 Switch with 2GB SFP Ports and 2GB Combo BASE-T/SFP ports

SKU: DLS320028 MFR: DES-3200-28
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$286.56
Qty:

Add to Wishlist

About this item

The D-Link 24-Port Fast Ethernet Managed L2 Switch is designed for the metro ETTX, FTTX. It offers 24x 10/100 Mbps faster Ethernet ports, plus 2x combo Gigabit/ SFP ports and 2x dedicated SFP ports which provides up to 4 Gbps uplink bandwidth or dual Ethernet ring topology support. It supports 802.1X port-based/host-based access control, guest VLAN and RADIUS and TACAS+ authentication.

It also supports 802.1D-2004 edition, 802.1w and 802.1s Spanning Tree Protocols (STP). The switch is compatible with D-Link's D-View 6.0 software. This software is a network management system that allows for the central management of critical network characteristics.

What's Included With This Item

  • D-Link 24-Port Fast Ethernet Managed L2 Switch
  • RS232 Cable
  • Power Cord
  • Rubber Feet
  • Rackmount Kit with 2" (5.08cm) Brackets
  • 8" (20.32cm) Screws
  • D-View 6.0 CD
  • CD
  • Quick Installation Guide
  • D-Link Lifetime Limited Warranty

Key Features

  • Security and Availability: The 24 Port L2 Managed Switch supports 802.1X port-based/host-based access control, guest VLAN and RADIUS & TACAS+ authentication for strict access control over the network. IP-MAC-port binding feature allows administrators to bind source IP address with an associated MAC
  • Resilience and Quality of Service: It supports 802.1D-2004 edition, 802.1w and 802.1s STP. The STP allows you to configure the switch with a redundant backup bridge path. This guarantees transmission and reception of packets in the event of any failed switch on the network
  • Traffic and Bandwidth Control: The bandwidth control feature allows network administrators to define the throughput levels for each port in order to manage bandwidth. It also provides fine granularity to define the ingress/egress traffic limits down to 8 kbps segments
  • Multicast Applications: The 24 Port L2 Managed Switch provides IGMP snooping to reduce multicast traffic and to optimize network performance. The MLD snooping feature minimizes multicast IPv6 packets at the port level to conserve network bandwidth
  • Management Capabilities: It supports standard management protocols such as SNMP, RMON, Telnet, SSH/SSL security authentication and DHCP Relay Option 82. It also supports a web-based GUI for user-friendly interface and easy management
  • The D-Link Single IP Management (SIM) simplifies and speeds up management tasks. The SIM allows multiple switches to be configured, monitored and maintained from any workstation running a web browser through one unique IP address. This switch also works with D-Link's D-View 6.0 software

Technical Specs

Interface 24 10/100BASE-TX
2 100/1000 SFP
2 Combo 10/100/1000 BASE-T or 100/1000 SFP
PoE Support No
Console Port RJ-45
Heat Dissipation 48.4 BTU per hour
Switching Capacity 12.8 Gbps
63-Byte Packet Forwarding Rate 9.5 Mpps
MAC Address Table-Size 16K Entries
SDRAM for CPU 128 MB
Packet Buffer 1.5 MB
Flash Memory 32 MB
Jumbo Frame 12kb
LEDs Power (Per Device)
Console (Per Device)
Link/Activity/Speed (Per Port)
Acoustic
0 dB at low speed
Heat Dissipation
48.4 BTU per hour
Power Input 100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply
Max Power Consumption 14.2 watts
Ventilation Fanless
Power Surge Protection All Ethernet ports support IEC61000-4-5 10/700us 6 KV surge protection
Operating Temperature 23deg.F to 112deg.F (-5deg. to 50deg.C)
Storage Temperature -40deg.F to 158deg.F(-40deg. to 70deg.C)
Operating Humidity 10% to 90% non-condensing
EMI FCC Class A
CE Class A
VCCI
Class AI
C-Tick
Safety CE LVD
UL/cUL
CB
3rd Party Certifications MEF 21, IPv6 Ready Logo
MTBF 668,867 hours
Stackability Virtual Stacking: D-Link Single IP Management, Up to 32 units per Virtual Stack
L2 MAC Address Table: 8k
Flow Control:
802.3x Flow Control
HoL Blocking Prevention
Loopback Detection
Port Mirroring:
Supports 1 Mirroring group
Supports One-to-One, Many-to-One, Flow-based (ACL) Mirroring
Ethernet Ring Protection Switching (ERPS)
L2 Protocol Tunneling
Spanning Tree
802.1D
BPDU Filtering
802.1w RSTP
Root Restriction
802.1s MSTP
802.1Q-2005 MSTP
Link Aggregation Max. 14 groups (8 ports per group)
Compliant with 802.1AX (formerly 802.3ad)
L2 Multicasting
IGMP Snooping:
IGMP v1/v2 Snooping, IGMP v3 awareness
Supports 1K groups
Port/Host-based IGMP Snooping Fast Leave
Limited IP
Up to 24 IGMP filtering profiles, 128 ranges per
MLD Snooping:
MLD v1, MLD v2 awareness
Supports 1K groups
IGMP Authentication
VLAN 802.1Q Tagged
VLAN Group: Max. 4K
Port-based VLAN
MAC-based
GVRP: Max. 255 dynamic
802.1v Protocol VLAN
VLAN Trunking
Asymmetric VLAN
Double VLAN (Q-in-Q):
Port-based Q-in-Q
Selective Q-in-Q
ISM VLAN
VLAN Translation
L3 Features
Gratuitous ARP
Quality of Service (QoS) 1 Port-based Bandwidth Control: Ingress/Egress, min. granularity 8kbps)
Flow-based Bandwidth Control:(Ingress, min. granularity 8 kbps))
Per egress queue Bandwidth Control
4 queues per port
802.1p
Queue Handling:
Strict Priority
Weighted Round Robin (WRR)
Strict +
Remark 802.1p Priority Tag
Remark ToS/DSCP
Bandwidth
Flow
Time-based QoS
Quality of Service (QoS) 2 CoS Based on:
Switch Port
VLAN
802.1p Priority Queues
MAC Address
Ether Type
IPv4/v6 Address
IPv6 Traffic Class
IPv6 Flow Label
TOS
DSCP
Protocol Type
TCP/UDP Port
User-defined packet content
Access Control List (ACL) Supports up to 1.5K Ingress access rules
ACL based on
802.1p Priority
VLAN ID
MAC Address
Ether Type
IPv4 Address
DSCP
Protocol Type
TCP/UDP Port Number
User-Defined Packet Content
IPv6 Address
IPv6 Flow Label
IPv6 Traffic Class
Time-based ACL
CPU Interface Filtering
Security SSH v2
SSL v1/v2/v3
Port Security
Up to 64 MAC addresses per port/VLAN
Broadcast/Multicast/Unicast Storm Control
Traffic Segmentation
D-Link Safeguard Engine
NetBIOS/NetBEUI Filtering
DHCP Server Screening
ARP Spoofing Prevention
BPDU Attack Protection
AAA Guest VLAN
RADIUS
TACACS+
XTACACS+
Trusted Host
RADIUS Accounting
Two-level User Account
802.1X Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
Identity-driven security policy assignment: QOS, VLAN
MAC-based Access Control (MAC) Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
Authentication Database Failover
Identity-driven security policy assignment: QoS, ACL, VLAN
Microsoft NAP (IPv4/v6) Supports 802.1x NAP
Supports DHCP NAP
Management 1 Web-based GUI (Supports IPv4)
Command Line Interface (CLI)
Telnet Server(Supports IPv4)
Telnet Client(Supports IPv4)
TFTP Client(Supports IPv4)
ZModem
SNMP v1/v2c/v3
SNMP v1/v2c/v3
SNMP Traps
System Log (Supports IPv4 Log
RMON v1:
Supports 1,2,3,9 groups
RMON v2:
Supports ProbeConfig group
Management 2 LLDP
BootP/DHCP Client
DHCP Auto-Configuration
DHCP Relay
DHCP Relay Option 12
DHCP Relay Option 82
Flash File System
Multiple Images
Multiple Configurations
CPU
Debug
SNTP
Password Recovery
Password Encryption
Trusted Host
Microsoft NLB (Network Load Balancing) Support
OAM Cable Diagnostics
802.3ah Ethernet Link OAM
Dying Gasp
802.1ag Connectivity Fault Management (CFM)
802.3ah D-Link Extension: D-Link Unidirectional Link Detection (DULD)
MIB RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
RFC 1157, 2571-2576 SNMP MIB
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1215 MIB Traps
RFC 1398, 1643, 1650, 2358, 2665 Ether-like MIB
RFC 1493 Bridge MIB
RFC 1757, 2819 RMON MIB
RFC 1907 SNMPv2
RFC 2021 RMONv2 MIB
RFC 2233, 2863 IF MIB
RFC 2618 RADIUS Authentication Client MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2674, 4363 802.1p MIB
RFC 2925 PING & TRACEROUTE MIB
RFC 4188 Bridge MIB
IETF Standard 1 RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792, 2463, 4443 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 Telnet
RFC 951, 1542 BootP
RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
RFC 1492 TACACS
RFC 1981 Path MTU Discovery for IPv6
RFC 2068 HTTP
RFC 2460 IPv6
RFC 2461, 4861 Neighbor Discovery for IPv6
IETF Standard 2 RFC 2462, 4862 IPv6 Stateless Address Auto Configuration
RFC 2463, 4443 ICMPv6
RFC 2464 IPv6 Ethernet and definition
RFC 2474, 3260 Definition of the DS field in the IPv4 and IPv6 Headers
RFC 2544 Benchmarking Methodology for Network Interconnect Devices
RFC 2571, 2572, 2573, 2574 SNMP
RFC 2866 RADIUS Accounting
RFC 2893, 4213 IPv4/IPv6 dual stack function
RFC 3513, 4291, IPv6 Addressing Architecture
Dimensions (WxDxH) 17.36x12.13x1.73" / 44.09x30.81x4.39cm
Rack-mount width: 19" / 48.26cm
1U Height
