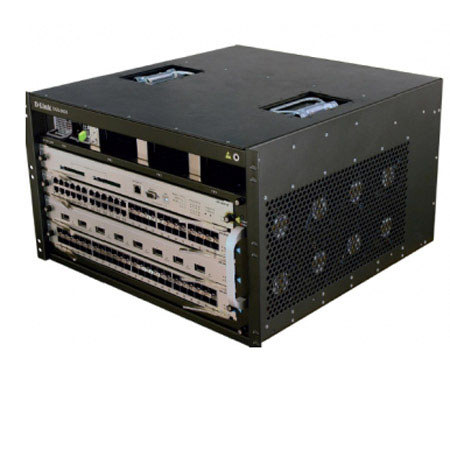

D-Link 4-Slot Layer3 Chassis Switch Starter Kit, Includes DGS-6604, DGS-6600-CM, DGS-6600-48P and DGS-6600-PWR

SKU: DLS6SK48 MFR: DGS-6604-SK-48P
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$5,743.20
Free Shipping
Qty:

Add to Wishlist

About this item

The D-Link 4-Slot Layer3 Chassis Switch Starter Kit is an intelligent and high-performance multi-layer LAN devices designed for the small and mid-size enterprise. It is ideal for deployment in environments that require uninterrupted running of network applications and a high level of performance, security and control. Featuring a flexible modular architecture and industry standard compliance, this switch provides scalable expansion and a high level of investment protection for businesses to deploy Gigabit and 10-Gigabit packet switching and routing for office networking and Ethernet-based Internet services to homes.

The DGS-6604-SK-48P is equipped with high-speed switch fabric and advanced software functions, including complete IPv6 support. These switches provide the performance, high availability and future-proof architecture suitable for applications of not just today, but those of the future.

What's Included With This Item

  • D-Link DGS-6604 4-Slot Chassis Base
  • DGS-6600-CM Control Module
  • DGS-6600-48P 48-Port 10/100/1000M Module
  • DGS-6600-PWR 850W AC Power Module
  • D-Link Warranty

Key Features

  • Flexible Modular Design: One open slot is reserved for a control module and the other three slots can be fitted with user-selectable port modules. In addition to these open slots, there are four slots for redundant backup power supplies and one slot for a replaceable fan module
  • High Performance: The DGS-6604 4-slot switch provides a switch capacity of up to 576 Gbps and system performance of up to 428.57 Mpps
  • High Port Densities: Port densities can reach 144 Gigabit or 24 10-Gigabit ports per 4-slot chassis. All port modules are hot swappable without the need to change any hardware or software settings
  • High Availability: The DGS-6604 provides 3+1 redundant backup power supplies (up to 3 active and 1 backup) and a hot swappable fan module to create a very highly available chassis-based device suitable for mission-critical network applications
  • Application Convergence: The DGS-6600 series combines high-speed hardware with software functions like prioritized traffic QoS and multicast routing to deliver the performance needed for real-time applications such as Internet telephony, streaming multimedia and IPTV
  • Complete IPv6 Support: The DGS-6600 series provides complete support for IPv6 to accommodate the potential huge increase in number of users and geographical needs of Internet expansion
  • Enterprise-Wide Security: The DGS-6600 series provides not only network access security but also protection against internal and external attacks. Access security is provided through comprehensive policy-based ACL, port security, IP-MAC-Port binding features and Defeat IP Scan

Technical Specs

Chassis Slots 4
Fixed Slots (for Control Modules) 1
Open Slots (for Port Modules) 3
Max. Switching Capacity 576 Gbps
Max. Packet Forwarding Rate 428.57M pps
10/100/1000BASE-T Ports 144
SFP Slots 144
10-Gigabit Ethernet XFP Slots 24
Supported Modules DGS-6600-48T, DGS-6600-48S, DGS-6600-DGS-6600-48TS, DGS-6600-48P1, DGS-6600-24SC2XG1, DGS-6600-8XG
CPU Engine DGS-6600-CM
Power Supply DGS-6600-PWR
Fan Module DGS-6600-FAN
L2 Features 1 MAC Address Table
32K per I/O module
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frame up to 9,732 Bytes
IGMP Snooping
IGMP v1/v2/v3 Snooping
Supports 2K Groups
IGMP Proxy
Port-based IGMP Snooping Fast Leave
Spanning Tree
802.1D STP
802.1w RSTP
802.1s MSTP
Root Restriction
L2 Features 2 Link Aggregation
Compliant with 802.1AX and 802.3ad
Max. 128 groups per device
8 ports per group
Supports cross-module trunk
Port Mirroring
Supports 3 mirroring groups
One-to-One
Many-to-One
Port mirroring for Tx/Rx/Both
RSPA
ERPS (Ethernet Ring Protection Switching)
MLD Snooping
MLD v1/v2 Snooping
Supports 2K groups
Host-based MLD Snooping Fast Leave
Loopback Detection
L2 Protocol Tunneling
VLAN VLAN Group
Max. 4K VLAN
GVRP
Max. 256 dynamic VLANs
802.1Q Tagged VLAN
802.1v Protocol VLAN
Port-based VLAN
MAC-based VLAN
Subnet-based VLAN
Double VLAN (Q-in-Q)
Port-based Q-in-Q
Selective Q-in-Q 2
L3 Features Max 4K IP interface
VRRP
IPv6 Tunneling
Manual
ISATAP
6to4
IPv6 Neighbor Discovery (ND)
IPv6 Ready Phase
Proxy ARP
Gratuitous ARP
L3 Routing 12K hardware routing entries shared by IPv4/IPv6
8K hardware L3 forwarding entries shared by IPv4/v6
256 static routing entries for IPv4/IPv6
Support ECMP /WCMP 2
Policy-based Routing
RIP
RIP v1/v2
RIPng (IPv6)
OSPF
OSPF v2
OSPF v3 (IPv6)
OSPF Passive Interface
Stub/NSSA Area
OSPF Equal Cost Route
BGP v4
BGP+ v4 (IPv6)
L3 Multicasting 2K hardware multicast groups
PIM-DM
PIM-DM v6
PIM-SM
PIM-SM v6
PIM Sparse-Dense Mode
IGMP v1/v2/v3
DVMRP v3
QoS (Quality of Service) 1 802.1p Class of Service (CoS)
8 queues
Queue Handling:
Strict Priority
Weighted Round Robin (WRR)
Strict+WRR
Deficit Round Robin (DRR)
WDRR
CoS Based on:
Switch Port
VLAN ID
802.1p Priority Queues
MAC Address
IPv4/v6 Address
DSCP
Protocol Type
QoS (Quality of Service) 2 IPv6 Traffic Class
IPv6 Flow Label
TCP/UDP Port
User-defined Packet Content
Supports following actions for flows:
Remark 802.1p Priority Tag
Remark TOS/DSCP Tag
Bandwidth Control
Committed Information Rate (CIR), min. granularity 64Kbps
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 64 Kbps)
Time-based QoS
Three Color Marker
trTCM
ACL (Access Control List) Ingress / Egress ACL
ACL Based on
802.1p Priority
VLAN ID
MAC Address
IPv4/v6 Address or IP Prefix
DSCP/IP Precedence
IP Protocol Type
TCP/UDP Port Number
Combination of the above
Time-based ACL
Security SSH v2
Port Security up to 16 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
DoS Attack Prevention
AAA 802.1X
Port-based Access Control
MAC-based Access Control
Dynamic VLAN Assignment
RADIUS Authentication for Switch Access
Guest
Web-based Access Control (WAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
MAC-based Access Control (MAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
