Doiron Design

Doiron Design LS120N On Camera Lighting System for Nikon SB-800 Speedlights

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$79.00 $4 per week
Free Shipping
Add to Wishlist

About the Doiron Design LS120N

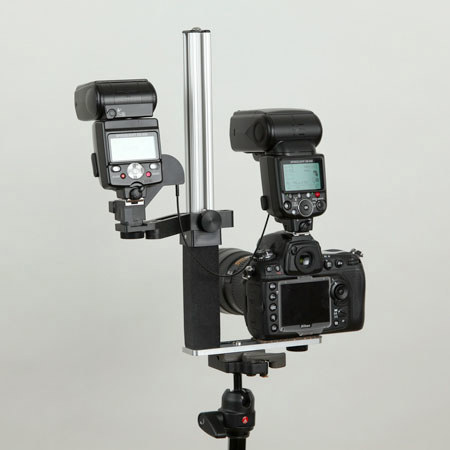

The Doiron Design LS120N lighting system is designed to combine the light output of a Nikon SB-910, SB-900, SB-800 or SB-700 as a "Master" mounted on camera with a second Nikon SB-800 Speedlight as a "Slave" mounted on the LS120N and direct it into an Interfit STR 125 Octobox to provide a fill light.

A speedring for the STR 125 with four fixed and four retractable rod mounting blocks is included to make assembling the STR 125 much easier than with the Interfit SGM100 Flex Mount for the Nikon SB-800, which is available from Interfit. The included speedring mounts directly onto the LS120N and not the SB-800.

A fiber optic link is included to ensure IR communication between the "Master" flash on camera and the "Slave" flash mounted on the LS120N. No sync or off camera shoe cords are required. With the "Master" flash set for A:B ratio, the ratio between bounce flash and fill flash can be controlled. In addition, with the "Slave" flash set to "A" group, same as the "Master", increased light output is available in the High Speed Sync mode. In this mode, both speedlights can be directed to the subject with or without modifiers.

Doiron Design LS120N Includes

  • Doiron Design LS120N On Camera Lighting System
  • Speedring for Mounting Interfit STR 125
  • Fiber Optic Link Suitable for Slave SB-800 Speedlight
  • Doiron Design Warranty

Doiron Design LS120N Features

  • Combine bounce flash with fill flash for better on camera lighting
  • Control the ratio of bounce flash to fill flash
  • Combine the power of 2 speedlights for High Speed Sync applications
  • A fiber optic link provides reliable communications between the on camera "Master" flash and the "Slave" flash mounted on the LS120N under both indoor and outdoor applications There is no line of sight requirement
  • An included speedring with 4 fixed and 4 retractable rod mounting blocks to make the Interfit STR 125 Octobox assembly and mounting easier
  • Can be handheld or mounted on a tripod with 1/4-20 threaded insert
  • No sync cords or off camera shoe cords required

Doiron Design LS120N Specifications

Speedlight Support Nikon SB-910, SB-900, SB800 or SB-700 as Master and SB-800 as Slave
Mounting 1/4-20 thread enables mounting on tripod
Dimensions (W x H x D) With speedring: 12.5 x 14.5 x 5" / 31.75 x 36.83 x 12.7cm
Weight 1.6 lb / 0.72kg (with speedring and Interfit STR 125 Octobox)
