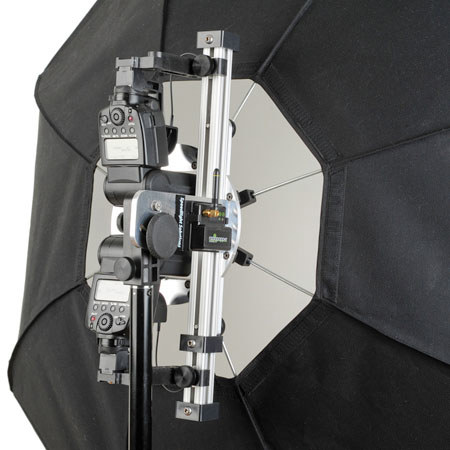

Doiron Design LS200C-SR2 Off Camera Lighting System For Canon & SR2 RadioPopper

SKU: DOILS200CSR2 MFR: LS200C-SR2
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Doiron Design LS200C-SR2

The Doiron Design LS200C-SR2 lighting system is designed to combine the light output of two Canon 580EX, 580EXII or 430EXII speedlites and direct it into an umbrella or softbox. For optimum performance, the new parabolic umbrellas require that the light source be centered and on axis with the umbrella shaft. The two flash heads are separated by only 3/4 of an inch where the umbrella shaft mount is located. This effectively allows the umbrella shaft to pass through the light source and permits the light to be properly focused.

When a softbox light modifier is desired, both flash heads output light through the center of the included speedring. The speedring permits quick mounting and removal of the softbox. The 14 mm wide panel in place on the Canon 580EXs, 580EXIIs or 430EXII, results in better light distribution across the surface of the softbox compared to a studio light with the optional internal baffle, with graduated density, in place. In fact, the Doiron Design LS200C-SR2 performs better without the use of the optional internal baffle in most applications.

A built-in receptacle for a RadioPopper PX receiver with 2 way splitter directs ETTL signals to both 580EX, 580EXII or 430EXII speedlites via fiber optics. A RadioPopper PX transmitter mounted to an on camera ST-E2 or master 580EX or 580EXII, provides full wireless ETTL capability without the requirement for line of sight. A single RadioPopper system provides a radio link between the on camera Canon ST-E2 or the master 580EX, or 580EXII and the LS200C-SR2.

A Pole mounting clamp capable of mounting (2) Canon CP-E4 compact battery packs, or (2) Quantum Turbo 2X2, or (2)Turbo3 battery packs is included. In addition, a shaft spacer is included that sets the proper focal length for Westcott no.4632, no.4633 and no.4634 7 ft. parabolic umbrellas and Flashpoint 7 ft. parabolic umbrella.

Doiron Design LS200C-SR2 Includes

  • Doiron Design LS200C Off Camera Lighting System
  • Speedring SR2
  • Shaft Spacer for Parabolic Umbrella
  • Pole Clamp for Battery Packs
  • Doiron Design Warranty

Doiron Design LS200C-SR2 Features

  • Built-in receptacle for RadioPopper PX receiver with 2 way splitter, directs signal to both 580EX, 580EXII or 430EXII speedlites via fiber optics. No need for a second RadioPopper PX receiver
  • A RadioPopper PX transmitter mounted onto a Canon ST-E2 speedlite transmitter or camera mounted 580EXII or 580EX provides a wireless ETTL solution, without line of sight requirements
  • Built-in umbrella mount supports the new 7 feet parabolic umbrellas
  • Shaft spacer sets umbrella to optimum distance from light source. Spacer Included
  • Quick mount speedring for mounting softboxes
  • Pole clamp for mounting (2) CP-E3 or CPE4 battery packs. (Included) May also be used to mount (2) Quantum Turbo 2X2 or (2) Quantum Turbo 3 with CZ cable
  • Supports off camera wireless High-Speed Sync without line of sight requirement to 1/8000 second

Doiron Design LS200C-SR2 Specifications

Speedlight Support Canon 580EXII, 580EX, 430EXII
Radio Link RadioPopper PX receiver, PX transmitter
Umbrella Support 8mm shaft, up to 7 ft. parabolic
Light Stand Mount 5/8 inch diameter stud
Spacer Maintain proper focal length for Westcott No. 4632, 4633, 4634 parabolic umbrellas
Battery Pack Mounting Included pole clamp supports mounting optional Canon CP-E3 or CP-E4 battery packs. Also supports mounting Quantum Turbo 2x2 or Turbo 3 battery packs with Quantum CZ flash cable
Softbox Support Speedring SR2, square or rectangular softboxes that require 4 flex rods
Dimensions (W x H x D) With Speedring: 10.5 x 17.8 x 8" / 26.67 x 45.21 x 20.32cm
Weight With Speedring: 3.3 lb / 1.49kg
