Doiron Design LS200N-SR1 Off Camera Lighting System for Nikon & RadioPopper

See all Doiron Design items
SKU: DOILS200NSR1 MFR: LS200N-SR1
Doiron Design LS200N-SR1: Picture 1 thumbnail Doiron Design LS200N-SR1: Picture 2 thumbnail Doiron Design LS200N-SR1: Picture 3 thumbnail Doiron Design LS200N-SR1: Picture 4 thumbnail Doiron Design LS200N-SR1: Picture 5 thumbnail
Made in USA

Our Price

$170.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Doiron Design LS200N-SR1: Picture 1 regular $170.00

About Doiron Design LS200N-SR1

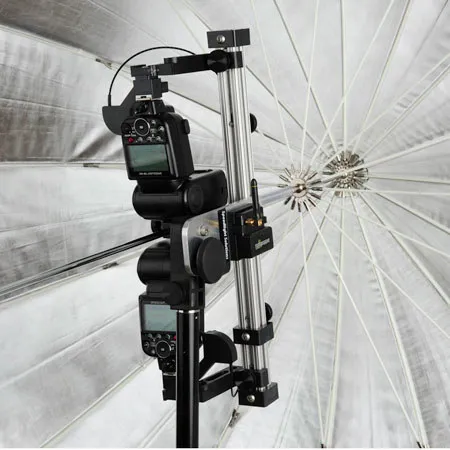

The Doiron Design LS200N-SR1 lighting system is designed to combine the light output of two Nikon SB-910, SB-900 speedlights and direct it into an umbrella or softbox. For optimum performance, the new parabolic umbrellas require that the light source be centered and on axis with the umbrella shaft. The two flash heads are separated by only 3/4 of an inch where the umbrella shaft mount is located. This effectively allows the umbrella shaft to pass through the light source and permits the light to be properly focused.

When a softbox light modifier is desired, both flash heads output light through the center of the included speedring. The speedring permits quick mounting and removal of the softbox. The 14 mm wide panel in place on the Nikon SB-910, SB-900 results in better light distribution across the surface of the softbox compared to a studio light with the optional internal baffle, with graduated density, in place. In fact, the Doiron Design LS200N-SR1 performs better without the use of the optional internal baffle in most applications.

A built-in receptacle for a RadioPopper PX receiver with 2-way splitter directs ETTL signals to both SB-910, SB-900 speedlights via fiber optics. A RadioPopper PX transmitter mounted to an on camera SU-800 or master SB-910, SB-900 provides full wireless ETTL capability without the requirement for line of sight. A single RadioPopper system provides a radio link between the on camera Nikon SU-800 or the master SB-910, SB-900 and the LS200N-SR1.

A Pole mounting clamp capable of mounting (2) Nikon SD-9 battery packs, or (2) Quantum Turbo 2X2, or (2) Turbo3 battery packs is included. In addition, a shaft spacer is included that sets the proper focal length for Westcott No. 4632, No. 4633 and No. 4634 7 feet parabolic umbrellas.

Doiron Design LS200N-SR1 Features

  • Built-in receptacle for RadioPopper PX receiver with 2 way splitter, directs signal to both SB-910, SB-900 speedlights via fiber optics. No need for a second RadioPopper PX receiver
  • A RadioPopper PX transmitter mounted onto a Nikon camera mounted SB-910, SB-900 provides a wireless ETTL solution, without line of sight requirements
  • Built-in umbrella mount supports the new 7 feet parabolic umbrellas
  • Shaft spacer sets umbrella to optimum distance from light source
  • Quick mount speedring for mounting softboxes
  • Pole clamp for mounting (2) SD-9 battery packs. (Included) May also be used to mount (2) Quantum Turbo 2X2 or (2) Quantum Turbo 3 with CZ cable
  • Supports off camera wireless High-Speed Sync without line of sight requirement to 1/8000 second

Doiron Design LS200N-SR1 Specifications

Speedlight Support
Nikon SB-910, SB-900
Radio Link
RadioPopper PX receiver, PX transmitter
Umbrella Support
8mm shaft, up to 7 ft. parabolic
Light Stand Mount
5/8 inch diameter stud
Battery Pack Mounting
Included pole clamp supports mounting optional Nikon CD-9 battery packs. Also supports mounting Quantum Turbo 2x2 or Turbo 3 battery packs with Quantum CKE or CKE2 flash cable
Softbox Support
Speedring SR1, octagonal softboxes that require 8 flex rods
Dimensions (W x H x D)
With Speedring: 10.5" x 17.8" x 8" / 26.6 x 45.2 x 20.3 cm
Weight
With Speedring: 3.3 lbs / 1.49 kg
Mfr #
LS200N-SR1
SKU
DOILS200NSR1
