DSC Labs DX-1 BackFocus Calibration Chart

DSC Labs
SKU: DSCCDX110W MFR: CDX1-10W

About DSC Labs DX-1

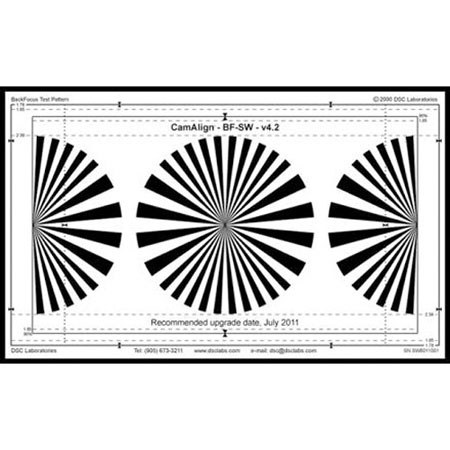

The DSC Labs DX-1 BackFocus Calibration Chart is a rear-lit chart designed for calibrating the resolution on your video camera. Featuring an updated version of the Siemens star pattern, the chart is designed for use with HDTV and digital film production. It offers high dynamic range with white and dense black unique bow-tie stars. Stars and demi-stars are also included for setting critical center and edge focus on your camera.

You can use the DX-1 BackFocus Calibration Chart as a precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals. In addition, it can be used to align multiple cameras using the color patches. The chart can be used for aligning different types of lighting such as quartz, HMI and fluorescent. It also features a maximum tolerance level of 5 CIE LxUxV units and an RMS maximum of 2 units.

DSC Labs DX-1 Features

  • Rear-lit chart - designed for calibrating the resolution on your video camera
  • Features an updated version of the Siemens star pattern
  • Designed for use with HDTV and digital film production
  • Offers high dynamic range with white and dense black unique bow-tie stars
  • Stars and demi-stars - included for setting critical center and edge focus on your camera
  • Can be used as precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals
  • Can be used to align multiple cameras using the color patches
  • Aligns different types of lighting such as quartz, HMI and fluorescent
  • Maximum tolerance level of 5 CIE LxUxV units
  • RMS maximum of 2 units

DSC Labs DX-1 Specifications

Application
Designed for calibrating the resolution on your video camera
