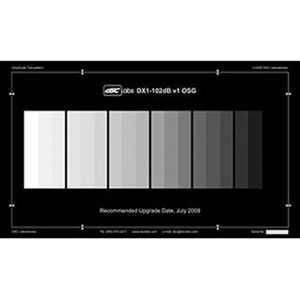

DSC Labs DX-1 102-Db 18 Step Grayscale Test Chart

DSC Labs
SKU: DSCCDX134W MFR: CDX1-34W

About DSC Labs DX-1

The DSC Labs DX-1 102-Db 18 Step Grayscale Test Chart is a rear-lit test chart designed for calibrating the resolution on your video camera. It features an 18 step true log pattern and a 17 f/stop dynamic range. The test chart can determine camera performance from the deepest white to jet black.

You can use the DX-1 102-Db 18 Step Grayscale Test Chart as a precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals. In addition, it can be used to align multiple cameras using the color patches. The chart can be used for aligning different types of lighting such as quartz, HMI and fluorescent. It also features a maximum tolerance level of 5 CIE LxUxV units and an RMS maximum of 2 units.

DSC Labs DX-1 Features

  • Rear-lit test chart - designed for calibrating the resolution on your video camera
  • 18 step true log pattern and a 17 f/stop dynamic range
  • Determines camera performance from the deepest white to jet black
  • Can be used as precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals
  • Aligns multiple cameras using the color patches
  • Aligns different types of lighting such as quartz, HMI and fluorescent
  • Maximum tolerance level of 5 CIE LxUxV units
  • RMS maximum of 2 units
  • Mounted in a shatter-proof, clearer than glass plastic

DSC Labs DX-1 Specifications

Application
Designed for calibrating the resolution on your video camera.
