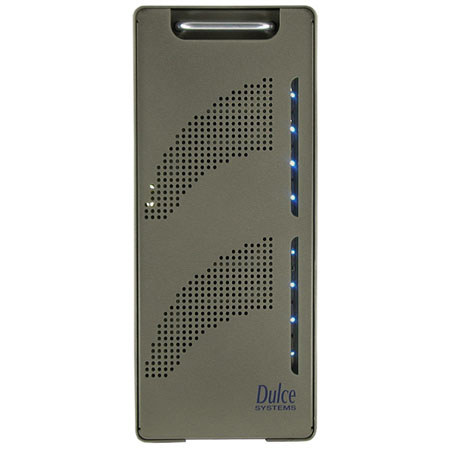

Dulce Systems PRO DQ g2 8TB Hard Drive Array, PCI Express Controller Card Included

See all Dulce Systems items
SKU: DU94208000 MFR: 942-0800-0
Dulce Systems g2: Picture 1 thumbnail Dulce Systems g2: Picture 2 thumbnail

About Dulce Systems g2

The 8TB PRO DQ Hard Drive Array from Dulce Systems delivers a fail-safe storage solution. As configured, the array offers an impressive 8TB of storage spread across 8 hard drives, all of which are hot swappable. A PCI Express controller card and cables are included.

The array can be configured in several configurations, including RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, and JBOD. The SATA 3Gb/s connection delivers sustained data transfer rates of up to 800MB/sec in RAID 0 and 690MB/sec in RAID 5. It is compatible with Windows, Mac, and Linux systems.

Dulce Systems g2 Features

  • Includes PCI Express x8 host adapter
  • Supports RAID 0, 1, 3, 5, 6 & JBOD
  • Plays ProRes 422, DV, DVCPRO HD, uncompressed SD/HD and 2k film formats
  • Compatible with Windows, Linux and Mac operating systems

Dulce Systems g2 Specifications

Capacity
8TB
Array Type
Hot-Swappable
Bays
Amount: 8x
Supports: 8x SATA 3Gb/s 7200rpm Hard Drives
Drive Types Supported
SATA 3Gb/s
Channels
Installed: 8x
Supported: 8x
Sustained Data Transfer Rate
RAID 0: 800MB/sec
RAID 3/5: 690MB/sec
RAID 6: 580MB/sec
Video Stream Playback
HD: 2x (RAID 0), 1x (RAID 3/5)
SD: 14x (RAID 0), 12x (RAID 3/5)
2K: 1x
ProRes 422: 15x (RAID 0), 12x (RAID 3/5)
Array Configuration
RAID 0, 1, 3, 5, 6, JBOD, Hot Spares
RAID
PCI Express Hardware RAID controller included
Desktop/Rackmount
Desktop
Status Indicator
None
Input and Output Connectors
2x Quad Channel SATA II
Fan
2x 120mm
Security
None
System Requirements
Operating System: Windows XP, 2000, 2003 Server, Vista; Mac OS X; Linux
Hardware: PCI Express x8 slot for card installation
Compatibility
AJA, Blackmagic, Apple Final Cut Studio, Adobe Premiere
Electrical Requirements
AC: 95-265 VAC, 47-63 Hz
Consumption: 200W
Environmental Requirements
Operating:
Temperature: 41-104 deg. F (5-40 deg. C)
Humidity: 5-80%, non-condensing
Storage:
Temperature: -40-158 deg. F (-40-70 deg. C)
Humidity: 5-95%, non-condensing
Dimensions (W x H x D)
5.8 x 14.7 x 11.5in / 14.7 x 37.3 x 29.2cm
Weight
26lbs / 11.8kg
