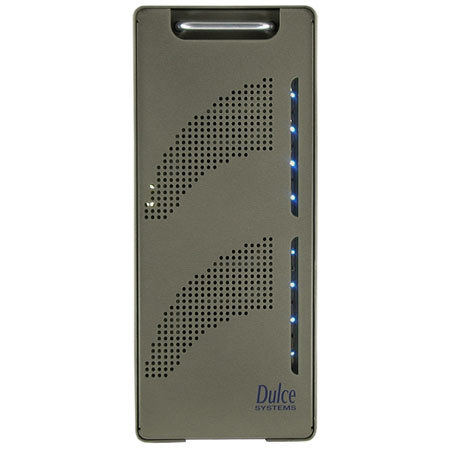

Dulce Systems Pro DQ xc 8TB Hard Drive Array, PCI Express x8 RAID Controller

SKU: DU94308000 MFR: 943-0800-0
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Expedited Shipping
Add to Wishlist

About this item

The 8TB PRO DQ xc Hard Drive Array from Dulce Systems is a Quad Channel SATA II hard drive array that is compatible with Mac and Windows computer systems. Included is a dedicated PCI Express x8 controller card, which allows you to configure the array as a RAID 0, 3, RAID 5, or RAID 6.

Each of the 8 enterprise-class drives in the array is a high-performance 7200rpm 3.5in SATA disk. When configured as a RAID 3 or 5, the PRO DQ xc is capable of sustained transfer rates of up to 690MB/sec. You can configure as a RAID 0 for 800MB/sec performance, or as a RAID 6 for enhanced data security at 580MB/sec. This allows you to work with multiple real-time streams of many different types of video, including ProRes HQ, DVCPRO HD, and HD 10-bit uncompressed.

What's Included With This Item

  • Dulce Systems Pro DQ xc 8TB Hard Drive Array
  • Controller Card
  • Data Cable
  • Power Cord
  • Dulce Systems 42 Months Limited Warranty

Key Features

  • RAID Protected: RAID 3, 5 or 6 protection schemes are the most cost-efficient approach to insuring workflow continuation
  • RAID Management GUI: A web browser accessed RAID Console provides quick and easy RAID management. The PRO DQ comes pre-configured for Mac OS X in RAID 5 protection mode, so it might not be necessary to access the RAID Console initially
  • Well Connected: The PRO DQ not only protects your data with the latest RAID options, it is also well connected to keep your data secured. The Quad Channel SATA II interface connectors used in the PRO DQ are made of metal construction and lock securely in place to prevent accidental removal
  • Tuck Away Handles: From time to time you might need to move the PRO DQ xc from one suite to another, or from studio to on-location. The built-in tuck away handles, located in the front and rear of the unit, allow for convenient mobility
  • All Metal Drive Tray: The PRO DQ xc is built with the all metal drive tray. As the result, the drives runs cool and provides for a more efficient cooling for the entire unit and it looks great with the collection of your high-end video gear
  • Unlimited Expansion: The PRO EX - a PCI-e Expansion Switch. It can support up to 7 PCI-e x8 compatible cards. Fill the PRO EX with several new PRO DQ or any combination of the Dulce's PCI-e based products or even a 3rd party RAID controller

Technical Specs

Capacity 8TB
Array Type Hot-Swappable
Bays 8x
Drive Types Supported 3.5in 7200rpm SATA II
Channels 4x
Sustained Data Transfer Rate RAID 0: 800MB/sec
RAID 3/5: 690MB/sec
RAID 6: 580MB/sec
Video Stream Playback ProRes HQ: 12
ProRes: 15
HD 10-bit Uncompressed: 2
HD 8-bit Uncompressed: 2
SD 10-bit: 11
SD 8-bit: 13
2k RGB: 1
2k Film: 1
Array Configuration RAID
RAID RAID 0, 3, 5, 6
Desktop/Rackmount Desktop
Status Indicator Web GUI
Input and Output Connectors 1x Quad Channel SATA II (mini-SAS)
1x RJ-45 Ethernet
Fan 2x
Security None
System Requirements Mac OS X 10.4, 10.5, 10.6; Windows XP (32/64-bit), Vista (32/64-bit), Server 2003 (32/64-bit), 2000 Server
Electrical Requirements AC: 120VAC
