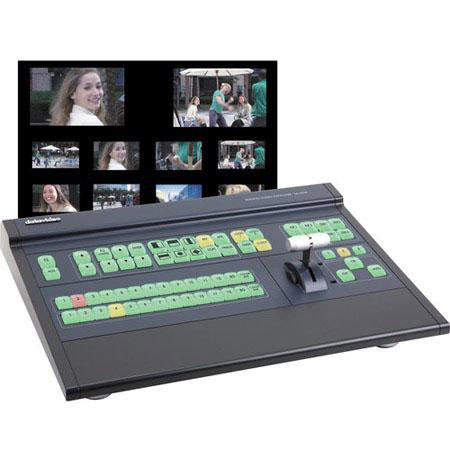

Datavideo SE-2800 8 Input HD Channel Digital Video Switcher with HD/SD SDI

SKU: DVSE28008 MFR: SE2800-8
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$6,000.00
Free Shipping
Qty:

Add to Wishlist

About the Datavideo SE-2800

The Datavideo SE-2800 8 Input HD Channel Digital Video Switcher is a multi-definition switcher designed for the event or activity that needs 8 HD or SD input sources. Being one of most flexible switching solutions, the SE-2800 is able to accept eight or twelve total inputs in varying combinations of Interlaced HD/SD-SDI, HDMI and CV sources. (Up-conversion not supported). Use all eight BNC inputs for HD/SD-SDI or CV, or use six BNC inputs and two HDMI inputs. This 8-input switcher is even upgradable to 12 inputs for even more versatility.

Datavideo SE-2800 Includes

  • Datavideo SE-2800 8 Input HD Channel Digital Video Switcher with HD/SD SDI
  • Power Adapter and Cable
  • Instruction Manual
  • Datavideo 1 Year Warranty

Datavideo SE-2800 Features

  • Supports 12 HD or SD Inputs in a variety of configuration: HD Mode: 8 HD-SDI, 6 / 9 HD-SDI + 2 / 3 HDMI & SD Mode: 8 SD-SDI, 4 / 6 SD-SDI + 4 / 6 composite video (CVBS), 4 / 6 SDI +2 / 3 HDMI + 2 / 3 CVBS
  • 3 SDI Outputs assignable to AUX, Program (PGM), Preview (PVW)or PGM clean - Built-in SD down-scaler on CH-3 SDI output
  • 2 HDMI outputs for multiview monitoring
  • Audio I/O: Input: 4 analogue balanced XLR, Output: 2 analogue balanced XLR. Supports embedded audio SDIoutput from 4-CH XLR Audio input
  • Two DSK, supports Key and Fill
  • Cut, Mix and Wipe with borders
  • Clock on screen
  • Countdown counter on multiscreen
  • Two PIP displays with user-defined borders
  • Tally, GPI interface and RJ45 for firmware upgrade
  • DC 12V operation voltage, available for mobile use

Datavideo SE-2800 Specifications

Video Format SD(480/59.94i,576/50i)
HD (1080/59.94i, 1080/50i)
Video Processing Y:Cb:Cr, 4:2:2, 10-bit
SMPTE 259M-C (270 Mbps, 525/625 component video)
SMPTE 292M (1.485, 1.485/1.001 Gbps)
Genlock Mode Blackburst or tri sync input
Remote Control RS-232
Operating Temperature 0deg.C-50deg.C
