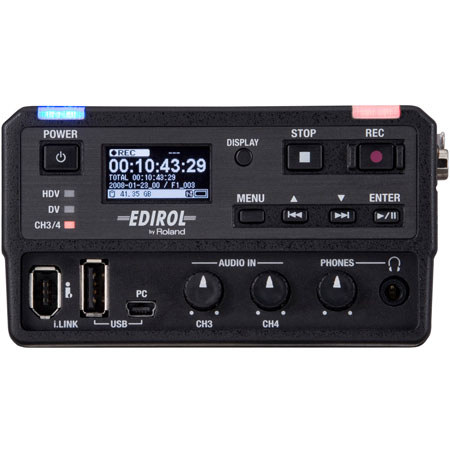

Edirol/Roland F-1-ACC1 HDV/DV Video Field Recorder Kit
Edirol

Edirol/Roland F-1 HDV and DV Capture Video Field Recorder KIT With , V-Mount Battery Camera Kit and Extra 120GB Removable Hard Drive Included

SKU: EDF1VHDMK MFR: F-1-ACC1
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$1,597.00 Regular Price
- $98.00Adorama Kit Discount

Our Price

$1,499.00
Free shipping
Qty:

Add to Wishlist

About this item

The Edirol/Roland F-1 provides reliable, high quality capture of both video and audio when you need it most: out in the field where every shot counts. The "Field Oriented" design concept of this Recorder will streamline your video production workflow. Being "Field Oriented" is at the heart of the EDIROL F-1 design. Features like a shock-resistant floating HDD, two channels of additional audio inputs, multiple power supply options, remote control via LAN, on-site review of clips, unlimited file size and a number of additional innovative functions will streamline your recording and post-production activities.

The EDIROL F-1 is the ideal addition for any videographer or producer wanting to accelerate their workflow by capturing HDV or DV directly to a hard drive in the field. With two additional audio inputs, no file size limitation, removable hard drive and multiple power options, the F-1 can be used anywhere and in a variety of applications.

What's Included With This Item

  • Edirol/Roland F-1 Video Field Recorder
  • Owner's Manual
  • AC Adaptor (PSB-1U)
  • Power Cord
  • Conversion Cable (AC Adaptor 4pin XLR type connector)
  • Removable Storage (F1-HD120 120 GB Hard Disk Drive 2 Pieces )
  • Battery Case
  • USB Cable (Y type with power supply)
  • V-Mount Battery Kit
  • Ferrite Core x 4
  • Edirol/Roland 1 Year Limited Warranty

Key Features

  • High-Capacity HDV/DV capture simplifies and accelerates your workflow: The i.LINK connection to your camera provides easy capture of HDV or DV. Begin editing immediately directly off the HDD or enjoy smooth and speedy transfer of recorded data to your NLE system.
  • Removable HDD provides hours of recording in the field: A removable hard drive is the recording media inside the F-1. Remove the full drive and editing or transfer can begin immediately by simply connecting it to your computer via bus-powered USB.
  • Seamless Recording up to full HDD Capacity: The NTFS file format allows recording up to the maximum disk capacity without a file limitation of 2GB or 4GB. You can record up to 9 straight hours with the 120GB HDD.
  • HDD: To protect the disk from the inevitable rigors of field use, the F-1's removable hard drive employs full floating HDD mount architecture with shock absorbent rubber that effectively dampens vibrations and shocks.
  • Two Independent Audio Channels of Hi-Quality Linear PCM: The F-1 is equipped with two independent analog audio inputs. This enables simultaneous recording of stereo audio from an audio mixer/console or two microphones.
  • Phantom Power Supply: The F-1's built-in phantom power supply for sensitive condenser mics provides further improvement of your audio tracks.
  • Three Types of Power Supply Options: The F-1 can be operated with 3 types of power: AC adaptor, external battery and AA batteries. The AA battery power pack supplies seamless failover of power in the event your external battery or AC supply should weaken or fail.
  • Thumbnail Display on External Monitor: Recorded clips can be shown as thumbnails on an external computer monitor using the 15-pin D-Sub output jack of the F-1.This enables last minute previewing to prevent "missed-shots" without the need to connect to a computer.
  • Quick Backup of Recorded Data to USB Devices: The F-1's USB port provides on-site connection to USB devices like flash memory or external hard drives for quick backups. Copy time is shorter than real-time, offering speedy transfers of recorded data to your editing suite.
  • Recorded Data can be copied via LAN: The F-1's LAN port provides an Ethernet connection to your home or office network. The data in the F-1's HDD can be copied over the network to multiple computers with simplicity and ease.
  • Remote Control via LAN enables Multi-Camera Shoots with Minimal Staff: A PC or Mac installed with the dedicated net control software* can remotely control the record Start/Stop functions as well as the menu settings of an F-1 in a remote location.
  • Free and Convenient F-1 Utility Software: Free downloadable software with 2 modes for quick clip preview and cutting.

Technical Specs

Video Recording Format HDV (.m2t), DV (.dv)
Audio Recording Format WAV (supported BWF)
Audio Recording Bit Depth 16 bit
Audio Recording Sampling Rate 48 kHz
Audio Control Switch Gain (MIC/-20dB/LINE), Phantom Power +48V (ON/OFF)
Audio Control Volume Ch3 Input, Ch4 Input, Headphones
Audio Input Impedance 4 k ohms
Headphones Output Impedance 16 ohms
Headphones Output Level 45 mW
Media Hard Disk Drive (120 GB) Removable unit
Max Recording time about 9 hours(when using F1-HD120 120 GB, no audio, HDV 1080i or DV recording)
about 12 hours (when using F1-HD120 120 GB, no audio, HDV 720p recording)
Input/Output Connectors (Front) i.LINK Connector: 6-pin Connector (conforms to IEEE1394)
USB A Type Connector (For USB Storage device, USB Mouse)Supports 2.0 High-Speed
USB mini B Type Connector (For Computer) Supports 2.0 High-Speed
Input/Output Connectors (Right Side) Display Output (Analog RGB, 800x600 fixed resolution):15-pin mini D-sub Type Connector
Audio Input (Ch3,Ch4): 3-pin XLR Type Connector x 2
Power: 4-pin XLR Type Connector
Input/Output Connectors (Left Side) LAN Connector (Ethernet 10/100Base-Tx): RJ45 Type Connector
Display 128 x 64 dots Graphic (OLED)
Power Supply DC 9 V (AC Adaptor) 9-16V 2.0A/HR15/51 x 8 or LR6 (AA) x 8
Max Operation time About 2 hour (Nickel Metal Hydride Battery)
About 30 minutes (Alkaline Dry Battery)
About 10 hour (External, IDX Endura10 Li-Ion Battery)
Current Draw 1,500 mA
Operation Temperature +5 to +40 degrees Celsius
+41 to +104 degrees Fahrenheit
Dimensions 4-3/8 (W) x 7-1/6 (D) x 2-3/8 (H) inches(111 (W) x 179 (D) x 61 (H) mm)
Weight 860 g / 1 lb 91 oz (including HDD, excluding AC Adaptor and batteries)
Warranty Edirol/Roland 1 year limited warranty
