Edirol / Roland

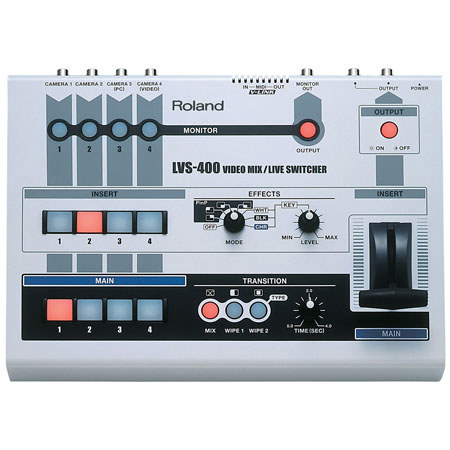

Roland LVS-400 Professional 4 Channel Video Mixer, NTSC or PAL Video Format, 1500mA Current Draw, 75 ohms Impedance

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist

Protect your investment

About the Edirol / Roland LVS-400

The Roland LVS-400 can be connected with any type of video feed such as video cameras, video decks and PC's. You can switch images from live cameras rhythmically, make a presentation with images from a PC and use the LVS-400 in many different situations. For use in a darkened venue, the LVS-400 features simple and intuitive interfaces such as large back-lit buttons and an easy-to-use video fader. The Monitor Output function can preview 4 different images individually and immediately in the preview monitor letting you safely check your inputs without affecting the output images.

The LVS-400 is equipped with 3 different types of composition effects; the 4 types of Picture in Picture (inserts a small image into the main image), Chroma Key and Luminance Key (white/black). These let you insert graphics and titling from a PC into the main image in real time. There are also 3 types of transition effects Mix, Wipe 1, which switches from left to right and Wipe 2 that expands from the center.

The LVS-400 lets you manipulate DV quality images with fully digital processing. The two independent frame synchronizers give you stable switching with no noise or jitter - no matter how unstable your analog video sources are. For professional use, the LVS-400 is equipped with BNC composite video inputs and outputs to prevent cables being accidently pulled out. In addition, the V-LINK connection, via MIDI, lets you synch the video with live performance of music.

Edirol / Roland LVS-400 Includes

  • Roland LVS-400 Professional 4 Channel Video Mixer
  • 4 x BNC to RCA Adapters
  • AC Power Adapter
  • Roland Warranty

Edirol / Roland LVS-400 Features

  • Multi-System: This mixer can be programmed to accepted NTSC or PAL video signals
  • Picture In Picture: Picture in Picture transitions can be programmed to position in various parts of the frame
  • Key Functions: Keys can be programmed to operate in a luminance or chroma superimpose
  • V-Link: The MIDI connections operate with other Roland equipment to create programs synchronizing audio and video for presentation applications

Edirol / Roland LVS-400 Specifications

Video Format NTSC or PAL (ITU601)
Video Sampling Rate 13.5MHz, 4:2:2 (Y: B-Y: R-Y), 8-bit Frame Synchronizer x 2
Video Input S-Video: 4-pin mini DIN type x 4
Video (composite): BNC type x 4
(If S-Video is simultaneously, S-Video takes priority)
Video Output S-Video: 4-pin mini DIN type x 1
Video (composite): BNC type x 2
Monitor Output Video (composite): BNC type x 1
Input/Output Level and Impedance S-Video: Luminance signal=1Vp-p, 75 ohms, Chrominance signal=0.286Vp-p, 75 ohms (NTSC), 0.3Vp-p, 75 ohms (PAL)
Composite: 1Vp-p, 75 ohms
Control Connectors MIDI IN: 5-pin DIN type
MIDI OUT: 5-pin DIN type
Transition Effects Mix (Dissolve), Wipe 1, Wipe 2
Composite Effects Picture-in-Picture (4 types), Luminance Key (2 types), Chroma Key
Power Supply DC 9V (AC Adaptor)
Current Draw 1500mA
Dimensions (W x H x D) 14.4 x 9.8 x 3.9" / 36.5 x 25 x 10cm
Weight 6.2 lbs / 2.8 kg
