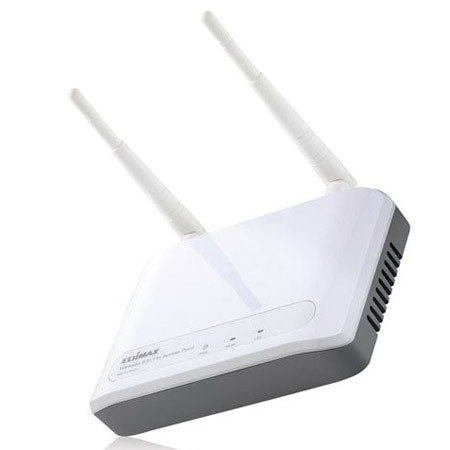

Edimax EW-7416APN V2 Wireless 802.11n Range Extender / Access Point

SKU: EDMEW7416AV2 MFR: EW-7416APN V2.0
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist In Stock

About the Edimax EW-7416APN

Edimax EW-7416APN V2 Wireless Access Point act as a bridge between the wired Ethernet and the 2.4GHz wireless IEEE 802.11b/g/n, this wireless access point let your wireless client stations access both the wired and the wireless network nodes.

Edimax EW-7416APN Includes

  • Edimax EW-7416APN V2 Wireless 802.11n Range Extender / Access Point
  • CD (EZmax Setup Wizard, Multi-language Quick Installation Guide and User Manual)
  • Power Adapter
  • 3dBi Antenna
  • Accessory Kit
  • Quick Installation Guide
  • Edimax Warranty

Edimax EW-7416APN Features

  • The Universal Repeater function could extend the coverage and signal strength for the current wireless environment. This standardized function is compatible with other wireless APs and Routers
  • Except for the basic security control by ESSID and 64/128 bit key length WEP encryption, this access point also supports the advanced security features, like MAC access control, IEEE 802.1x authentication, TKIP, AES and hidden ESSID
  • You can configure this access point through the friendly Web user interface with a browser
  • Complies with the IEEE 802.11b/g and IEEE802.11n standards
  • Supports 2.400-2.4835GHz frequency band
  • High data rate up to 300Mbps network speed
  • Auto rate fallback in case of obstacles or interferences
  • Supports point-to-point and point-to-multi point bridge function
  • Supports WDS (Wireless Distributed System) repeater mode
  • Supports Universal Repeater mode
  • Supports AP Client mode
  • Supports four sets of ESSID to group the different wireless networks
  • Supports roaming link integrity
  • Provides 64/128 bit key length WEP data encryption
  • Supports WPA, WPA2 security enhanced function (pre-shared key, 802.1x, TKIP, AES)
  • Supports WPS (Wi-Fi Protected Setup) function
  • Provides MAC access control
  • Provides hidden SSID function
  • Supports Web-based configuration
  • Firmware upgradeable via Web browser

Edimax EW-7416APN Specifications

Hardware Interface 2x3dBi Dipole Antenna
Reset/WPS button
LED indicators: Power, WLAN, WAN
Chipset Ralink RT3052
Power Adapter 5VDC, 1A
Output Power 11n:15dBm ± 1dBm, 11g:15dBm ± 1dBm, 11b:17 ± 1dBm
Memory 4 MB Flash
Security 64/128-bit WEP, WPA and WPA2
MAC Filter
LAN Port 10/100M UTP Port x 1
Humidity & Temperature Max. 10-90% (Non Condensing)
10 -40deg.C
System Requirements Windows 95/98/ME/2000/XP/Vista
Certifications CE, FCC
Dimensions 30 x 127 x 96 mm / 1.18 x 5 x 3.77"
